| Deublin Teilenummer | Versorgungs anschluss | Rotor anschluss | Gesamtlänge | Gehäuse durchmesser | Maximaler Druck und Medien | Maximale Drehzahl | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
|
1109-041-192 | M16x1.5 LH, 16.025 mm pilot | M16x1.5 LH, 0.631" pilot | 53.5 mm | 2.106" |
103.4 bar Kühlmittel 10 bar Minimalmengenschmierung (MMS) |
1500 PSI Kühlmittel 150 PSI Minimalmengenschmierung (MMS) |
20000 RPM | |||
|
1109-021-188 | G 3/8"-19 | M16x1.5 LH, 17.993 mm pilot | M16x1.5 LH, 0.708" pilot | 129 mm | 5.079" | 53.5 mm | 2.106" |
103.4 bar Kühlmittel 10 bar Minimalmengenschmierung (MMS) |
1500 PSI Kühlmittel 150 PSI Minimalmengenschmierung (MMS) |
20000 RPM |
|
1109-053-188 | G 3/8"-19 | M16x1.5 LH, 17.993 mm pilot | M16x1.5 LH, 0.708" pilot | 135 mm | 5.315" | 53.5 mm | 2.106" |
103.4 bar Kühlmittel 10 bar Minimalmengenschmierung (MMS) |
1500 PSI Kühlmittel 150 PSI Minimalmengenschmierung (MMS) |
20000 RPM |
|
|
1109-041-192 | 3/8"-19 PT | M16x1.5 LH, 16.025 mm pilot | M16x1.5 LH, 0.631" pilot | 129 mm | 5.079" | 53.5 mm | 2.106" |
103.4 bar Kühlmittel 10 bar Minimalmengenschmierung (MMS) |
1500 PSI Kühlmittel 150 PSI Minimalmengenschmierung (MMS) |
20000 RPM |
|
|
1109-053-188 | G 3/8"-19 | M16x1.5 LH, 17.993 mm pilot | M16x1.5 LH, 0.708" pilot | 135 mm | 5.315" | 53.5 mm | 2.106" |
103.4 bar Kühlmittel 10 bar Minimalmengenschmierung (MMS) |
1500 PSI Kühlmittel 150 PSI Minimalmengenschmierung (MMS) |
20000 RPM |
|
1109-011-192 | 3/8"-18 NPT | M16x1.5 LH, 16.025 mm pilot | M16x1.5 LH, 0.631" pilot | 129 mm | 5.079" | 53.5 mm | 2.094" |
103.4 bar Kühlmittel 10 bar Minimalmengenschmierung (MMS) |
1500 PSI Kühlmittel 150 PSI Minimalmengenschmierung (MMS) |
20000 RPM |
|

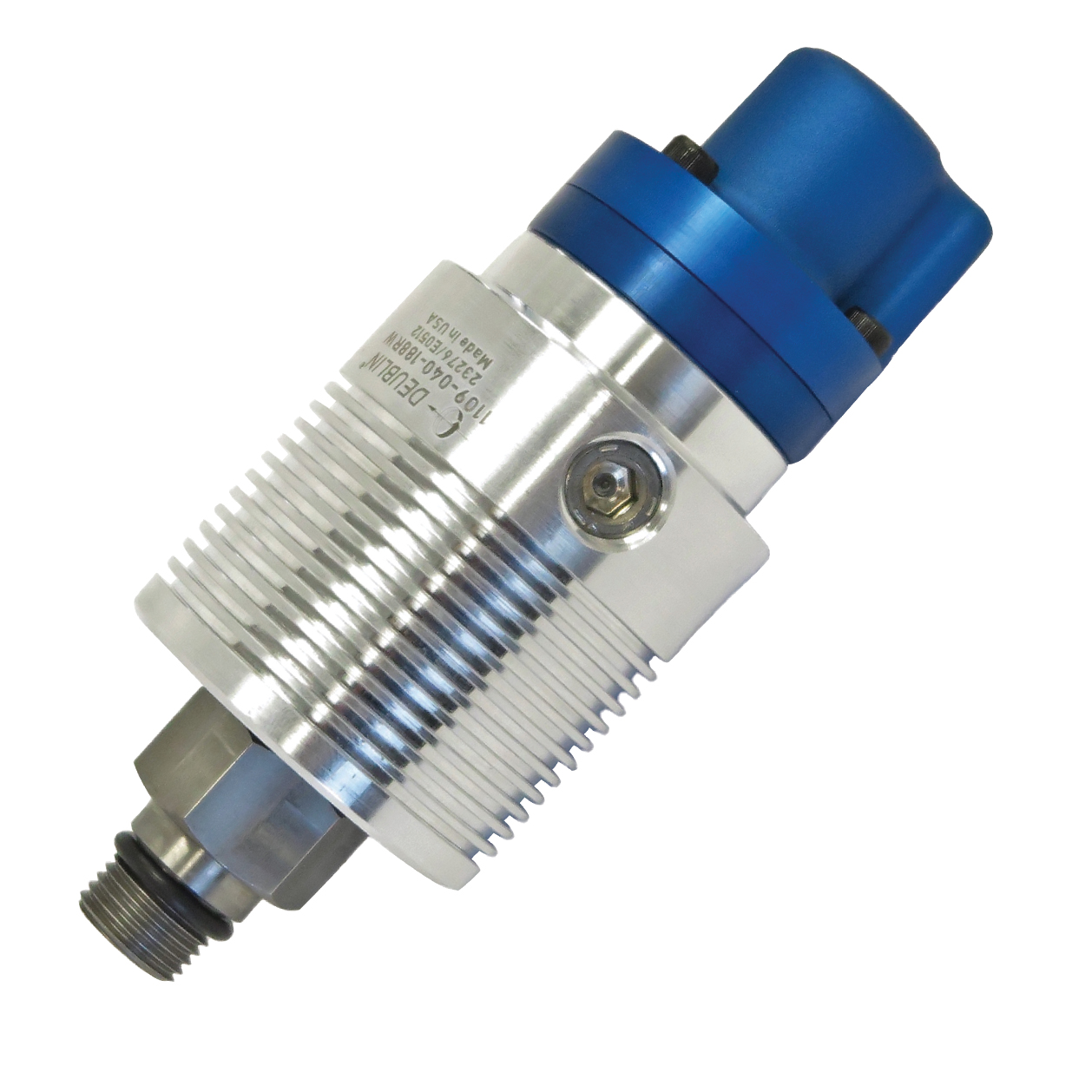

1109-040-188RW | 3/8"-19 PT | M16x1.5 LH, 17.993 mm pilot | M16x1.5 LH, 0.708" pilot | 135 mm | 5.315" | 53.5 mm | 2.106" |
103.4 bar Kühlmittel 10 bar Minimalmengenschmierung (MMS) |
1500 PSI Kühlmittel 150 PSI Minimalmengenschmierung (MMS) |
20000 RPM |
|
|
1109-011-188 | 3/8"-18 NPT | M16x1.5 LH, 17.993 mm pilot | M16x1.5 LH, 0.708" pilot | 129 mm | 5.079" | 53.5 mm | 2.106" |
103.4 bar Kühlmittel 10 bar Minimalmengenschmierung (MMS) |
1500 PSI Kühlmittel 150 PSI Minimalmengenschmierung (MMS) |
20000 RPM |
|
|

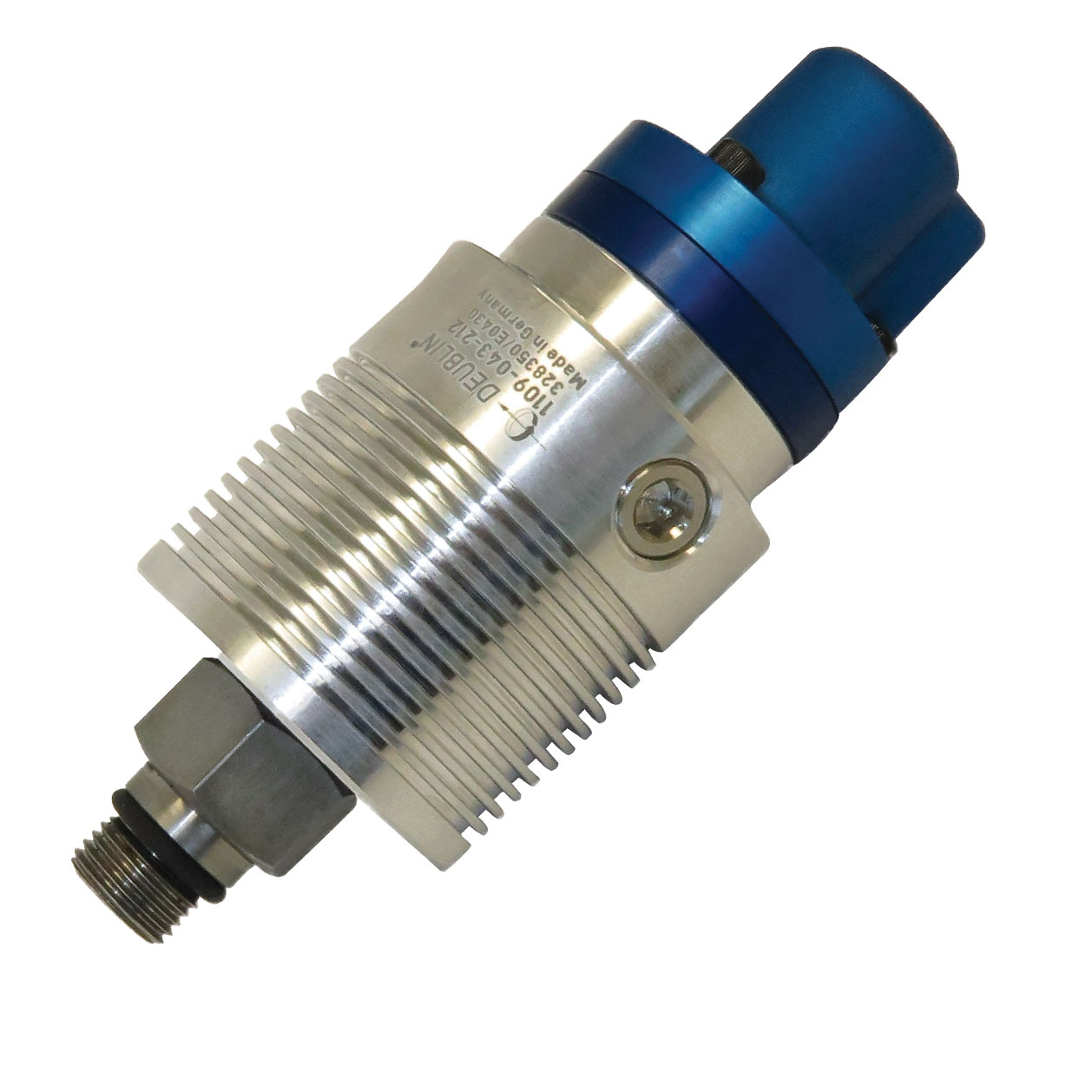

1109-043-412 | 1/4"-19 PT | M16x1.5 LH, 17.993 mm pilot | M16x1.5 LH, 0.708" pilot | 130 mm | 5.118" | 53.5 mm | 2.106" |
140 bar Kühlmittel 10 bar Minimalmengenschmierung (MMS) |
2030 PSI Kühlmittel 150 PSI Minimalmengenschmierung (MMS) |
20000 RPM |
|
1109-044-412 | 1/4"-19 PT | M16x1.5 LH, 17.993 mm pilot | M16x1.5 LH, 0.708" pilot | 124 mm | 4.882" | 53.5 mm | 2.106" |
140 bar Kühlmittel 10 bar Minimalmengenschmierung (MMS) |
2030 PSI Kühlmittel 150 PSI Minimalmengenschmierung (MMS) |
20000 RPM |
|
|
1109-011-165 | 3/8"-18 NPT | 5/8"-18 UNF LH, 16.649 mm pilot | 5/8"-18 UNF LH, 0.655" pilot | 129 mm | 5.079" | 53.5 mm | 2.106" |
103.4 bar Kühlmittel 10 bar Minimalmengenschmierung (MMS) |
1500 PSI Kühlmittel 150 PSI Minimalmengenschmierung (MMS) |
20000 RPM |
|
|
1109-013-196 | 1/4"-18 NPT | 5/8"-18 UNF LH, 16.649 mm pilot | 5/8"-18 UNF LH, 0.655" pilot | 135 mm | 5.315" | 53.5 mm | 2.106" |
140 bar Kühlmittel 10 bar Minimalmengenschmierung (MMS) |
2030 PSI Kühlmittel 150 PSI Minimalmengenschmierung (MMS) |
20000 RPM |
|
|
1109-097-212 | M16x1.5 LH, 17.993 mm pilot | M16x1.5 LH, 0.708" pilot | 53.5 mm | 2.106" |
140 bar Kühlmittel 10 bar Minimalmengenschmierung (MMS) |
2030 PSI Kühlmittel 150 PSI Minimalmengenschmierung (MMS) |
20000 RPM | |||
|
|
1109-097-212 | G 1/4"-19 | M16x1.5 LH, 17.993 mm pilot | M16x1.5 LH, 0.708" pilot | 135 mm | 5.315" | 53.5 mm | 2.106" |
140 bar Kühlmittel 10 bar Minimalmengenschmierung (MMS) |
2030 PSI Kühlmittel 150 PSI Minimalmengenschmierung (MMS) |
20000 RPM |
|
1109-041-188 | 3/8"-19 PT | M16x1.5 LH, 17.993 mm pilot | M16x1.5 LH, 0.708" pilot | 129 mm | 5.079" | 53.5 mm | 2.106" |
103.4 bar Kühlmittel 10 bar Minimalmengenschmierung (MMS) |
1500 PSI Kühlmittel 150 PSI Minimalmengenschmierung (MMS) |
20000 RPM |
|
1109-082-188 | 3/8"-19 PT | M16x1.5 LH, 17.993 mm pilot | M16x1.5 LH, 0.708" pilot | 129 mm | 5.079" | 53.5 mm | 2.106" |
103.4 bar Kühlmittel 10 bar Minimalmengenschmierung (MMS) |
1500 PSI Kühlmittel 150 PSI Minimalmengenschmierung (MMS) |
20000 RPM |
|
|
1109-765-650 | G 1/4"-19 | M16x1.5 LH, 17.993 mm pilot | M16x1.5 LH, 0.708" pilot | 135 mm | 5.315" | 53.5 mm | 2.106" |
140 bar Kühlmittel 10 bar Minimalmengenschmierung (MMS) |
2030 PSI Kühlmittel 150 PSI Minimalmengenschmierung (MMS) |
20000 RPM |
|
1109-040-188 | 3/8"-19 PT | M16x1.5 LH, 17.993 mm pilot | M16x1.5 LH, 0.708" pilot | 135 mm | 5.315" | 53.5 mm | 2.106" |
103.4 bar Kühlmittel 10 bar Minimalmengenschmierung (MMS) |
1500 PSI Kühlmittel 150 PSI Minimalmengenschmierung (MMS) |
20000 RPM |
|
|
1109-010-188 | 3/8"-18 NPT | M16x1.5 LH, 17.993 mm pilot | M16x1.5 LH, 0.708" pilot | 135 mm | 5.315" | 53.5 mm | 2.106" |
103.4 bar Kühlmittel 10 bar Minimalmengenschmierung (MMS) |
1500 PSI Kühlmittel 150 PSI Minimalmengenschmierung (MMS) |
20000 RPM |
|
1109-020-188 | G 3/8"-19 | M16x1.5 LH, 17.993 mm pilot | M16x1.5 LH, 0.708" pilot | 135 mm | 5.315" | 53.5 mm | 2.106" |
103.4 bar Kühlmittel 10 bar Minimalmengenschmierung (MMS) |
1500 PSI Kühlmittel 150 PSI Minimalmengenschmierung (MMS) |
20000 RPM |
