1005-635-539
- Single passage for coolant or MQL
- Closed seals for transfer line and similar applications
- Full-flow design has no obstructions to trap swarf or debris
- Bearing-supported with threaded rotor for easy installation
- Labyrinth system and vents to protect ball bearings
- Balanced mechanical seals made from silicon carbide for long life even under difficult operating conditions
- Anodized aluminum housing and stainless steel rotor resist corrosion
Imperial
Metric

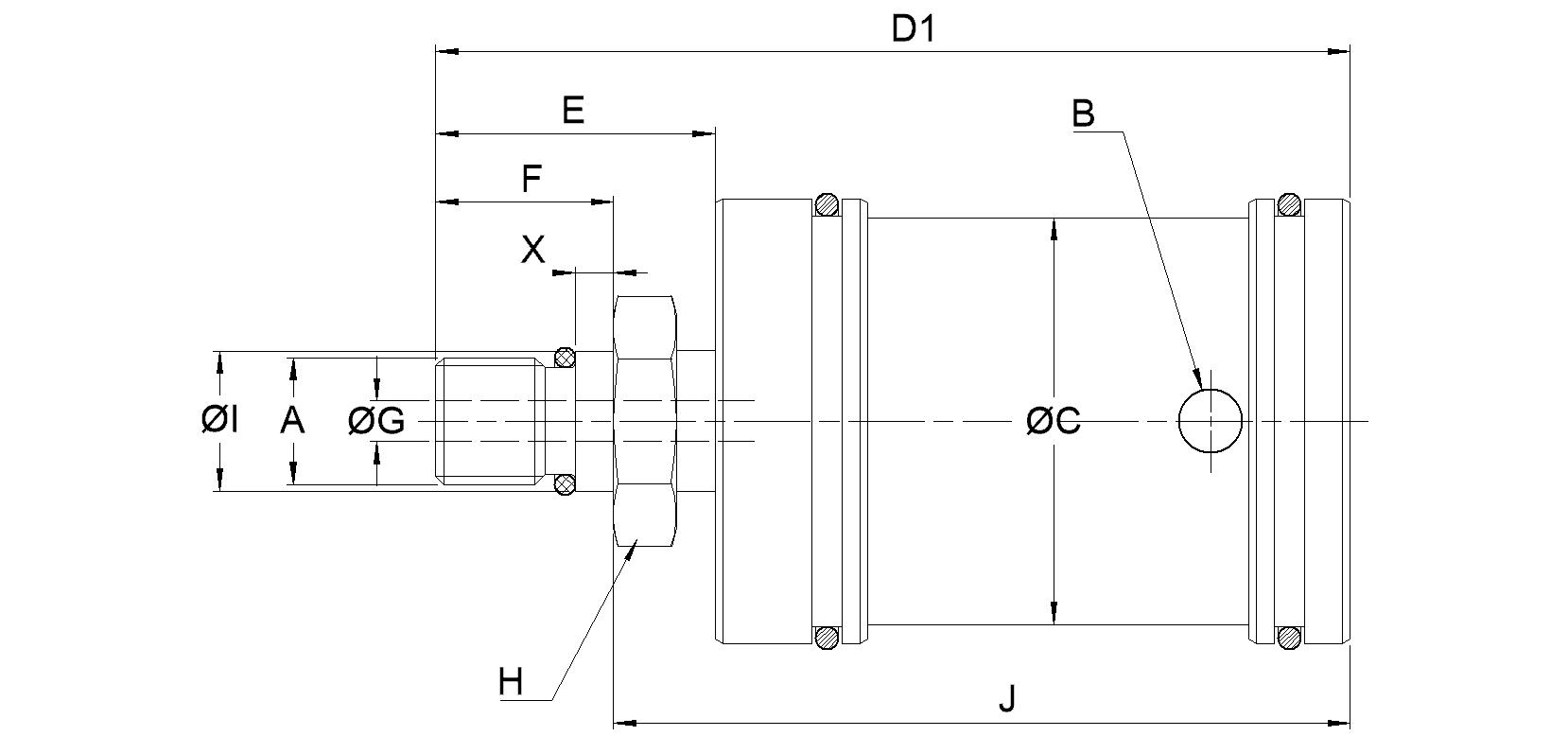

Dimensions
A
M10x1 RH
B
0.197"
B
5 mm
C
1.378"
C
35 mm
D1
72 mm
D1
2.835"
E
0.866"
E
22 mm
F
0.551"
F
14 mm
G
0.126"
G
3.2 mm
H
0.669"
H
17 mm
I
11 mm
I
0.433"
J
58 mm
J
2.283"
P
Non-Threaded
X
0.118"
X
3 mm
Operating Specifications
Media
Vacuum, Hydraulic Oil, Air
Rotor Connection
M10x1 RH, 11 mm pilot
Rotor Connection
M10x1 RH, 0.433" pilot
Housing Connection
0.197
Air
Max. Flow
10 CFM
Air
Max. Flow
283 l/min
Air
Max. Pressure
10 bar
Air
Max. Pressure
150 psi
Air
Max. Temperature
121 °C
Air
Max. Temperature
250 °F
Hydraulic Oil
Max. Flow
1.8 GPM
Hydraulic Oil
Max. Flow
6.7 l/min
Hydraulic Oil
Max. Pressure
69 bar
Hydraulic Oil
Max. Pressure
1000 psi
Hydraulic Oil
Max. Temperature
121 °C
Hydraulic Oil
Max. Temperature
250 °F
Vacuum
Max. Pressure
-0.95 bar
Vacuum
Max. Pressure
-13.75 psi
Vacuum
Max. Temperature
121 °C
Vacuum
Max. Temperature
250 °F
