1117-410-415
- Single passage for coolant or MQL
- Closed seals for transfer line and similar applications
- Full-flow design has no obstructions to trap swarf or debris
- Balanced mechanical seals made from silicon carbide for long life even under difficult operating conditions
- Compact size can be adapted for custom installations
- Anodized aluminum housing resists corrosion
Imperial
Metric

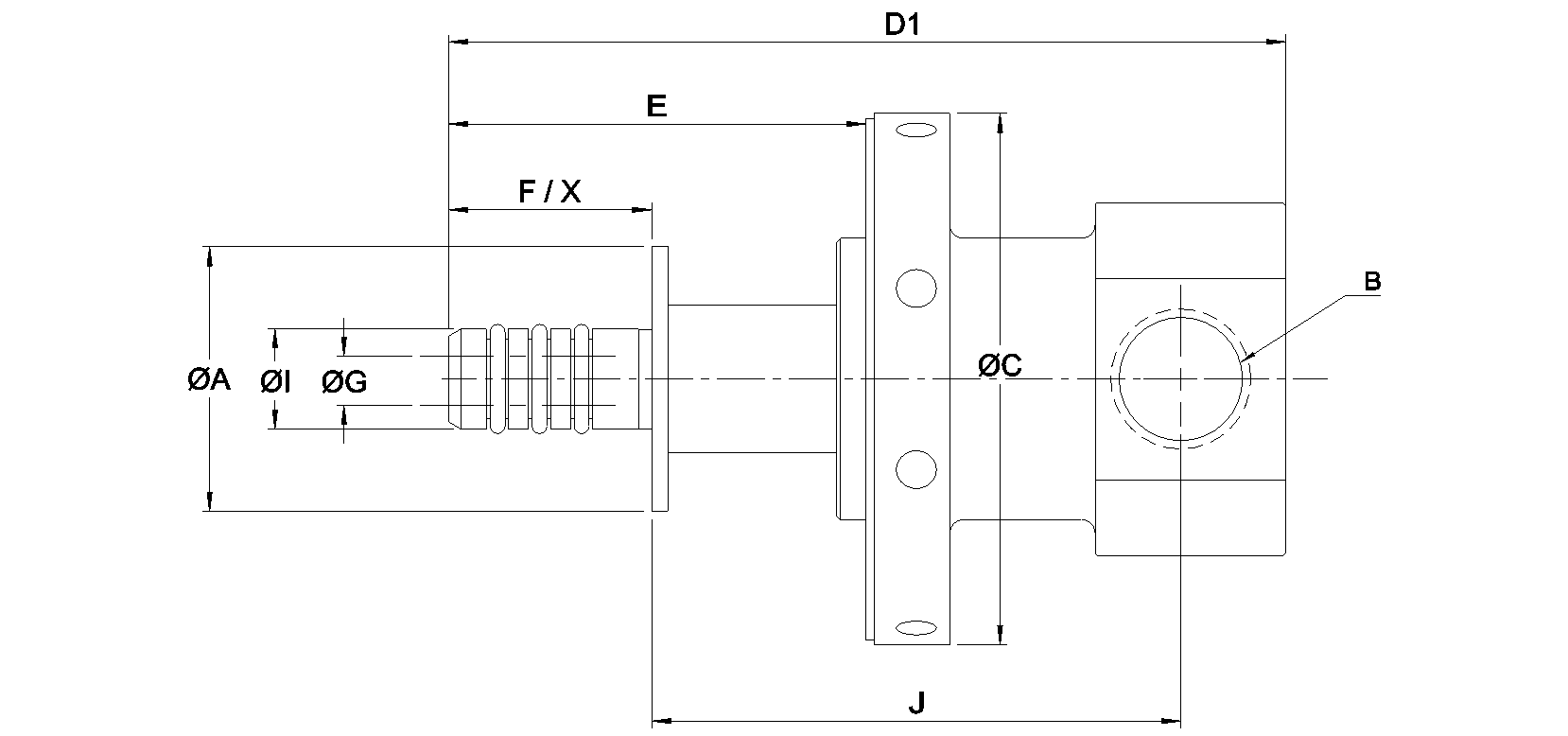

Dimensions
A
1.24"
A
31.5 mm
B
G 3/8"-19
C
63.2 mm
C
2.488"
D1
82.7 mm
D1
3.256"
E
32.7 mm
E
1.287"
F
0.953"
F
24.2 mm
G
0.118"
G
3 mm
H
1.24"
H
31.5 mm
I
12 mm
I
0.472"
J
37.5 mm
J
1.476"
P
Non-Threaded
X
24.2 mm
X
0.953"
Operating Specifications
Media
MQL, Coolant
Rotor Connection
O-ring, 12 mm pilot
Rotor Connection
O-ring, 0.472" pilot
Housing Connection
G 3/8"-19
Coolant
Max. Flow
13.2 GPM
Coolant
Max. Flow
50 l/min
Coolant
Max. Pressure
140 bar
Coolant
Max. Pressure
2030 psi
Coolant
Max. Temperature
71 °C
Coolant
Max. Temperature
160 °F
MQL
Max. Flow
72.1 CFM
MQL
Max. Flow
2040 l/min
MQL
Max. Pressure
10 bar
MQL
Max. Pressure
150 psi
MQL
Max. Temperature
71 °C
MQL
Max. Temperature
160 °F
