154-050-117
- Monoflow and duoflow design
- Self-supported rotating union
- Radial housing connection. Axial connection available.
- Wetted parts made of 316 stainless steel
- Suitable for food, chemical & pharmaceutical applications
- Full-media flow
Imperial
Metric
Dimensions
A
1/2"-14 NPT RH
B
1/2"-14 NPT
C
2.52"
C
64 mm
D1
123.3 mm
D1
4.854"
E
1.354"
E
34.4 mm
F
19 mm
F
0.748"
G
12.7 mm
G
0.5"
H
0.945"
H
24 mm
J
3.835"
J
97.4 mm
P
Non-Threaded

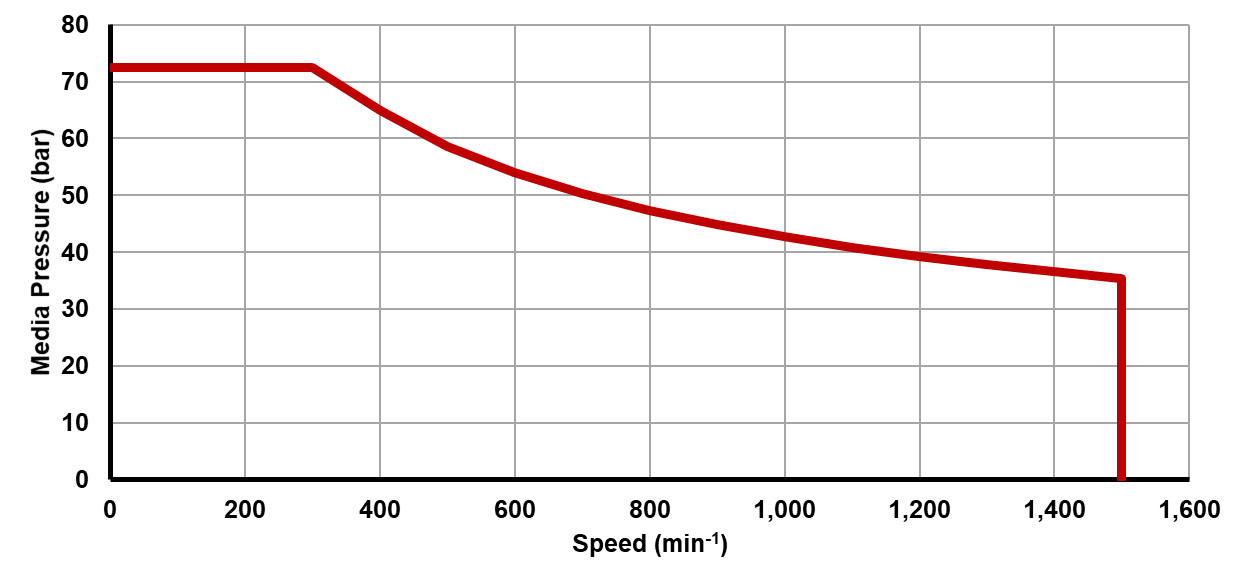

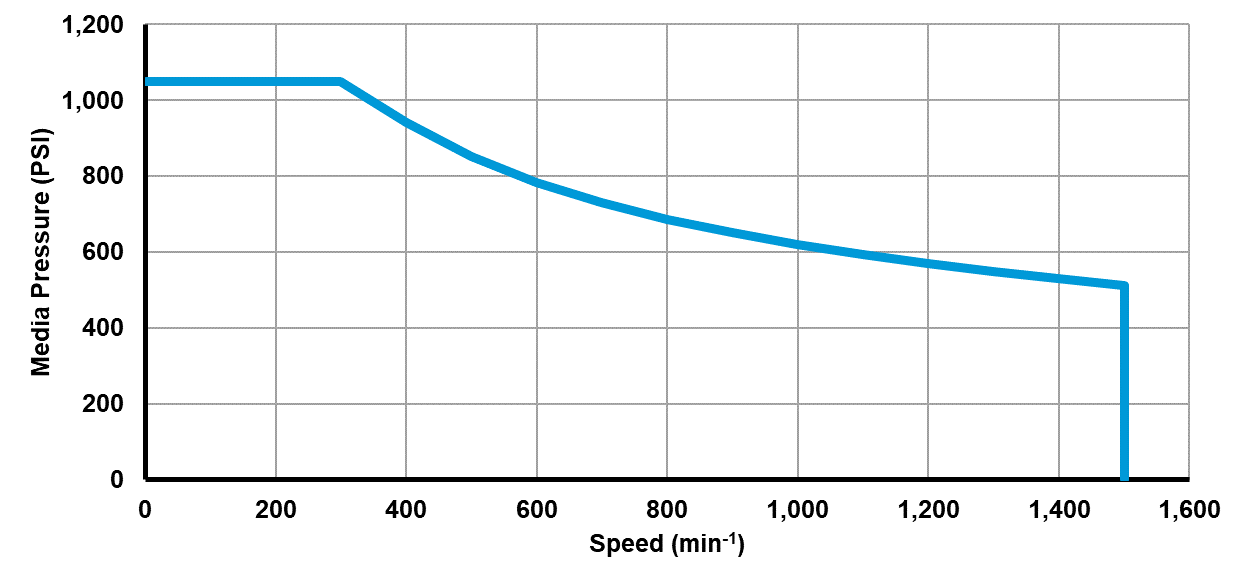

Operating Specifications
Media
Water
Rotor Connection
1/2"-14 NPT RH
Housing Connection
1/2"-14 NPT
Water
Max. Flow
7.1 GPM
Water
Max. Flow
26.9 l/min
Water
Max. Pressure
69 bar
Water
Max. Pressure
1000 psi
Water
Max. Temperature
93 °C
Water
Max. Temperature
195 °F
