155-1001-151199
- Monoflow and duoflow operation
- Self-supported rotating union
- Radial housing connection
- Balanced mechanical seals
- 3 vent holes
- Forged brass housing and stainless steel rotor
- Special options include threaded vent holes, low torque design
- Seal Combinations: Carbon Graphite/Bronze for water; Carbon Graphite/Ceramic for hot oil, hot water and saturated steam; Tungsten Carbide/Ceramic for severe conditions such as poor water quality
Imperial
Metric
Dimensions
A
G 1/2"-14 RH
B
1/2"-14 NPT
C
2.252"
C
57.2 mm
D1
120.8 mm
D1
4.756"
D2
5.713"
D2
145.1 mm
E
34.3 mm
E
1.35"
F
0.748"
F
19 mm
G
12.7 mm
G
0.5"
H
1.181"
H
30 mm
J
3.11"
J
79 mm
K
3/8"-18 NPT
M
0.709"
M
18 mm
N
38.36 mm
N
1.51"
O
NPT 3/8"-18 RH
P
Non-Threaded
R
4.256"
R
108.1 mm
S3
Threaded
Operating Specifications
Media
Water, Steam, Hot Oil
Rotor Connection
G 1/2"-14 RH
Housing Connection
1/2"-14 NPT
Hot Oil
Max. Flow
7.1 GPM
Hot Oil
Max. Flow
26.9 l/min
Hot Oil
Max. Pressure
6.9 bar
Hot Oil
Max. Pressure
100 psi
Hot Oil
Max. Temperature
160 °C
Hot Oil
Max. Temperature
320 °F
Steam
Max. Flow
29.6 GPM
Steam
Max. Flow
112.2 l/min
Steam
Max. Pressure
1 bar
Steam
Max. Pressure
15 psi
Steam
Max. Temperature
160 °C
Steam
Max. Temperature
320 °F
Water
Max. Flow
7.1 GPM
Water
Max. Flow
26.9 l/min
Water

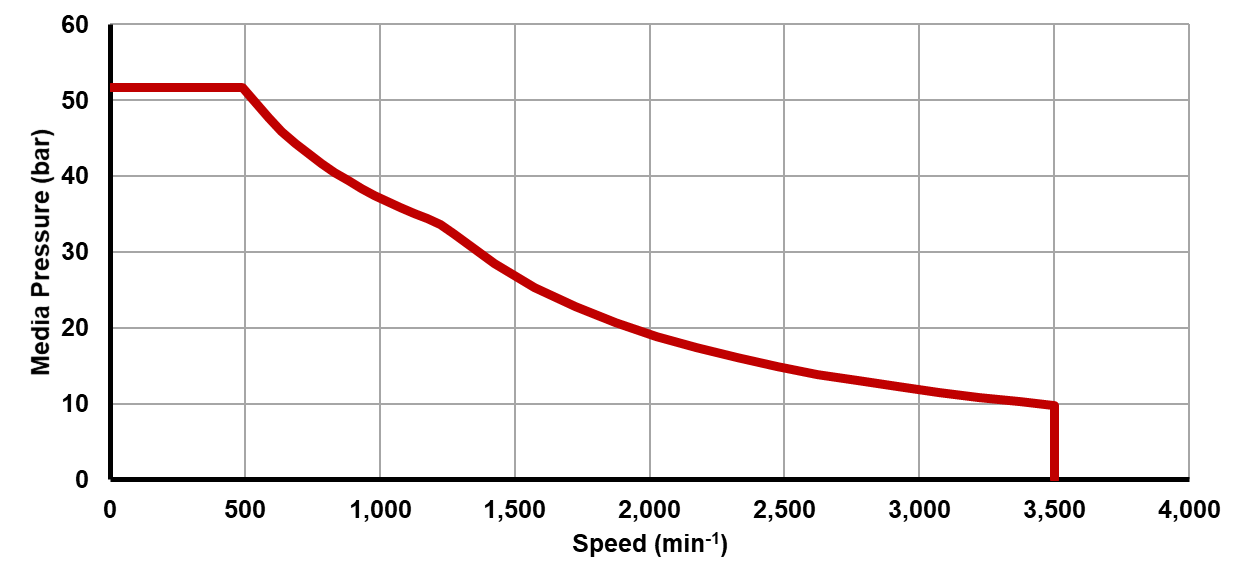

Max. Pressure
51.7 bar
Water

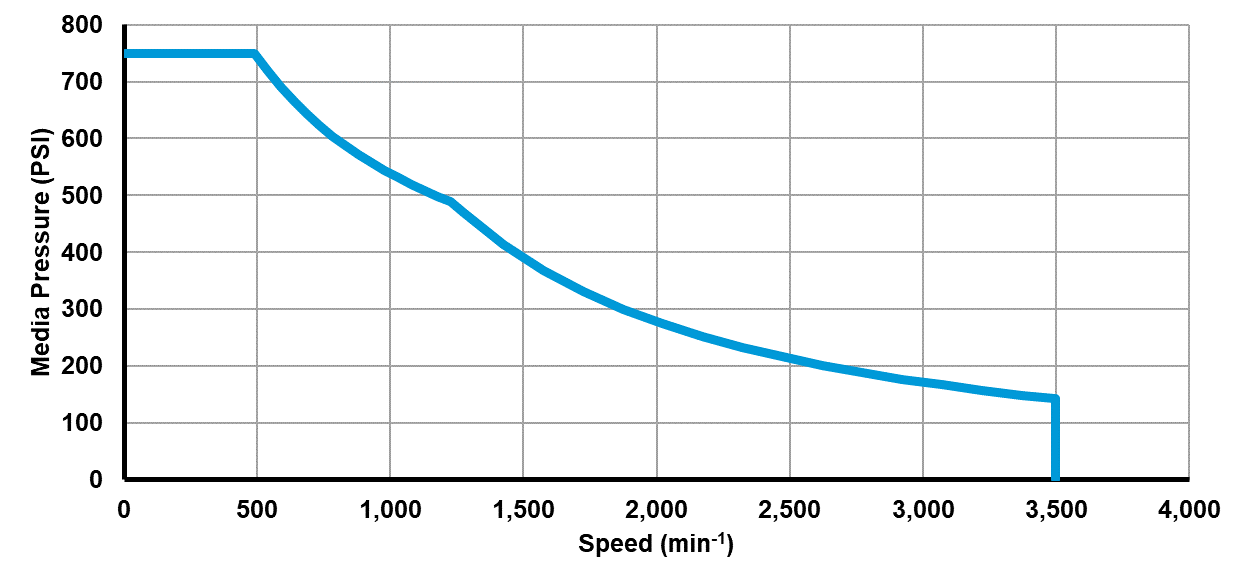

Max. Pressure
750 psi
Water
Max. Temperature
160 °C
Water
Max. Temperature
320 °F
