355-064-187
- Monoflow and duoflow operation
- Self-supported rotating union
- Radial housing connection
- Balanced mechanical seals
- 3 vent holes
- Forged brass housing and stainless steel rotor
- Special options include threaded vent holes, low torque design
- Seal Combinations: Carbon Graphite/Bronze for water; Carbon Graphite/Ceramic for hot oil, hot water and saturated steam; Tungsten Carbide/Ceramic for severe conditions such as poor water quality
Imperial
Metric
Dimensions
A
1"-11.5 NPT LH
B
1"-11.5 NPT
C
3.25"
C
82.55 mm
D1
173 mm
D1
6.811"
E
1.929"
E
49 mm
F
1.126"
F
28.6 mm
G
25 mm
G
0.984"
H
1.5"
H
38.1 mm
J
4.606"
J
117 mm
K
3/4"-14 NPT
P
Non-Threaded
Operating Specifications
Media
Water, Steam, Hot Oil
Rotor Connection
1"-11.5 NPT LH
Housing Connection
1"-11.5 NPT
Hot Oil
Max. Flow
28.5 GPM
Hot Oil
Max. Flow
107.7 l/min
Hot Oil
Max. Pressure
6.9 bar
Hot Oil
Max. Pressure
100 psi
Hot Oil
Max. Temperature
93 °C
Hot Oil
Max. Temperature
195 °F
Steam
Max. Flow
118.6 GPM
Steam
Max. Flow
448.9 l/min
Steam
Max. Pressure
1 bar
Steam
Max. Pressure
15 psi
Steam
Max. Temperature
93 °C
Steam
Max. Temperature
195 °F
Water
Max. Flow
28.5 GPM
Water
Max. Flow
107.7 l/min
Water

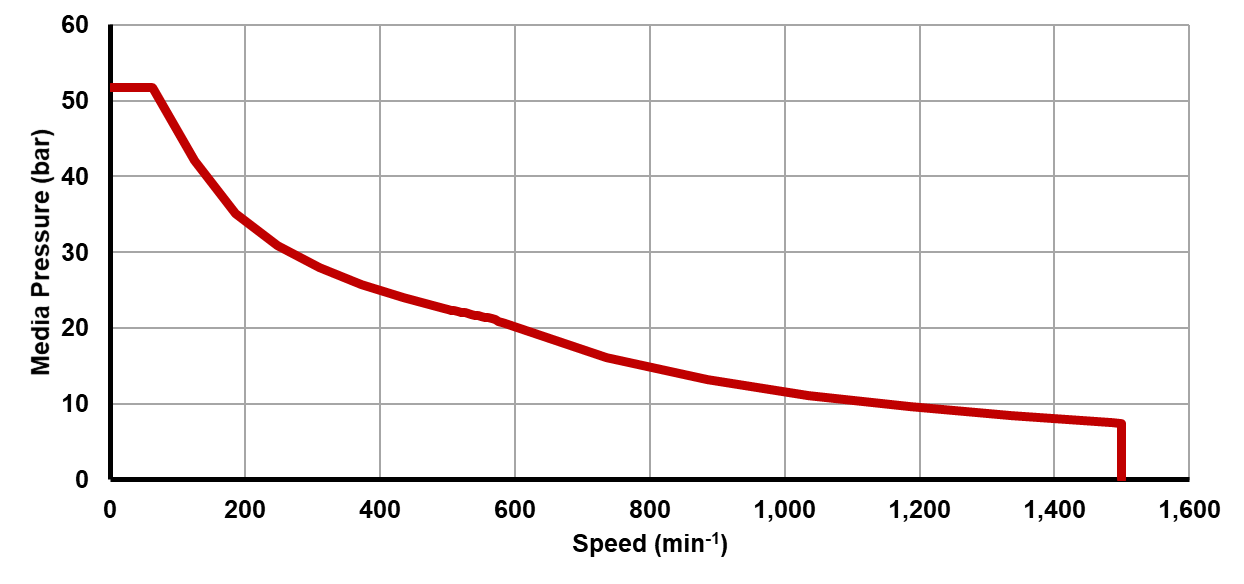

Max. Pressure
51.7 bar
Water

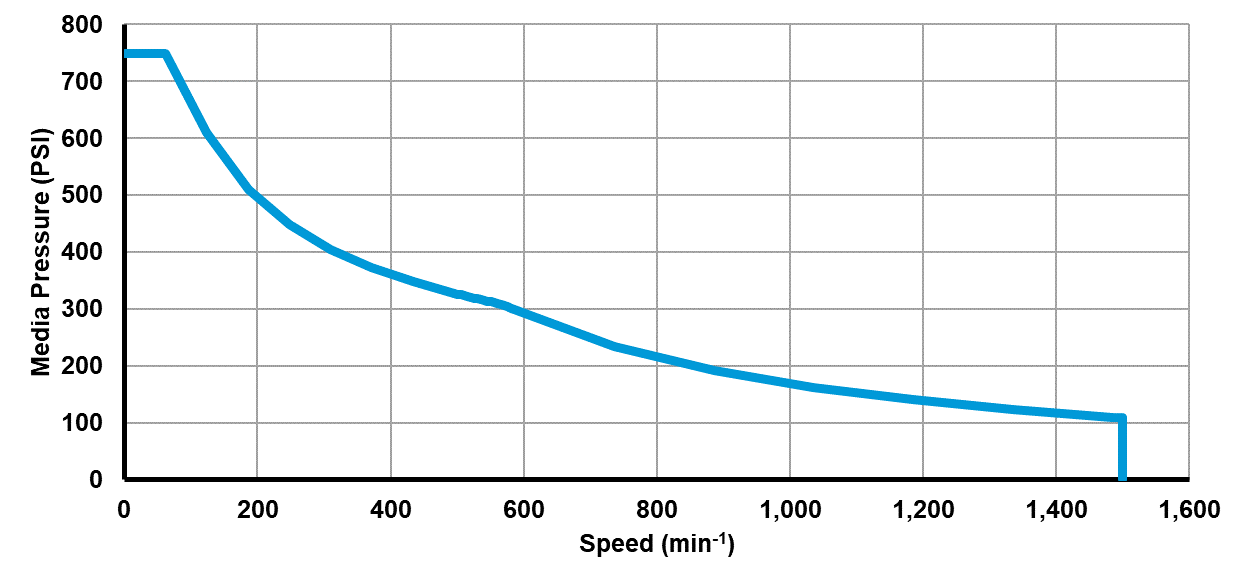

Max. Pressure
750 psi
Water
Max. Temperature
93 °C
Water
Max. Temperature
195 °F
