6200-011-240
- Monoflow and duoflow design
- Self-supported rotating union
- Radial housing connection
- Balanced mechanical seals
- Steel-banded floating seal
- Easy and quick replacement of sealing components
- Full-media flow
- Vent slots
- Cast iron housing
- Steel rotor flanged/threaded
- Seal Combinations: Carbon Graphite/Tungsten Carbide standard, Silicon Carbide/Tungsten Carbide for severe conditions such as poor water quality
Imperial
Metric

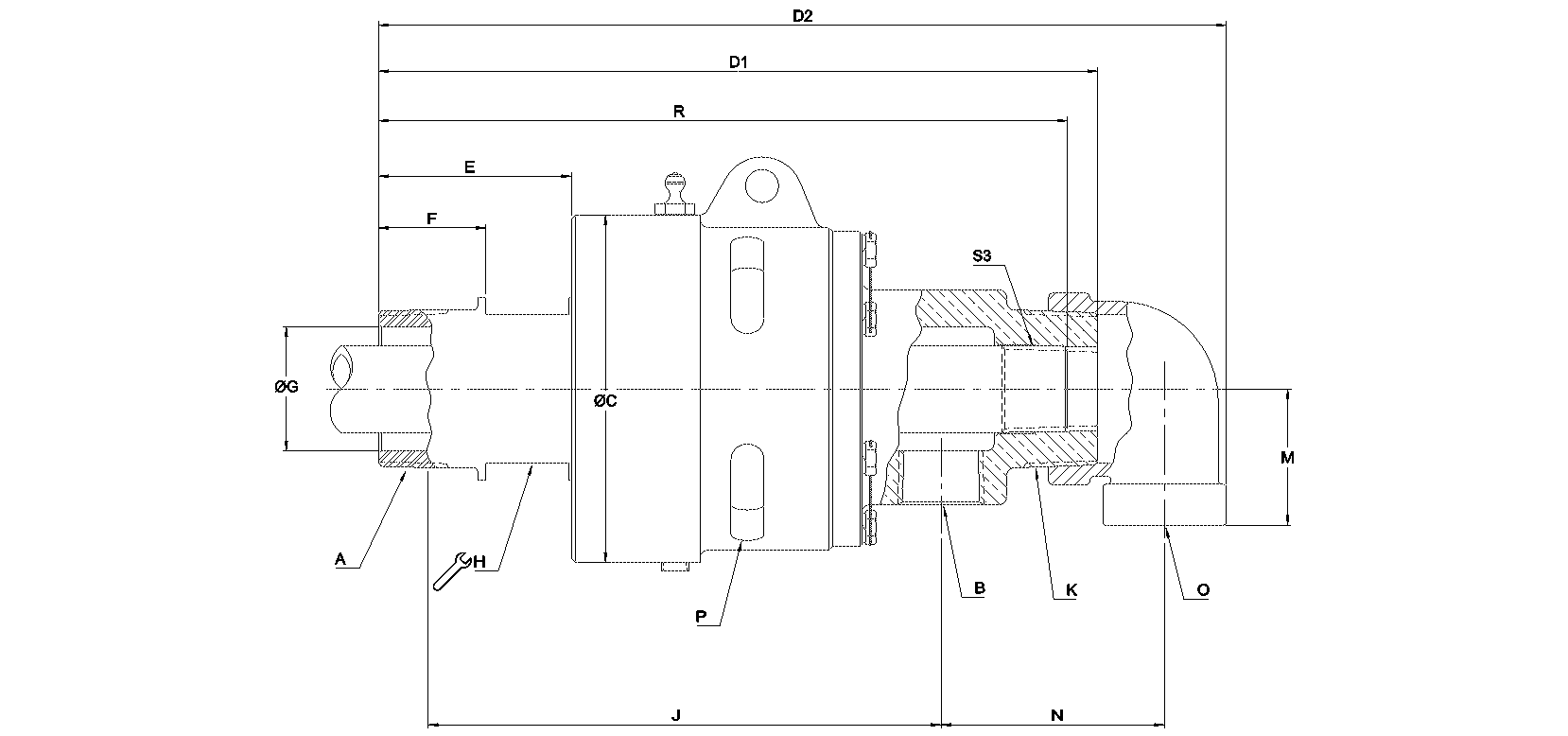

Dimensions
A
2-3/8"-12 UN RH
B
1"-11.5 NPT
C
133.35 mm
C
5.25"
D1
10.524"
D1
267.3 mm
D2
12.474"
D2
316.83 mm
E
2.587"
E
65.7 mm
F
28.58 mm
F
1.125"
G
47.63 mm
G
1.875"
H
56.9 mm
H
2.24"
J
7.101"
J
180.37 mm
K
1"-11.5 NPT
M
52.37 mm
M
2.062"
N
85.7 mm
N
3.374"
O
NPT 1"-11.5 RH
P
Non-Threaded
R
256 mm
R
10.079"
S3
Threaded
Operating Specifications
Media
Water
Rotor Connection
2-3/8"-12 UN RH
Housing Connection
1"-11.5 NPT
Water
Max. Flow
54.9 GPM
Water
Max. Flow
208 l/min
Water
Max. Pressure
10 bar
Water
Max. Pressure
150 psi
Water
Max. Temperature
121 °C
Water
Max. Temperature
250 °F
