6300-006-103
- Monoflow and duoflow design
- Self-supported rotating union
- Radial housing connection
- Balanced mechanical seals
- Steel-banded floating seal
- Easy and quick replacement of sealing components
- Full-media flow
- Vent slots
- Cast iron housing
- Steel rotor flanged/threaded
- Seal Combinations: Carbon Graphite/Tungsten Carbide standard, Silicon Carbide/Tungsten Carbide for severe conditions such as poor water quality
Quantity:
Already have an account? Sign in
Imperial
Metric

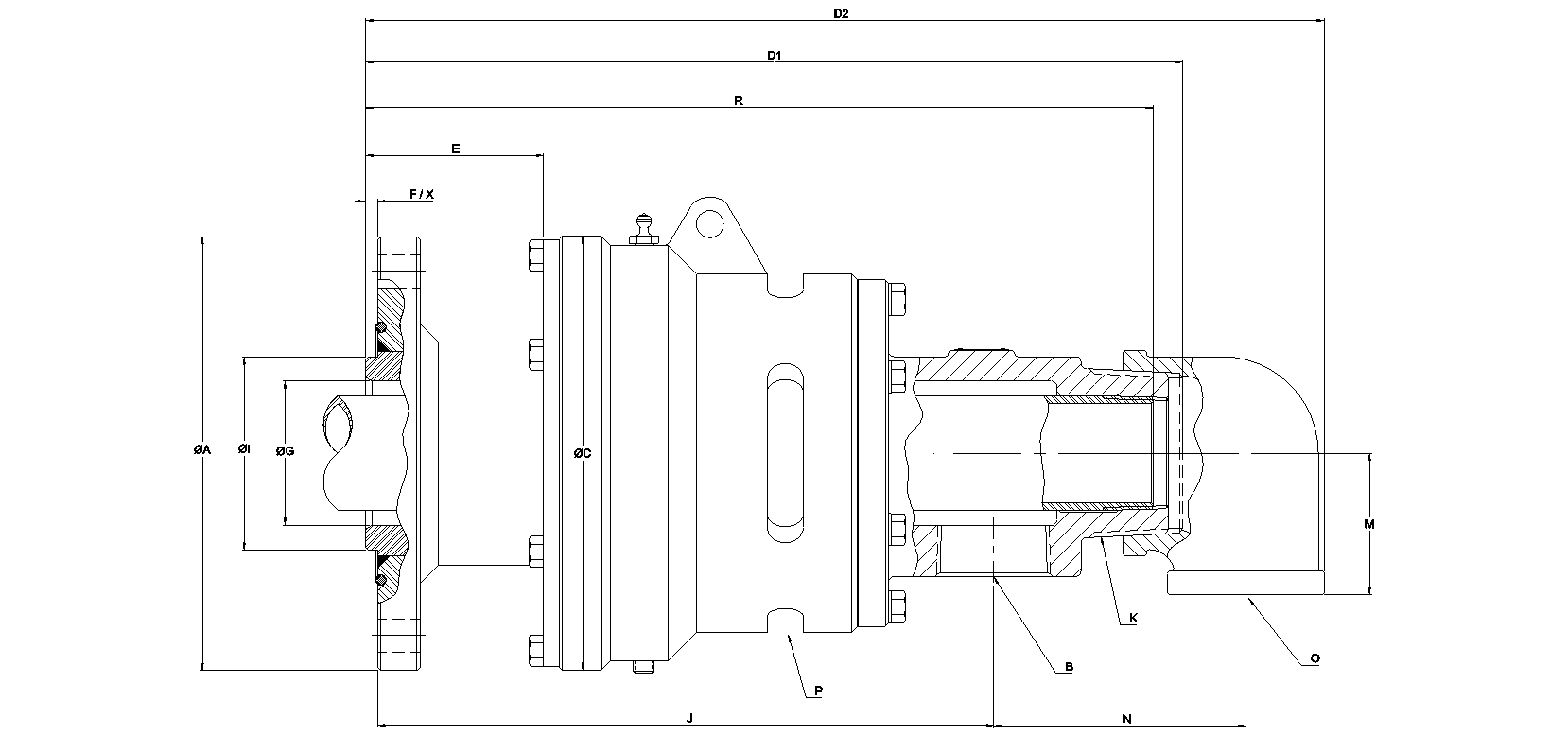

Dimensions

A
226.6 mm
A
8.921"
B
2"-11.5 NPT
C
229 mm
C
9.016"
D1
422.8 mm
D1
16.646"
D2
19.886"
D2
505.1 mm
E
3.685"
E
93.6 mm
F
6.4 mm
F
0.252"
G
76.2 mm
G
3"
I
101.7 mm
I
4.004"
J
12.756"
J
324 mm
K
3"-8 NPT
M
2.929"
M
74.4 mm
N
5.236"
N
133 mm
O
NPT 2"-11.5 RH
P
Non-Threaded
R
415 mm
R
16.339"
S3
Threaded
X
0.252"
X
6.4 mm
Operating Specifications
Media
Water
Rotor Connection
226.6 mm Flange, 101.7 mm pilot
Rotor Connection
8.921" Flange, 4.004" pilot
Housing Connection
2"-11.5 NPT
Water
Max. Flow
114.9 GPM
Water
Max. Flow
435 l/min
Water
Pressure
10 bar
Water
Pressure
150 psi
Water
Temperature
121 °C
Water
Temperature
250 °F
