6300-007-164
- Monoflow and duoflow design
- Self-supported rotating union
- Radial housing connection
- Balanced mechanical seals
- Steel-banded floating seal
- Easy and quick replacement of sealing components
- Full-media flow
- Vent slots
- Cast iron housing
- Steel rotor flanged/threaded
- Seal Combinations: Carbon Graphite/Tungsten Carbide standard, Silicon Carbide/Tungsten Carbide for severe conditions such as poor water quality
Quantity:
Already have an account? Sign in
Imperial
Metric

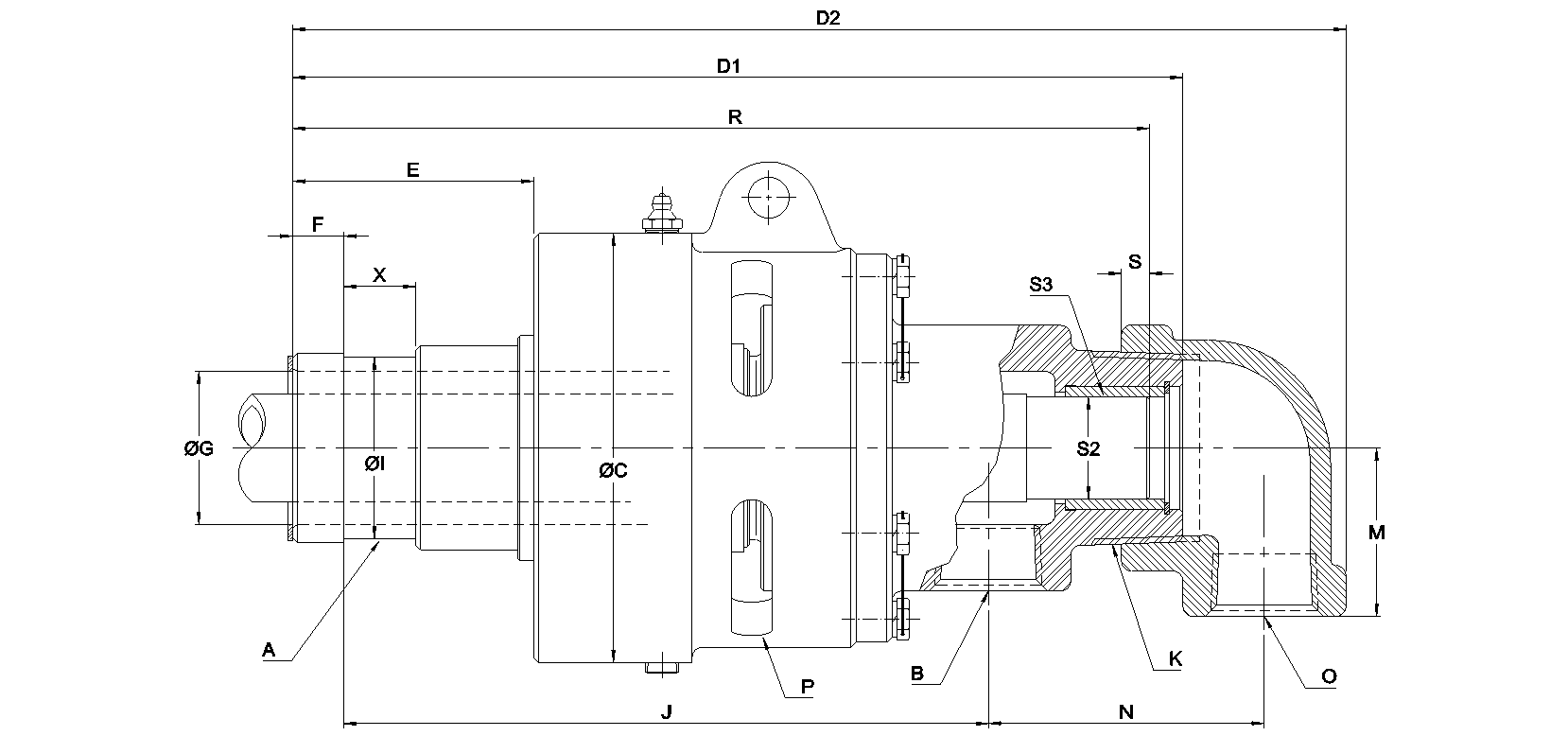

Dimensions

A
Quick Connect
B
2"-11.5 NPT
C
228.6 mm
C
9"
D1
440 mm
D1
17.323"
D2
20.266"
D2
514.7564 mm
E
103.3018 mm
E
4.067"
F
0.875"
F
22.225 mm
G
73.025 mm
G
2.875"
I
3.43"
I
87.12 mm
J
12.529"
J
318.2366 mm
K
3"-8 NPT
M
2.937"
M
74.6 mm
N
133.0452 mm
N
5.238"
O
NPT 2"-11.5 RH
P
Non-Threaded
R
422.402 mm
R
16.63"
S
0.551"
S
14 mm
S2
1.867"
S2
47.4218 mm
S3
Rotating
X
22.225 mm
X
0.875"
Operating Specifications
Media
Water
Rotor Connection
Quick Connect, 87.12 mm pilot
Rotor Connection
Quick Connect, 3.43" pilot
Housing Connection
2"-11.5 NPT
Water
Pressure
10 bar
Water
Pressure
150 psi
Water
Temperature
121 °C
Water
Temperature
250 °F
