9100-014-213
- Monoflow and duoflow design
- Self-supported rotating union
- Spherical Carbon Graphite seal
- Seal wear indicator allows preventive maintenance
- Two torque restraint lugs on the housing
- Nickel-plated cast iron housing
- Steel rotor blackened for steam service
Imperial
Metric

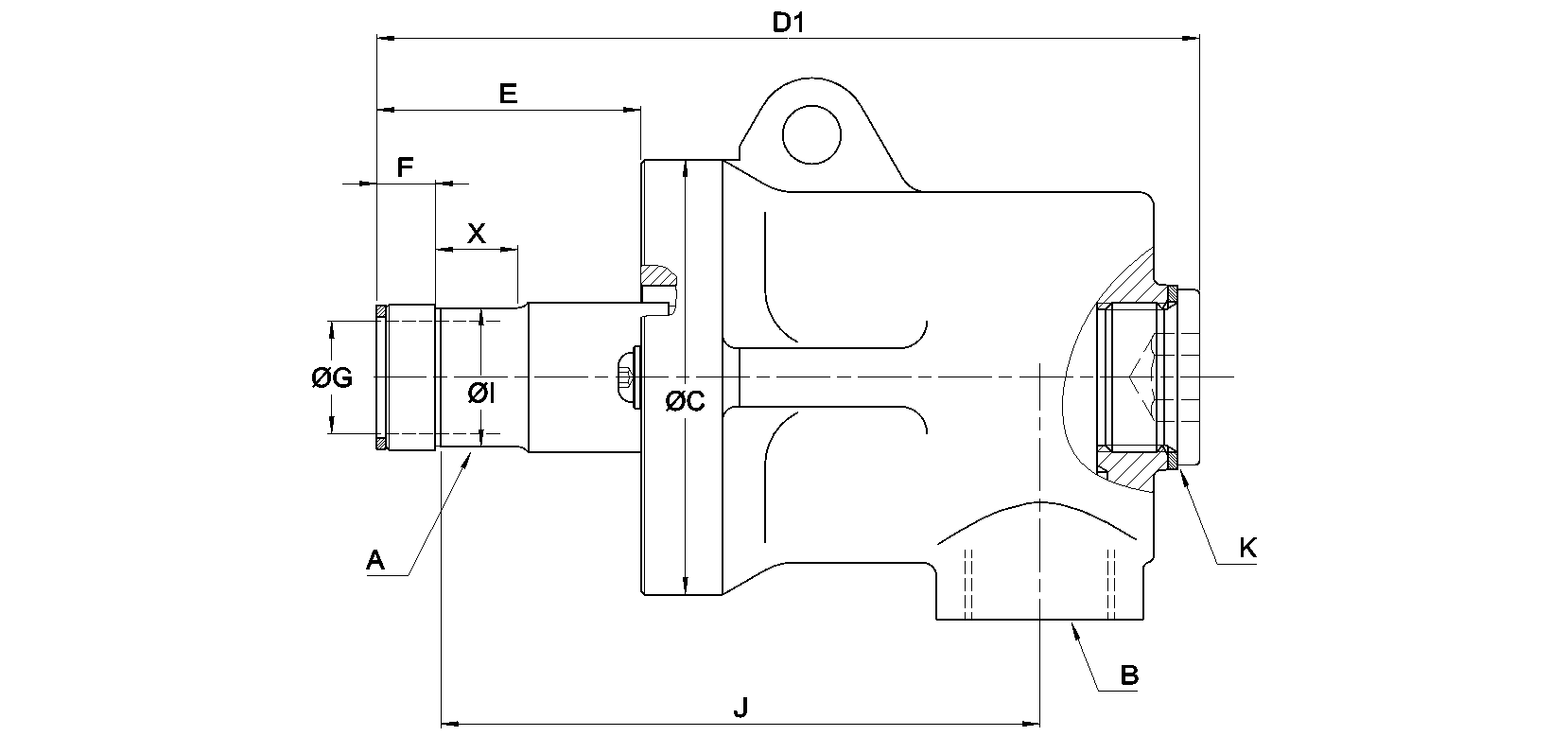

Dimensions
A
Quick Connect
B
G 1"-11
C
96.8 mm
C
3.811"
D1
7.126"
D1
181 mm
E
57 mm
E
2.244"
F
13.1 mm
F
0.516"
G
0.984"
G
25 mm
I
1.274"
I
32.36 mm
J
5.827"
J
148 mm
K
1"-11.5 NPT
X
0.437"
X
11.1 mm
Operating Specifications
Media
Steam, Hot Oil
Rotor Connection
Quick Connect, 32.36 mm pilot
Rotor Connection
Quick Connect, 1.274" pilot
Housing Connection
G 1"-11
Hot Oil Pressure
6.9 bar
Hot Oil Pressure
100 psi
Hot Oil Temperature
232 °C
Hot Oil Temperature
450 °F
Steam Pressure
10 bar
Steam Pressure
150 psi
Steam Temperature
185 °C
Steam Temperature
365 °F
