| Features.ProductSeries.DeublinPartNumberDisplay | Features.ProductSeries.SupplyConnectionDisplay | Features.ProductSeries.RotorConnectionDisplay | Features.ProductSeries.OverallLengthDisplay | Features.ProductSeries.HousignDiameterDisplay | Features.ProductSeries.MaxPressureDisplay | Features.ProductSeries.MaxSpeedDisplay | ||||
|---|---|---|---|---|---|---|---|---|---|---|
|

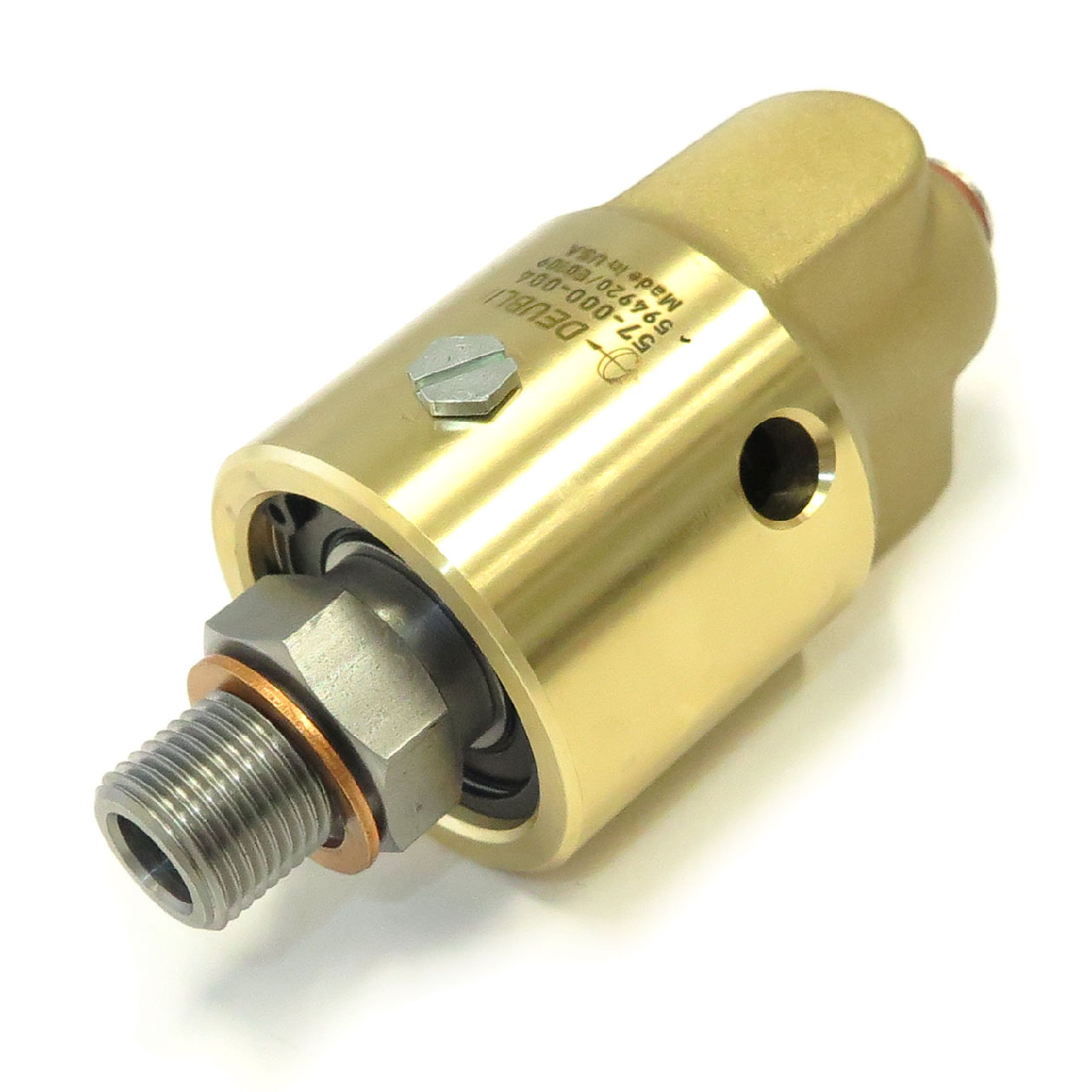

57-000-004 | 3/8"-18 NPT | 5/8"-18 UNF LH | 102 mm | 4.016" | 44 mm | 1.732" |
6.9 bar Hot Oil 1 bar Steam 51.7 bar Water |
100 PSI Hot Oil 15 PSI Steam 750 PSI Water |
3500 RPM |
|

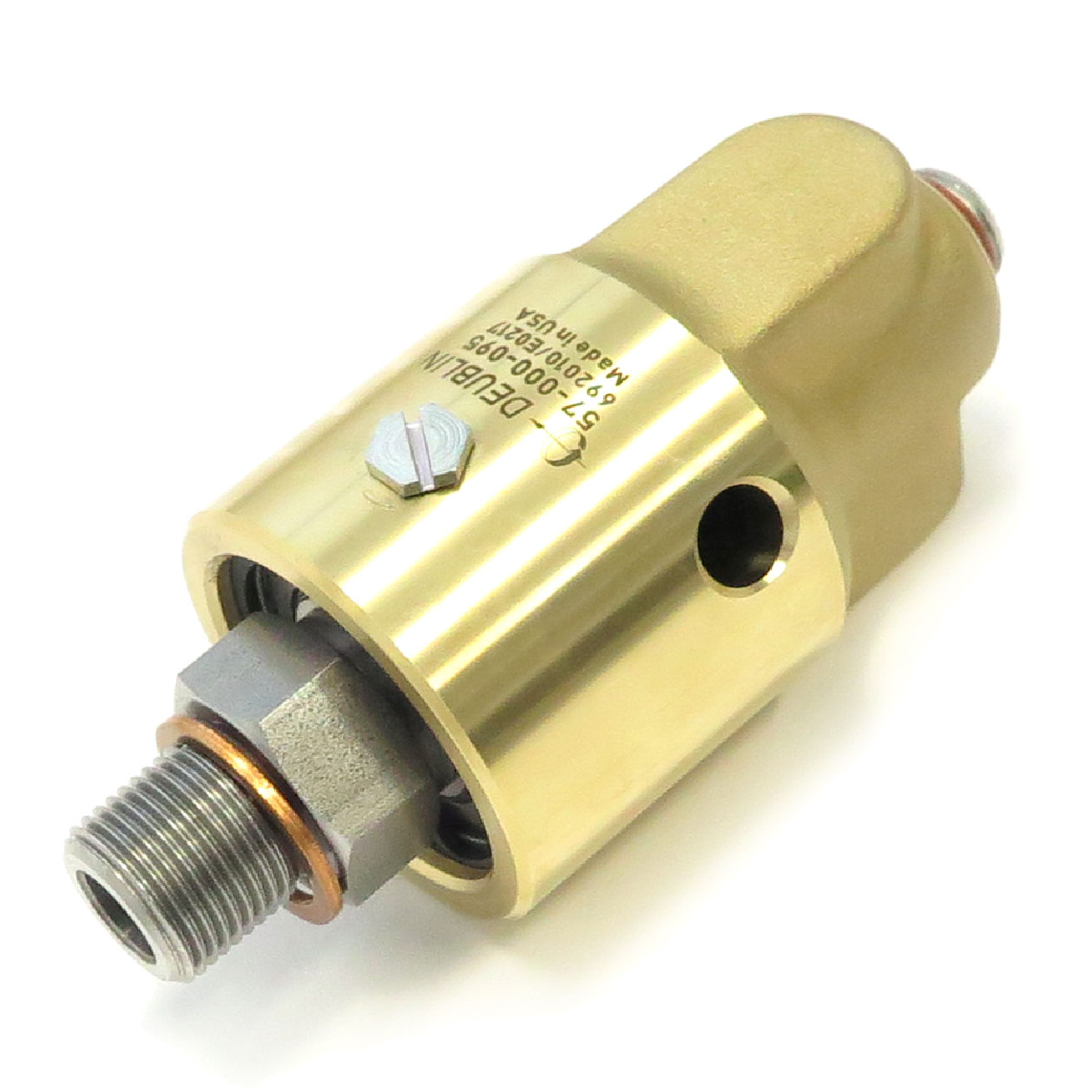

57-000-095 | 3/8"-18 NPT | G 3/8"-19 LH | 103 mm | 4.055" | 44.5 mm | 1.752" |
6.9 bar Hot Oil 1 bar Steam 51.7 bar Water |
100 PSI Hot Oil 15 PSI Steam 750 PSI Water |
3500 RPM |
|
|
57-000-095 | 3/8"-18 NPT | G 3/8"-19 LH | 103 mm | 4.055" | 44.5 mm | 1.752" |
6.9 bar Hot Oil 1 bar Steam 51.7 bar Water |
100 PSI Hot Oil 15 PSI Steam 750 PSI Water |
3500 RPM |
|
57-050-094 | 3/8"-18 NPT | G 3/8"-19 RH | 103 mm | 4.055" | 44.5 mm | 1.752" |
6.9 bar Hot Oil 1 bar Steam 51.7 bar Water |
100 PSI Hot Oil 15 PSI Steam 750 PSI Water |
3500 RPM |
|
|
57-050-094 | G 3/8"-19 RH | 103 mm | 4.055" | ||||||
|
57-013-677 | 3/8"-18 NPT | G 1/4"-19 RH | 100 mm | 3.937" | 45 mm | 1.772" |
6.9 bar Hot Oil 1 bar Steam 51.7 bar Water |
100 PSI Hot Oil 15 PSI Steam 750 PSI Water |
3500 RPM |
|
57-000-094120 | 3/8"-18 NPT | G 3/8"-19 RH | 127 mm | 5" | 45 mm | 1.772" |
6.9 bar Hot Oil 1 bar Steam 51.7 bar Water |
100 PSI Hot Oil 15 PSI Steam 750 PSI Water |
3500 RPM |
|
|
57-000-003 | 3/8"-18 NPT | 5/8"-18 UNF RH | 102 mm | 4.016" | 44 mm | 1.732" |
6.9 bar Hot Oil 1 bar Steam 51.7 bar Water |
100 PSI Hot Oil 15 PSI Steam 750 PSI Water |
3500 RPM |
|
|
57-000-003 | 5/8"-18 UNF RH | 44 mm | 1.732" |
6.9 bar Hot Oil 1 bar Steam 51.7 bar Water |
100 PSI Hot Oil 15 PSI Steam 750 PSI Water |
3500 RPM | |||
|
57-000-001 | 3/8"-18 NPT | 3/8"-18 NPT RH | 102 mm | 4.016" | 44 mm | 1.732" |
6.9 bar Hot Oil 1 bar Steam 51.7 bar Water |
100 PSI Hot Oil 15 PSI Steam 750 PSI Water |
1500 RPM |
|
57-000-008 | 3/8"-18 NPT | 1/4"-18 NPT RH | 102 mm | 4.016" | 44 mm | 1.732" |
6.9 bar Hot Oil 1 bar Steam 51.7 bar Water |
100 PSI Hot Oil 15 PSI Steam 750 PSI Water |
1500 RPM |
|
57-000-094 | 3/8"-18 NPT | G 3/8"-19 RH | 103 mm | 4.055" | 44.5 mm | 1.752" |
6.9 bar Hot Oil 1 bar Steam 51.7 bar Water |
100 PSI Hot Oil 15 PSI Steam 750 PSI Water |
3500 RPM |
|
|
57-050-004 | 3/8"-18 NPT | 5/8"-18 UNF LH | 102 mm | 4.016" | 44 mm | 1.732" |
6.9 bar Hot Oil 1 bar Steam 51.7 bar Water |
100 PSI Hot Oil 15 PSI Steam 750 PSI Water |
3500 RPM |
|
|
57-050-001 | 3/8"-18 NPT | 3/8"-18 NPT RH | 102 mm | 4.016" | 44 mm | 1.732" |
6.9 bar Hot Oil 1 bar Steam 51.7 bar Water |
100 PSI Hot Oil 15 PSI Steam 750 PSI Water |
1500 RPM |
|
|
57-050-001 | 3/8"-18 NPT RH | 44 mm | 1.732" |
6.9 bar Hot Oil 1 bar Steam 51.7 bar Water |
100 PSI Hot Oil 15 PSI Steam 750 PSI Water |
1500 RPM | |||
|

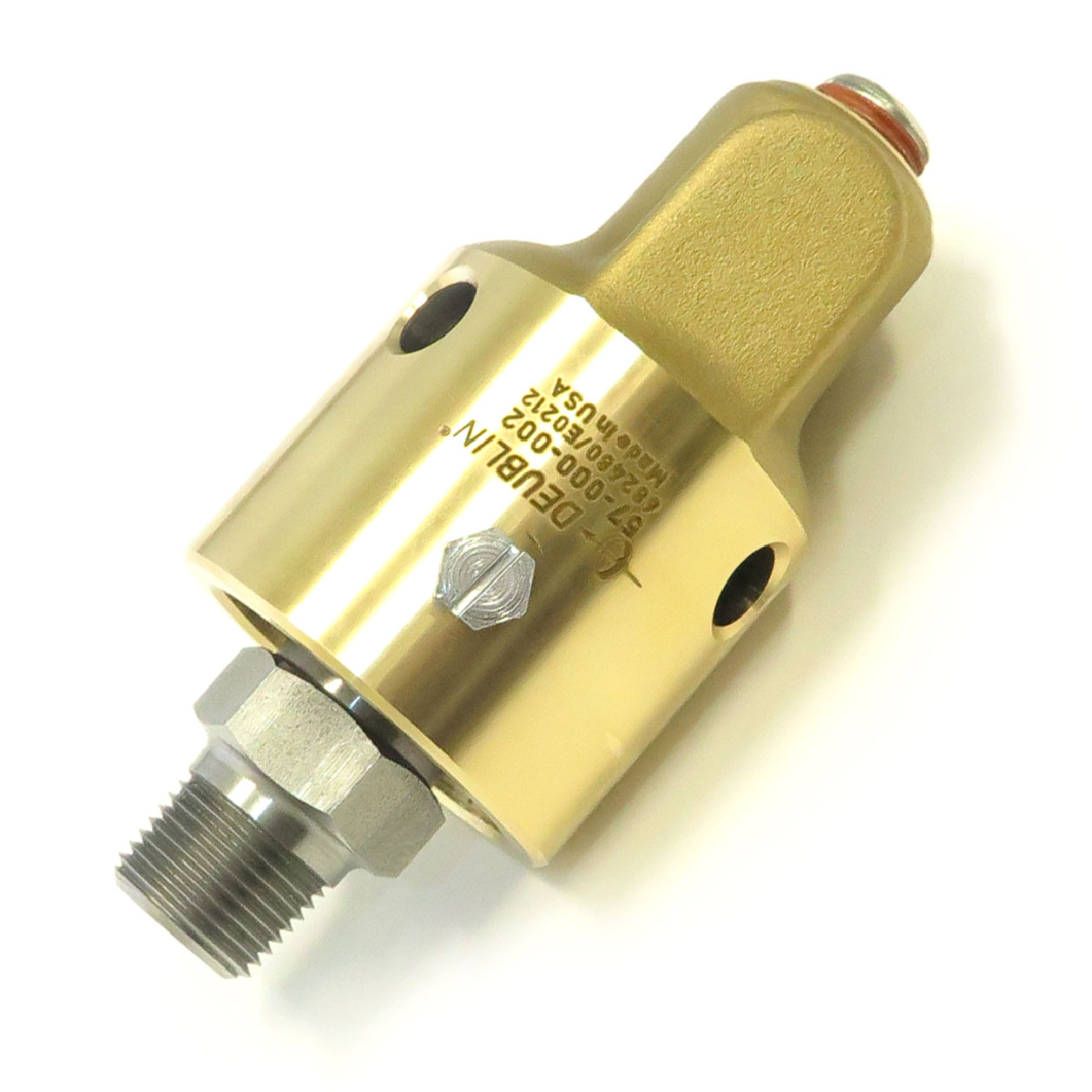

57-000-002 | 3/8"-18 NPT | 3/8"-18 NPT LH | 102 mm | 4.016" | 44 mm | 1.732" |
6.9 bar Hot Oil 1 bar Steam 51.7 bar Water |
100 PSI Hot Oil 15 PSI Steam 750 PSI Water |
1500 RPM |
|

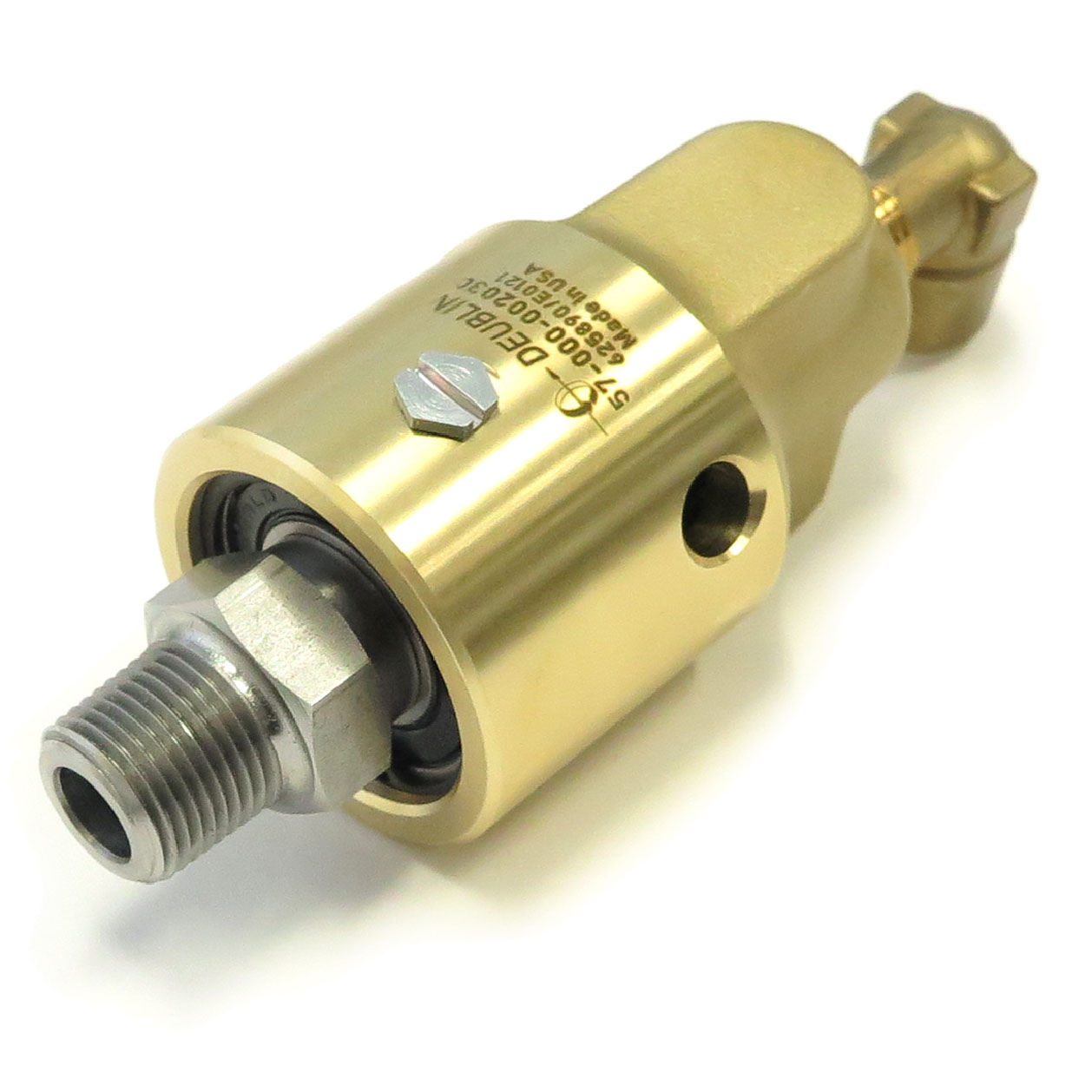

57-000-002030 | 3/8"-18 NPT | 3/8"-18 NPT LH | 123 mm | 4.843" | 44 mm | 1.732" |
6.9 bar Hot Oil 1 bar Steam 51.7 bar Water |
100 PSI Hot Oil 15 PSI Steam 750 PSI Water |
1500 RPM |
|
|
57-000-003030 | 3/8"-18 NPT | 5/8"-18 UNF RH | 123.13 mm | 4.848" | 44.45 mm | 1.75" |
6.9 bar Hot Oil 1 bar Steam 51.7 bar Water |
100 PSI Hot Oil 15 PSI Steam 750 PSI Water |
3500 RPM |
|
|
57-065-094 | 3/8"-18 NPT | G 3/8"-19 RH | 103 mm | 4.055" | 45 mm | 1.772" |
6.9 bar Hot Oil 1 bar Steam 51.7 bar Water |
100 PSI Hot Oil 15 PSI Steam 750 PSI Water |
3500 RPM |
|
57-130-094 | G 3/8"-19 | G 3/8"-19 RH | 100 mm | 3.937" | 45 mm | 1.772" |
6.9 bar Hot Oil 1 bar Steam 51.7 bar Water |
100 PSI Hot Oil 15 PSI Steam 750 PSI Water |
3500 RPM |
