| Deublin Part Number | Supply Connection | Rotor Connection | Overall Length | Housing Diameter | Maximum Pressure and Media | Maximum Speed | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
|
257-045-425 | 3/4"-14 PT | M25x1.5 LH | 137 mm | 5.394" | 73.03 mm | 2.875" |
10 bar Water 6.9 bar Hot Oil 1 bar Steam 51.7 bar Water |
150 PSI Water 100 PSI Hot Oil 15 PSI Steam 750 PSI Water |
3500 RPM | |
|
|
257-000-013 | 3/4"-14 NPT | M22x1.5 LH, 26.993 mm pilot | M22x1.5 LH, 1.063" pilot | 136.5 mm | 5.374" | 73.03 mm | 2.875" |
10 bar Water 6.9 bar Hot Oil 1 bar Steam 51.7 bar Water |
150 PSI Water 100 PSI Hot Oil 15 PSI Steam 750 PSI Water |
3500 RPM |
|
|
257-056-835 | 3/4"-14 NPT | Quick Connect, 24.26 mm pilot | Quick Connect, 0.955" pilot | 153 mm | 6.024" | 73.03 mm | 2.875" |
10 bar Water 6.9 bar Hot Oil 1 bar Steam 51.7 bar Water |
150 PSI Water 100 PSI Hot Oil 15 PSI Steam 750 PSI Water |
1500 RPM |
|
|
257-1004-020 | 3/4"-14 NPT | 3/4"-14 NPT RH | 141 mm | 5.551" | 73.03 mm | 2.875" |
51.7 bar Water |
750 PSI Water |
1500 RPM | |
|
|
257-1002-021 | 3/4"-14 NPT | 3/4"-14 NPT LH | 138.2 mm | 5.441" | 73.03 mm | 2.875" |
6.9 bar Hot Oil 1 bar Steam 51.7 bar Water |
100 PSI Hot Oil 15 PSI Steam 750 PSI Water |
1500 RPM | |
|
|
257-2318-014 | 3/4"-14 NPT | M35x1.5 RH | 140 mm | 5.512" | 73.03 mm | 2.875" |
10 bar Hot Oil |
150 PSI Hot Oil |
3500 RPM | |
|
|
257-1005-028 | 3/4"-14 NPT | 1"-14 UNS RH, 31.7 mm pilot | 1"-14 UNS RH, 1.248" pilot | 162 mm | 6.378" | 73.03 mm | 2.875" |
6.9 bar Hot Oil 1 bar Steam 51.7 bar Water |
100 PSI Hot Oil 15 PSI Steam 750 PSI Water |
3500 RPM |
|
|
257-130-048 | G 3/4"-14 | M27x1.5 RH, 28 mm pilot | M27x1.5 RH, 1.102" pilot | 137 mm | 5.394" | 73.03 mm | 2.875" |
6.9 bar Hot Oil 1 bar Steam 51.7 bar Water |
100 PSI Hot Oil 15 PSI Steam 750 PSI Water |
3500 RPM |
|
|
257-130-012 | G 3/4"-14 | M22x1.5 RH, 26.993 mm pilot | M22x1.5 RH, 1.063" pilot | 136.5 mm | 5.374" | 73.03 mm | 2.875" |
6.9 bar Hot Oil 1 bar Steam 51.7 bar Water |
100 PSI Hot Oil 15 PSI Steam 750 PSI Water |
3500 RPM |
|
|
257-130-104 | G 3/4"-14 | M27x1.5 LH, 28 mm pilot | M27x1.5 LH, 1.102" pilot | 140 mm | 5.512" | 73.03 mm | 2.875" |
6.2 bar Hot Oil 1 bar Steam 51.7 bar Water |
90 PSI Hot Oil 15 PSI Steam 750 PSI Water |
3500 RPM |
|
|
257-170-020 | 3/4"-14 NPT | 3/4"-14 NPT RH | 142.3 mm | 5.602" | 73.03 mm | 2.875" |
6.9 bar Hot Oil 1 bar Steam 51.7 bar Water |
100 PSI Hot Oil 15 PSI Steam 750 PSI Water |
1500 RPM | |
|
|
257-177-020 | 3/4"-14 NPT | 3/4"-14 NPT RH | 141 mm | 5.551" | 73.03 mm | 2.875" |
10 bar Water 6.9 bar Hot Oil 1 bar Steam 51.7 bar Water |
150 PSI Water 100 PSI Hot Oil 15 PSI Steam 750 PSI Water |
1000 RPM | |
|
|
257-177-021 | 3/4"-14 NPT | 3/4"-14 NPT LH | 141 mm | 5.551" | 73.03 mm | 2.875" |
10 bar Water 6.9 bar Hot Oil 1 bar Steam 51.7 bar Water |
150 PSI Water 100 PSI Hot Oil 15 PSI Steam 750 PSI Water |
1000 RPM | |
|
|
257-230-020043 | 3/4"-14 NPT | 3/4"-14 NPT RH | 150.7 mm | 5.933" | 73.03 mm | 2.875" |
51.7 bar Water |
750 PSI Water |
1500 RPM | |
|
|

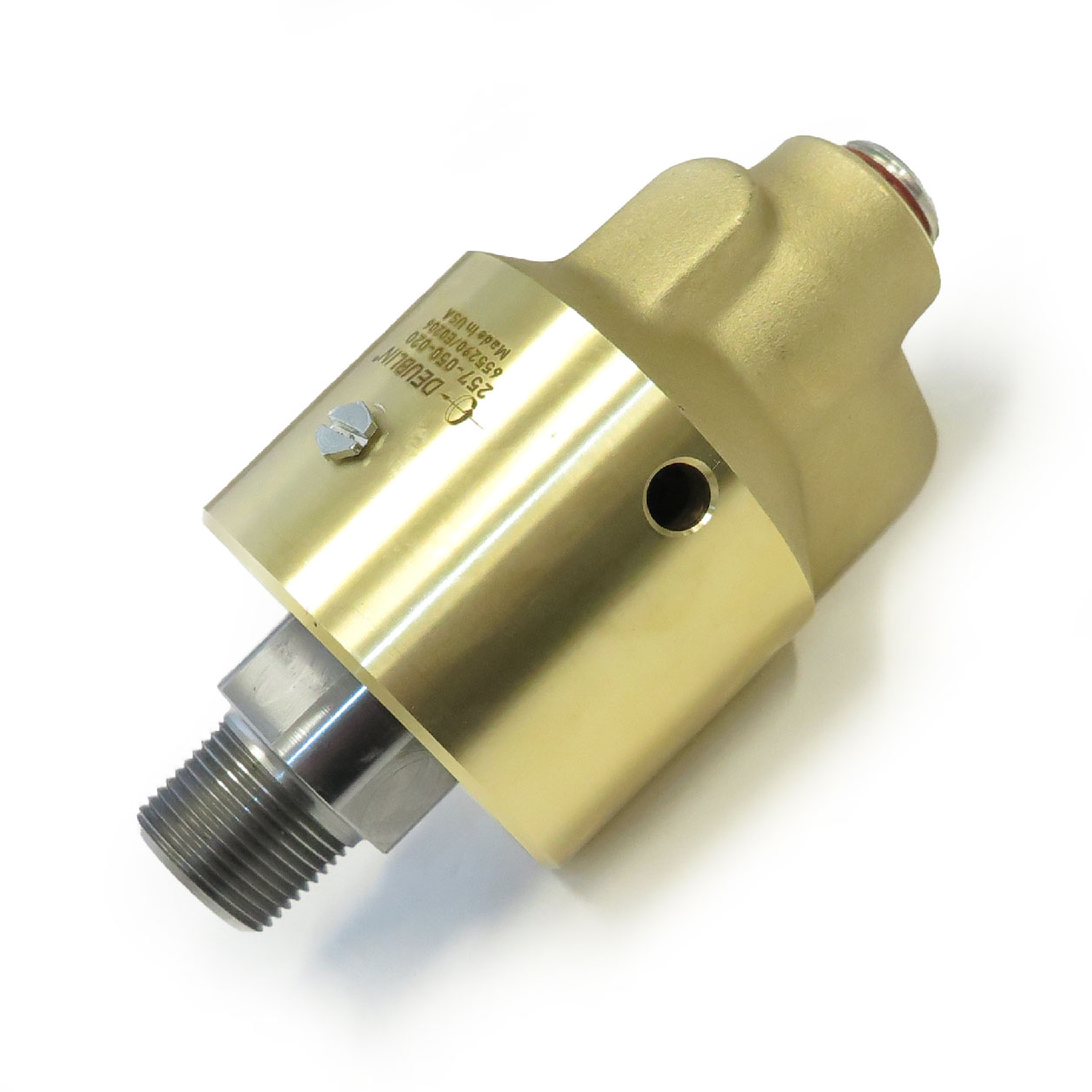

257-050-013 | 3/4"-14 NPT | M22x1.5 LH, 26.993 mm pilot | M22x1.5 LH, 1.063" pilot | 135 mm | 5.315" | 73.03 mm | 2.875" |
10 bar Water 6.9 bar Hot Oil 1 bar Steam 51.7 bar Water |
150 PSI Water 100 PSI Hot Oil 15 PSI Steam 750 PSI Water |
3500 RPM |
|
257-000-003 | 3/4"-14 NPT | 1"-14 UNS RH | 131.5 mm | 5.177" | 73.03 mm | 2.875" |
10 bar Water 6.9 bar Hot Oil 1 bar Steam 51.7 bar Water |
150 PSI Water 100 PSI Hot Oil 15 PSI Steam 750 PSI Water |
3500 RPM | |
|
|
257-000-168 | 3/4"-14 NPT | G 3/4"-14 LH, 35 mm pilot | G 3/4"-14 LH, 1.378" pilot | 134.8 mm | 5.307" | 73.03 mm | 2.875" |
6.9 bar Hot Oil 1 bar Steam 51.7 bar Water |
100 PSI Hot Oil 15 PSI Steam 750 PSI Water |
3500 RPM |
|
257-113-118 | 1/4"-18 NPT | 1"-14 UNS RH | 156 mm | 6.142" | 63.5 mm | 2.5" |
10 bar Water 6.9 bar Hot Oil 1 bar Steam 51.7 bar Water |
150 PSI Water 100 PSI Hot Oil 15 PSI Steam 750 PSI Water |
3500 RPM | |
|

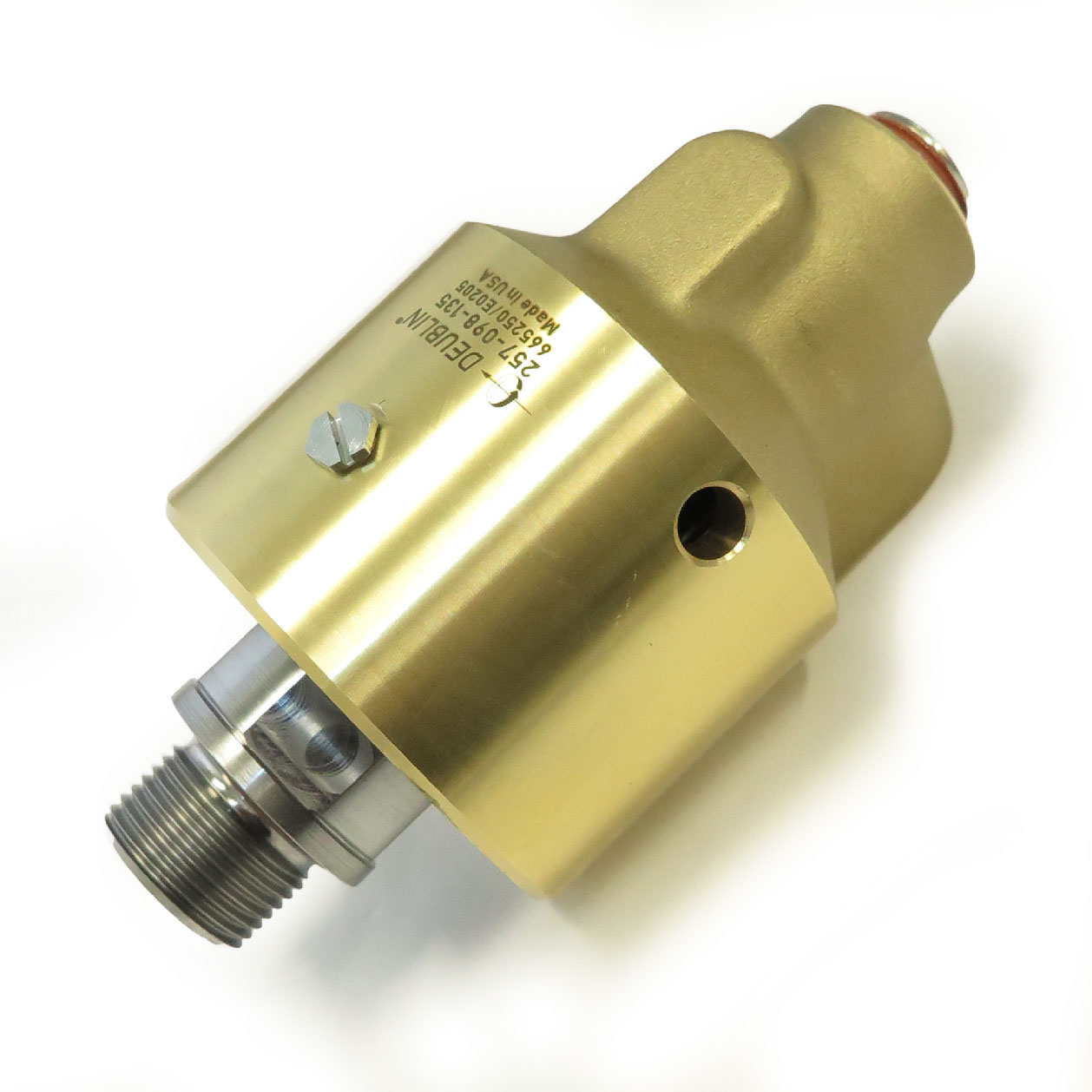

257-098-135290 | 1/2"-14 NPT | 1"-14 UNS RH | 170 mm | 6.693" | 73.03 mm | 2.875" |
10 bar Water 6.9 bar Hot Oil 1 bar Steam 51.7 bar Water |
150 PSI Water 100 PSI Hot Oil 15 PSI Steam 750 PSI Water |
3500 RPM | |
|
|
257-045-284075 | 3/4"-14 PT | G 3/4"-14 RH | 169.9 mm | 6.689" | 73.03 mm | 2.875" |
6.9 bar Hot Oil 1 bar Steam 51.7 bar Water |
100 PSI Hot Oil 15 PSI Steam 750 PSI Water |
3500 RPM |
