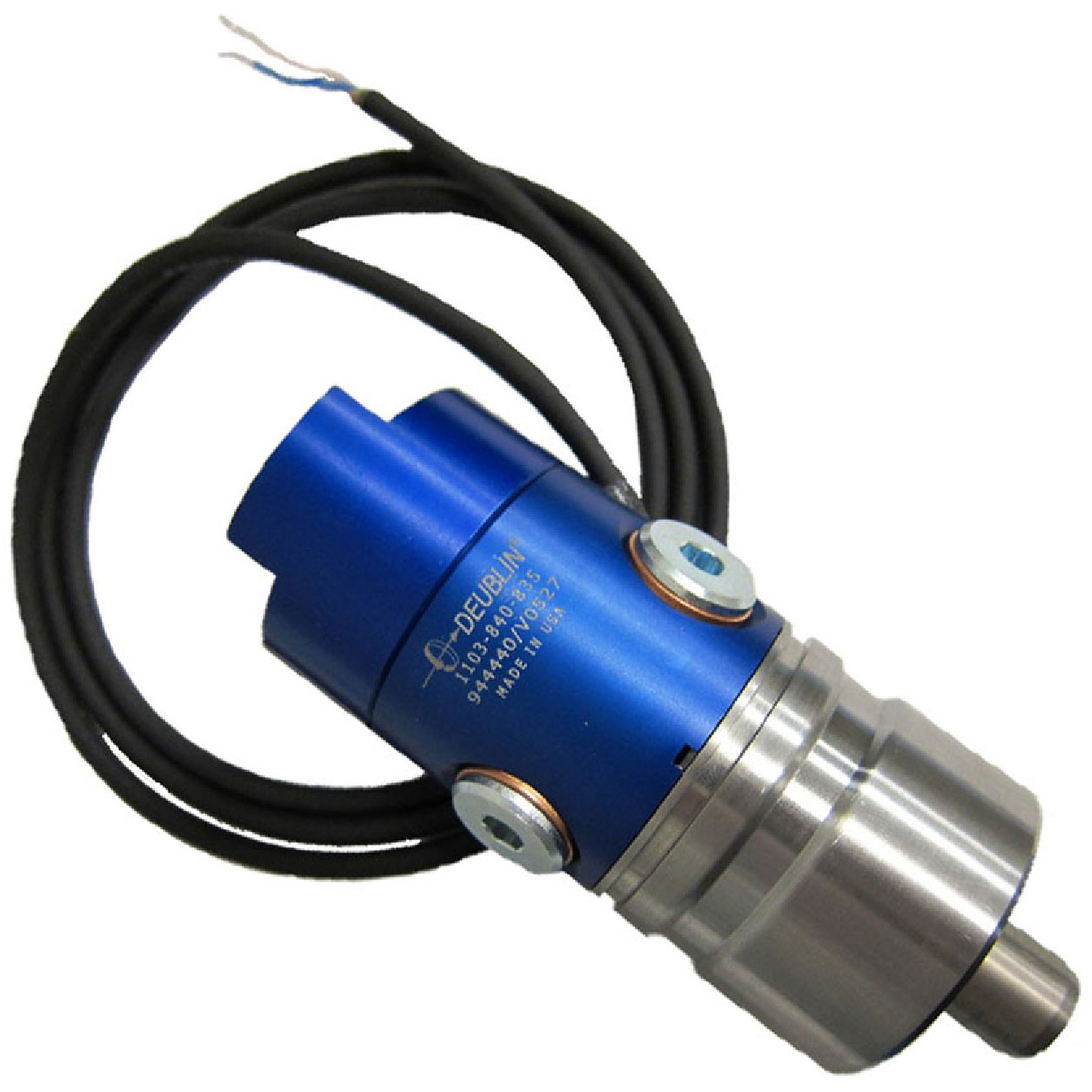

Union, Female Oct, 8 mm pilot, G 1/4"
1103-840-835
- Patented SpindleShield™ system reliably prevents expensive spindle failures by warning machine of leakage due to excessive seal wear
- Rotor-mounted and bore-mounted options
- Pop-Off™ technology allows unlimited dry running without media pressure
- Signal can be sent to unused relay on existing I/O board, and unassigned M-code can check status of that relay
- Includes test circuit that can be checked manually or programmed for machine to check automatically

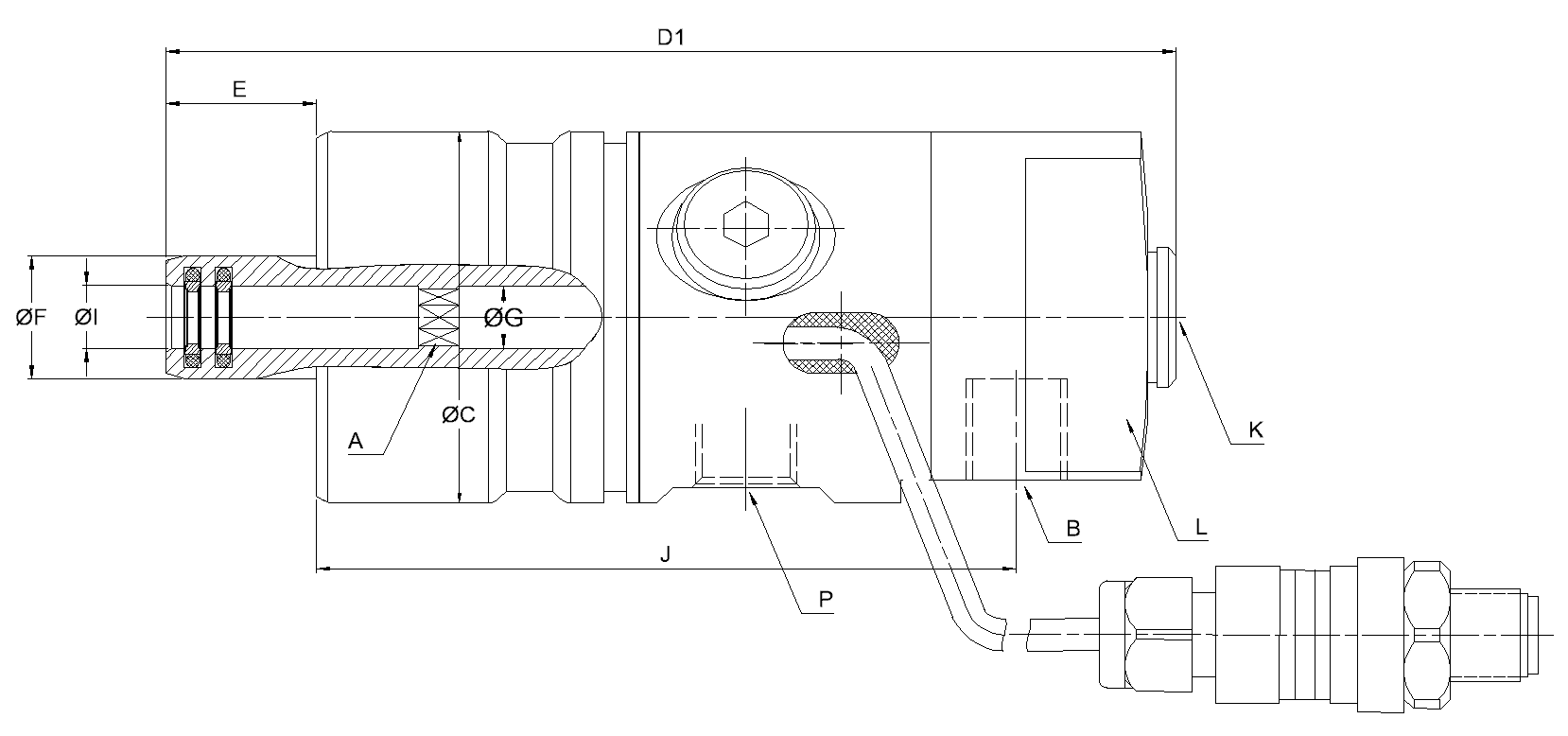

Dimensions
A
Female OctFemale Oct
B
G 1/4"-19G 1/4"-19
C
48 mm1.89 "
D1
131.5 mm5.177 "
E
19.5 mm0.768 "
F
19.5 mm0.768 "
G
8.1 mm0.319 "
I
8.1 mm0.319 "
J
90.6 mm4.252 "
K
G 1/4"-19G 1/4"-19
L
25 mm0.984 "
P
G 1/4"-19G 1/4"-19
Operating Specifications
Media
Coolant, MQLCoolant, MQL
Rotor Connection
Female Oct Female Oct
Supply Connection
G 1/4"-19 G 1/4"-19
Coolant Max. Flow
24.3 l/min6.4 GPM

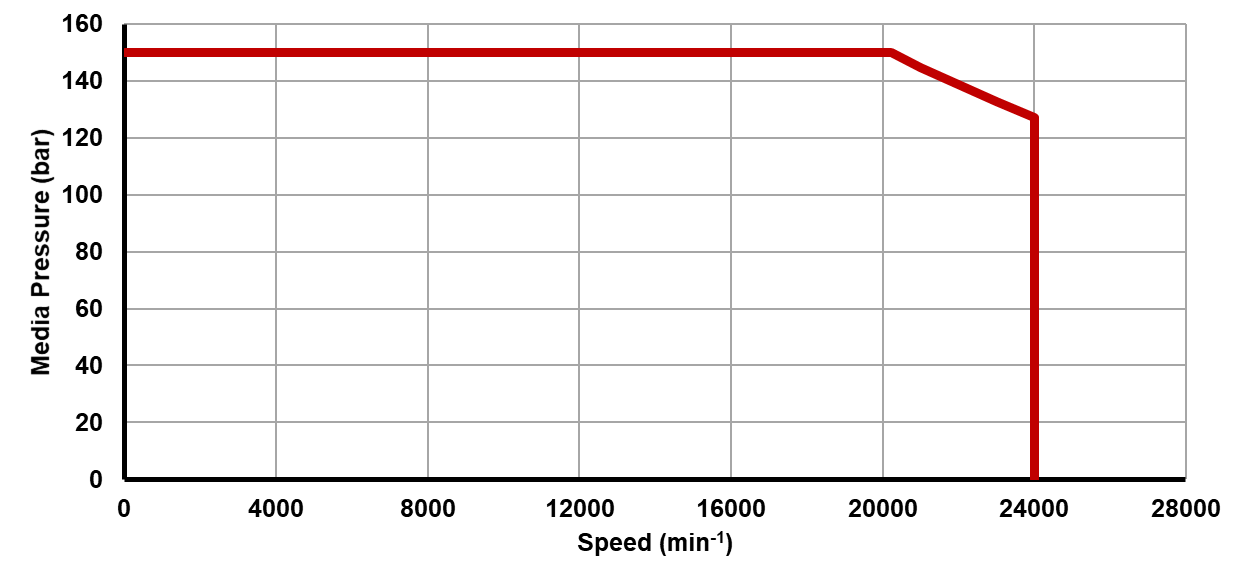

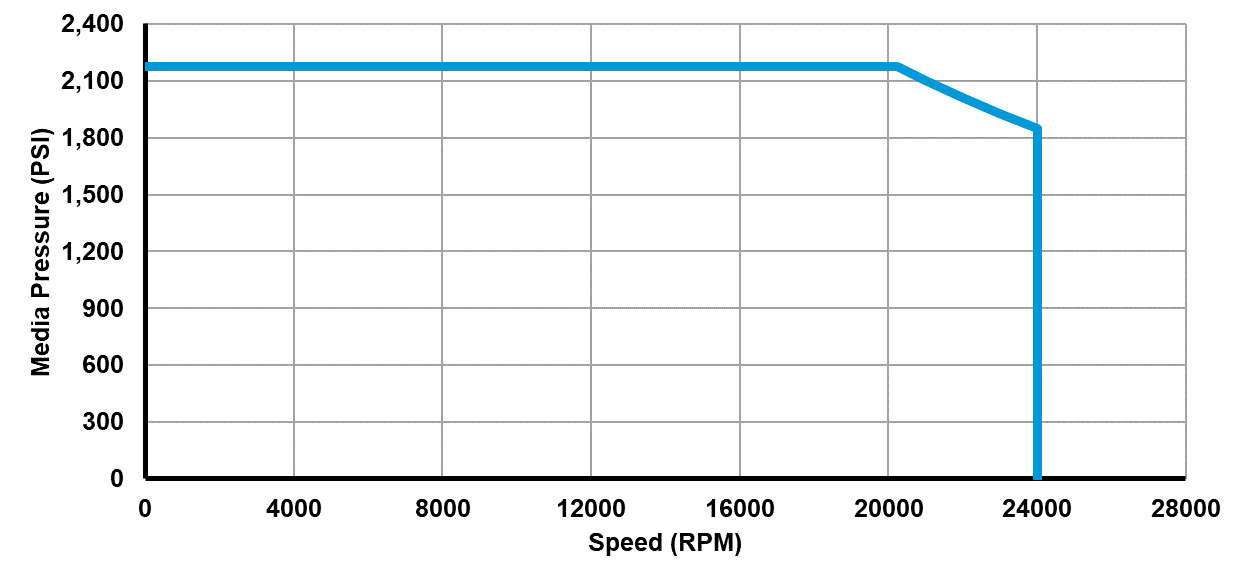

Coolant Max. Pressure
150 bar2175 psi
Coolant Max. Temperature
71 °C160 °F
MQL Max. Flow
608 l/min21.5 CFM
MQL Max. Pressure
10 bar150 psi
MQL Max. Temperature
71 °C160 °F
