Union, 1/2" NPT RH, 3/4" NPT
257-050-018
- Monoflow and duoflow design
- Self-supported rotating union
- Radial housing connection
- Balanced mechanical seals
- Keyed rotor seal
- Easy and quick replacement of sealing components
- Ball bearings lubricated for life
- E.L.S. (Extended Life Service) seal combination for poor water quality
- 3 vent holes
- Forged brass housing and stainless steel rotor
- Special options include threaded vent holes
Dimensions
A
1/2"-14 NPT RH1/2"-14 NPT RH
B
3/4"-14 NPT3/4"-14 NPT
C
75 mm2.953 "
D1
136.525 mm5.375 "
E
36.513 mm1.438 "
F
31.75 mm1.25 "
G
17.463 mm0.688 "
H
31.75 mm1.25 "
J
92.075 mm3.625 "
K
1/2"-14 NPT1/2"-14 NPT
P
Non-ThreadedNon-Threaded
Operating Specifications
Media
Hot Oil, Steam, WaterHot Oil, Steam, Water
Rotor Connection
1/2"-14 NPT RH 1/2"-14 NPT RH
Supply Connection
3/4"-14 NPT 3/4"-14 NPT
Hot Oil Max. Flow
52.8 l/min13.9 GPM
Hot Oil Max. Pressure
6.9 bar100 psi
Hot Oil Max. Temperature
121 °C250 °F
Steam Max. Flow
219.9 l/min58.1 GPM
Steam Max. Pressure
1 bar15 psi
Steam Max. Temperature
121 °C250 °F
Water Max. Flow
52.8 l/min13.9 GPM

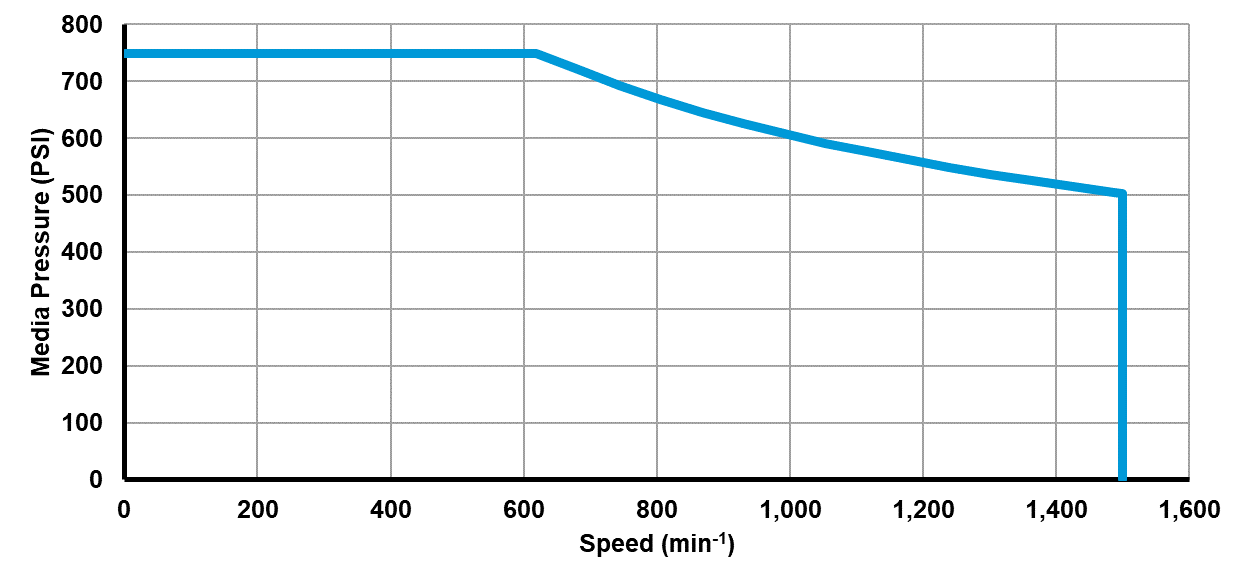

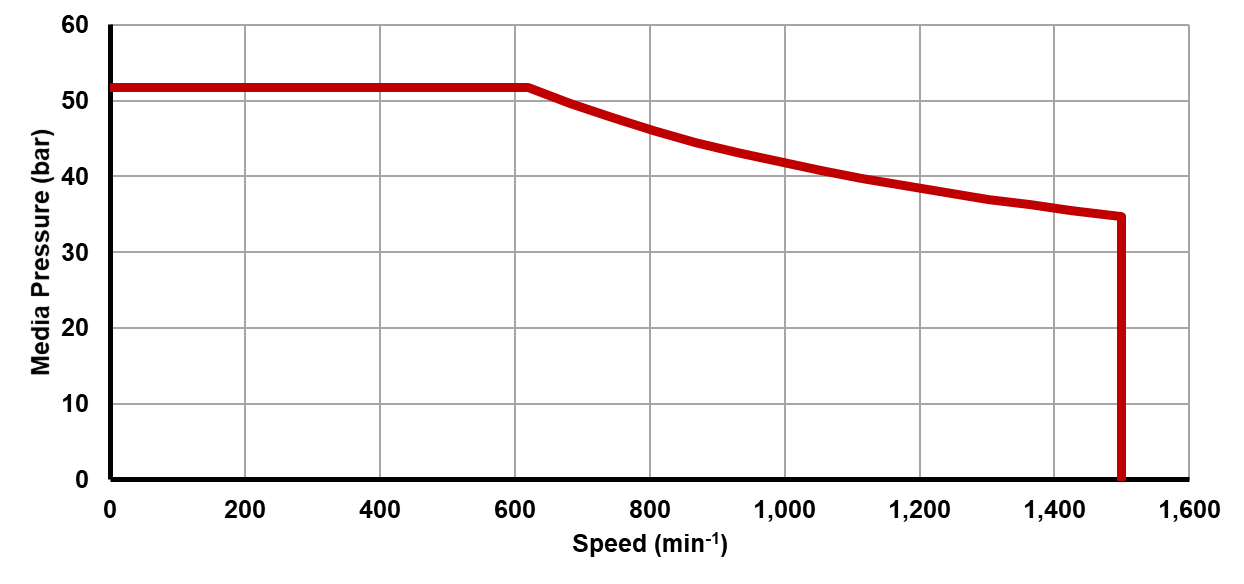

Water Max. Pressure
51.7 bar750 psi
Water Max. Temperature
121 °C250 °F
