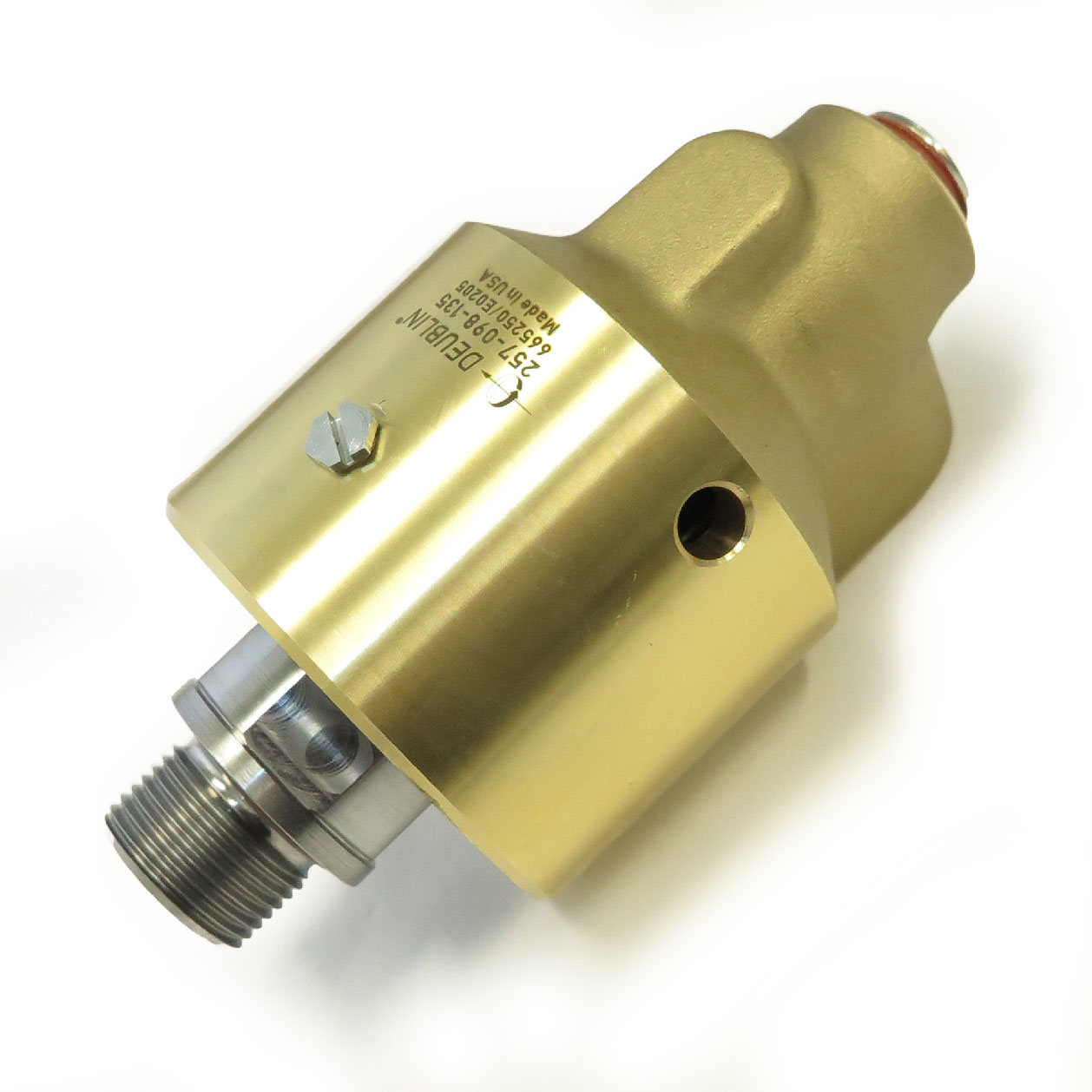

Union, 1" UNS RH, 1/2" NPT
257-098-135
- Monoflow and duoflow design
- Self-supported rotating union
- Radial housing connection
- Balanced mechanical seals
- Keyed rotor seal
- Easy and quick replacement of sealing components
- Ball bearings lubricated for life
- E.L.S. (Extended Life Service) seal combination for poor water quality
- 3 vent holes
- Forged brass housing and stainless steel rotor
- Special options include threaded vent holes
Dimensions
A
1"-14 UNS RH1"-14 UNS RH
B
1/2"-14 NPT1/2"-14 NPT
C
73.03 mm2.875 "
D1
141.7 mm5.579 "
E
33.8 mm1.331 "
F
17.4 mm0.685 "
G
17.5 mm0.689 "
H
32 mm1.26 "
J
94.3 mm3.713 "
K
1/2"-14 NPT1/2"-14 NPT
P
Non-ThreadedNon-Threaded
Operating Specifications
Media
Hot Oil, Steam, WaterHot Oil, Steam, Water
Rotor Connection
1"-14 UNS RH 1"-14 UNS RH
Supply Connection
1/2"-14 NPT 1/2"-14 NPT
Hot Oil Max. Flow
52.8 l/min13.9 GPM
Hot Oil Max. Pressure
6.9 bar100 psi
Hot Oil Max. Temperature
121 °C250 °F
Steam Max. Flow
219.9 l/min58.1 GPM
Steam Max. Pressure
1 bar15 psi
Steam Max. Temperature
121 °C250 °F
Water Max. Flow
52.8 l/min13.9 GPM
Water Max. Pressure
51.7 bar750 psi
Water Max. Temperature
121 °C250 °F
