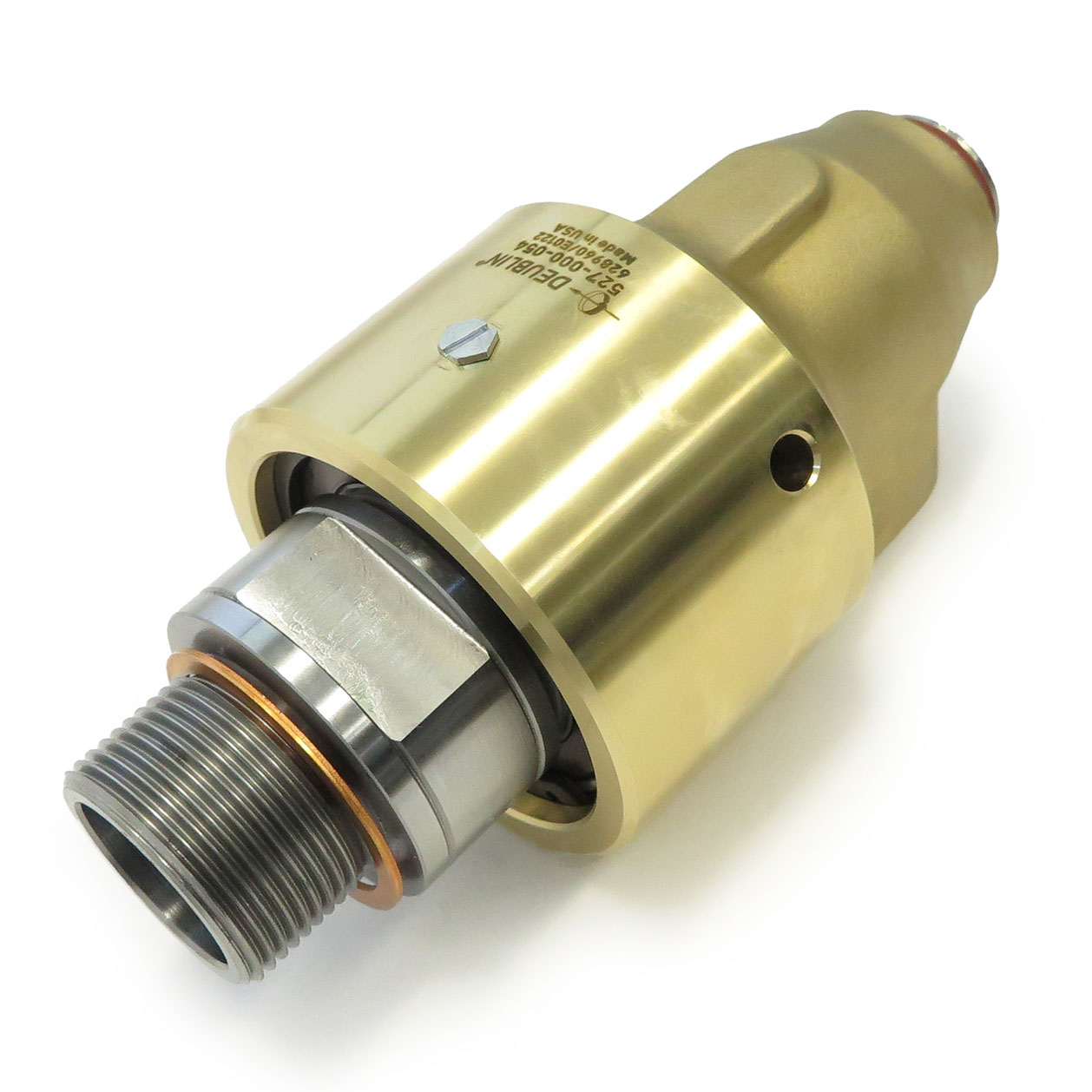

Union, G 1-1/4" RH, 1-1/4" NPT
527-000-054
- Monoflow and duoflow design
- Self-supported rotating union
- Radial housing connection
- Balanced mechanical seals
- Keyed rotor seal
- Easy and quick replacement of sealing components
- Ball bearings lubricated for life
- E.L.S. (Extended Life Service) seal combination for poor water quality
- 3 vent holes
- Forged brass housing and stainless steel rotor
- Special options include threaded vent holes

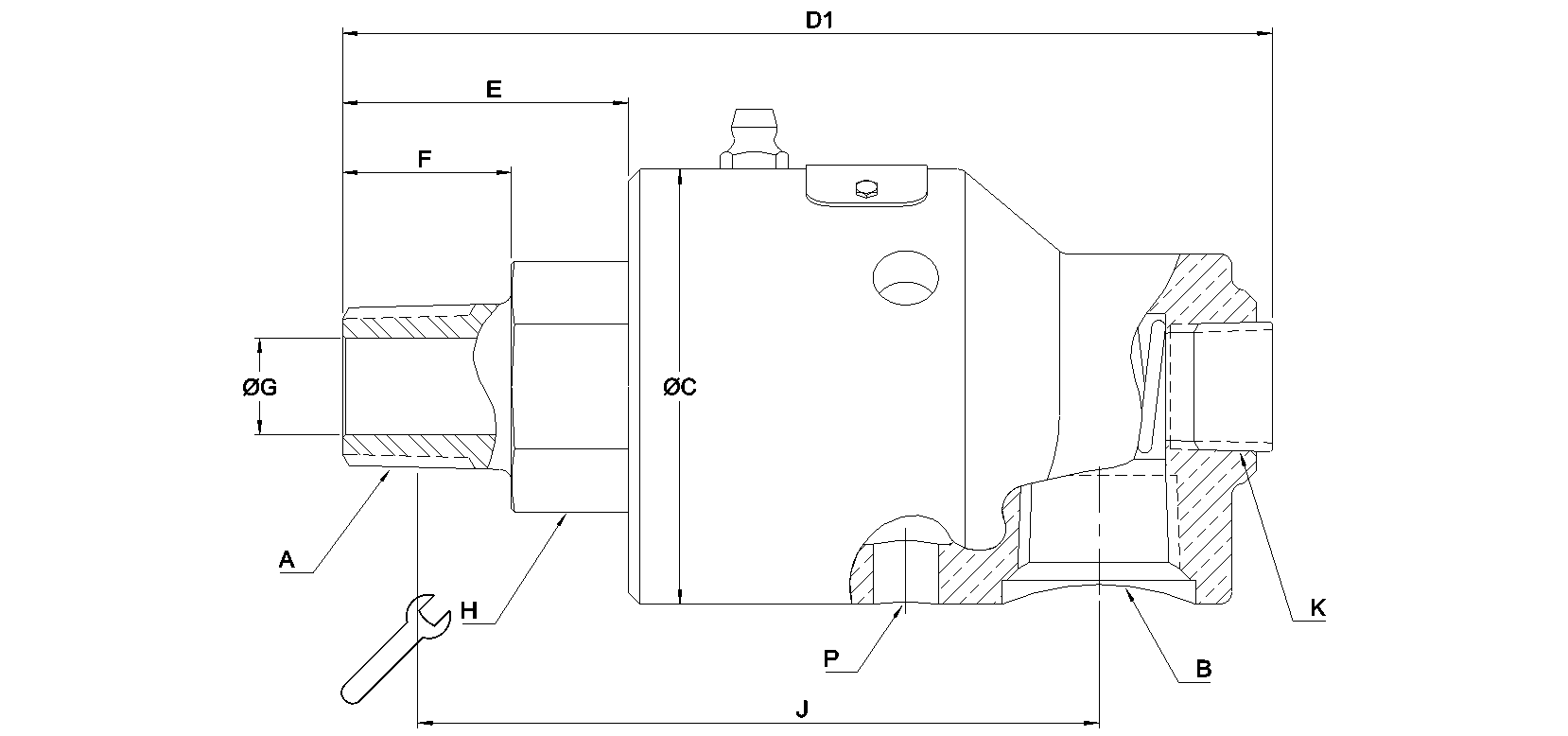

Dimensions
A
G 1-1/4"-11 RHG 1-1/4"-11 RH
B
1-1/4"-11.5 NPT1-1/4"-11.5 NPT
C
90.5 mm3.563 "
D1
193.9 mm7.634 "
E
54 mm2.126 "
F
27.8 mm1.094 "
G
31.8 mm1.252 "
H
46 mm1.811 "
J
119.2 mm4.693 "
K
1"-11.5 NPT1"-11.5 NPT
P
Non-ThreadedNon-Threaded

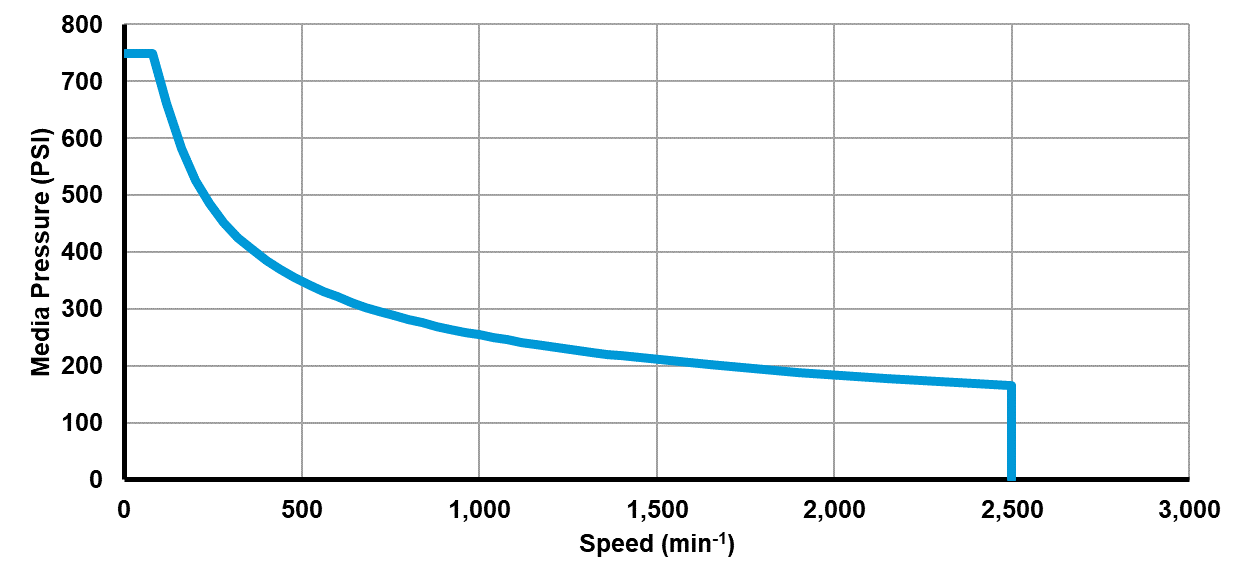

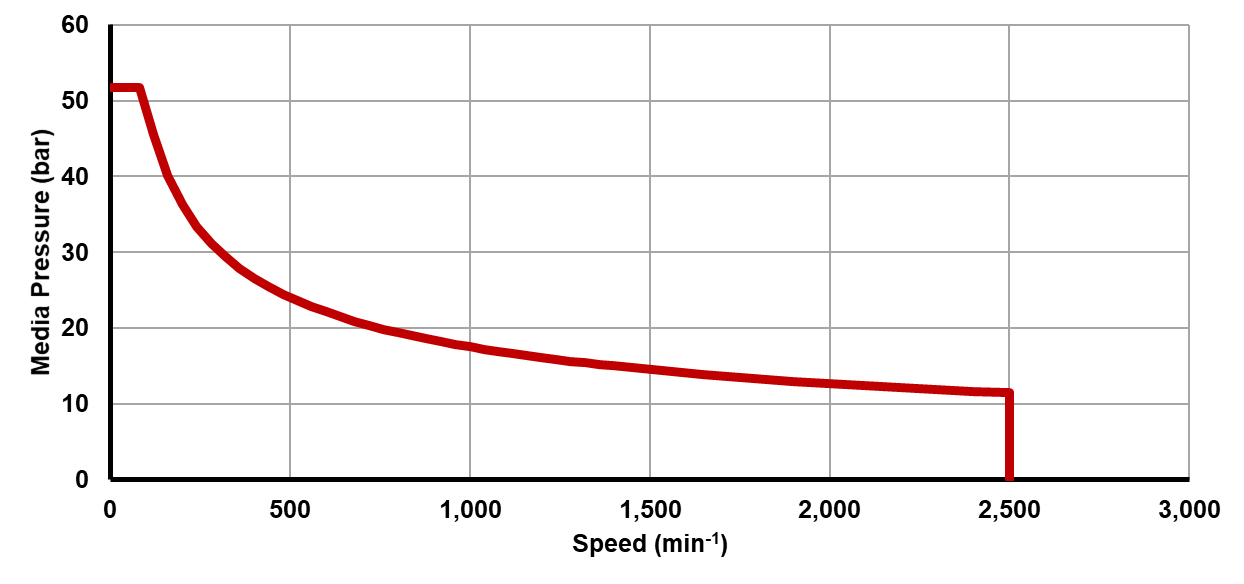

Operating Specifications
Media
WaterWater
Rotor Connection
G 1-1/4"-11 RH G 1-1/4"-11 RH
Supply Connection
1-1/4"-11.5 NPT 1-1/4"-11.5 NPT
Water Max. Flow
174.3 l/min46 GPM
Water Max. Pressure
10 bar150 psi
Water Max. Temperature
93 °C195 °F
