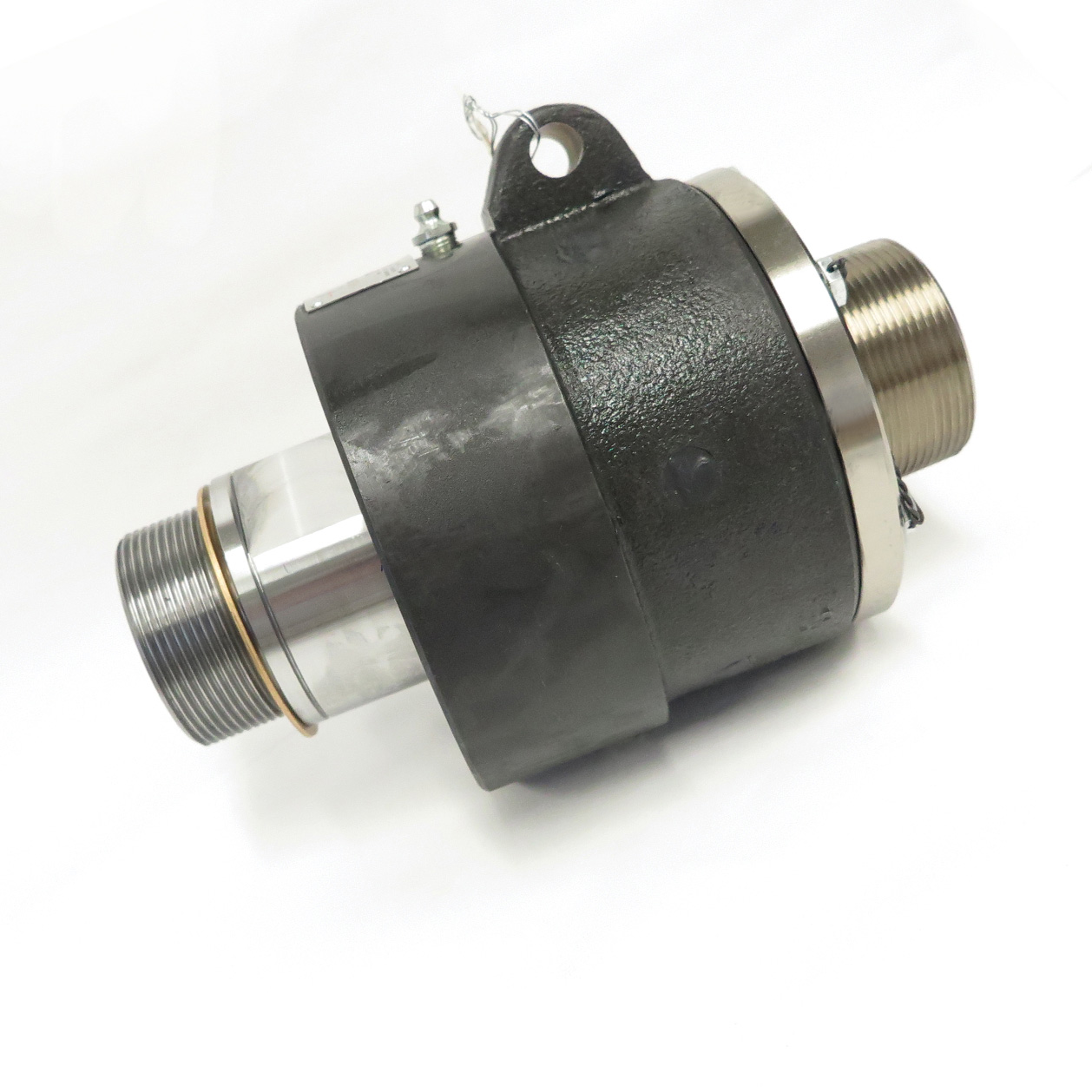

Union, G 2" RH, 2" NPT
6200-044-137
- Monoflow and duoflow design
- Self-supported rotating union
- Radial housing connection
- Balanced mechanical seals
- Steel-banded floating seal
- Easy and quick replacement of sealing components
- Full-media flow
- Vent slots
- Cast iron housing
- Steel rotor flanged/threaded
- Seal Combinations: Carbon Graphite/Tungsten Carbide standard, Silicon Carbide/Tungsten Carbide for severe conditions such as poor water quality
Dimensions
A
G 2"-11 RHG 2"-11 RH
B
2"-11.5 NPT2"-11.5 NPT
C
133.4 mm5.252 "
D1
211.1 mm8.311 "
E
64.9 mm2.555 "
F
28.6 mm1.126 "
G
47.6 mm1.874 "
H
60 mm2.362 "
J
186.1 mm7.327 "
P
Non-ThreadedNon-Threaded
Operating Specifications
Media
WaterWater
Rotor Connection
G 2"-11 RH G 2"-11 RH
Supply Connection
2"-11.5 NPT 2"-11.5 NPT
Water Max. Pressure
10 bar150 psi
Water Max. Temperature
121 °C250 °F
