Union, G 2-1/2" RH, 2-1/2" NPT
6250-066-121
- Monoflow and duoflow design
- Self-supported rotating union
- Radial housing connection
- Balanced mechanical seals
- Steel-banded floating seal
- Easy and quick replacement of sealing components
- Full-media flow
- Vent slots
- Cast iron housing
- Steel rotor flanged/threaded
- Seal Combinations: Carbon Graphite/Tungsten Carbide standard, Silicon Carbide/Tungsten Carbide for severe conditions such as poor water quality

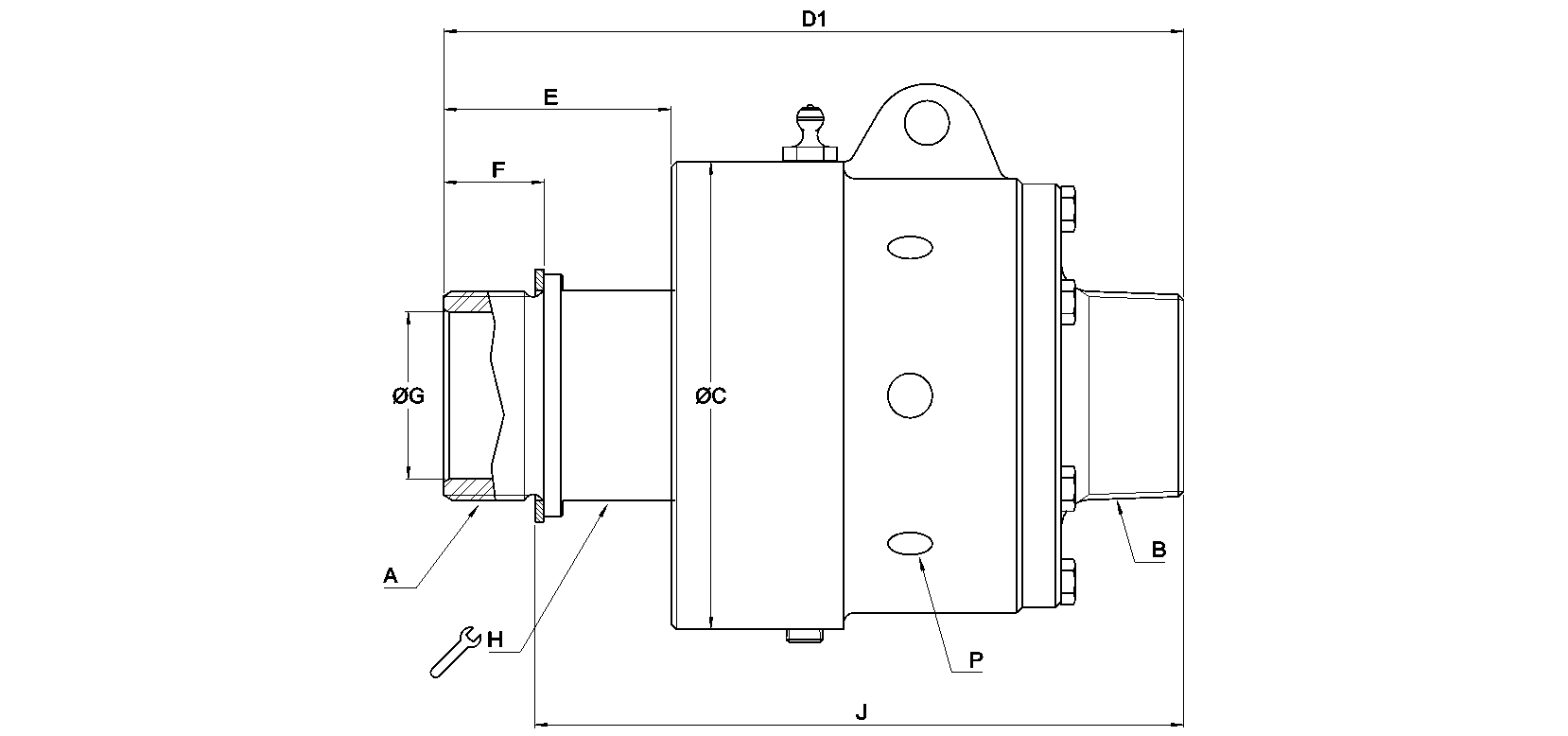

Dimensions
A
G 2-1/2"-11 RHG 2-1/2"-11 RH
B
2-1/2"-8 NPT2-1/2"-8 NPT
C
178 mm7.008 "
D1
274 mm10.787 "
E
86 mm3.386 "
F
38 mm1.496 "
G
60.3 mm2.374 "
H
83.3 mm3.28 "
J
236 mm9.291 "
P
Non-ThreadedNon-Threaded
Operating Specifications
Media
WaterWater
Rotor Connection
G 2-1/2"-11 RH G 2-1/2"-11 RH
Supply Connection
2-1/2"-8 NPT 2-1/2"-8 NPT
Water Max. Pressure
10 bar150 psi
Water Max. Temperature
121 °C250 °F
Documents & Resources
Installation Guide
Installation Guide for 6000 and 6005 series
Interface Drawing
Interface Control drawing for 6250-066-121
Operating Manual
Operating Manual for 6000-series unions
Service Guide
Service Guide for unions beginning with 620X to 640X
