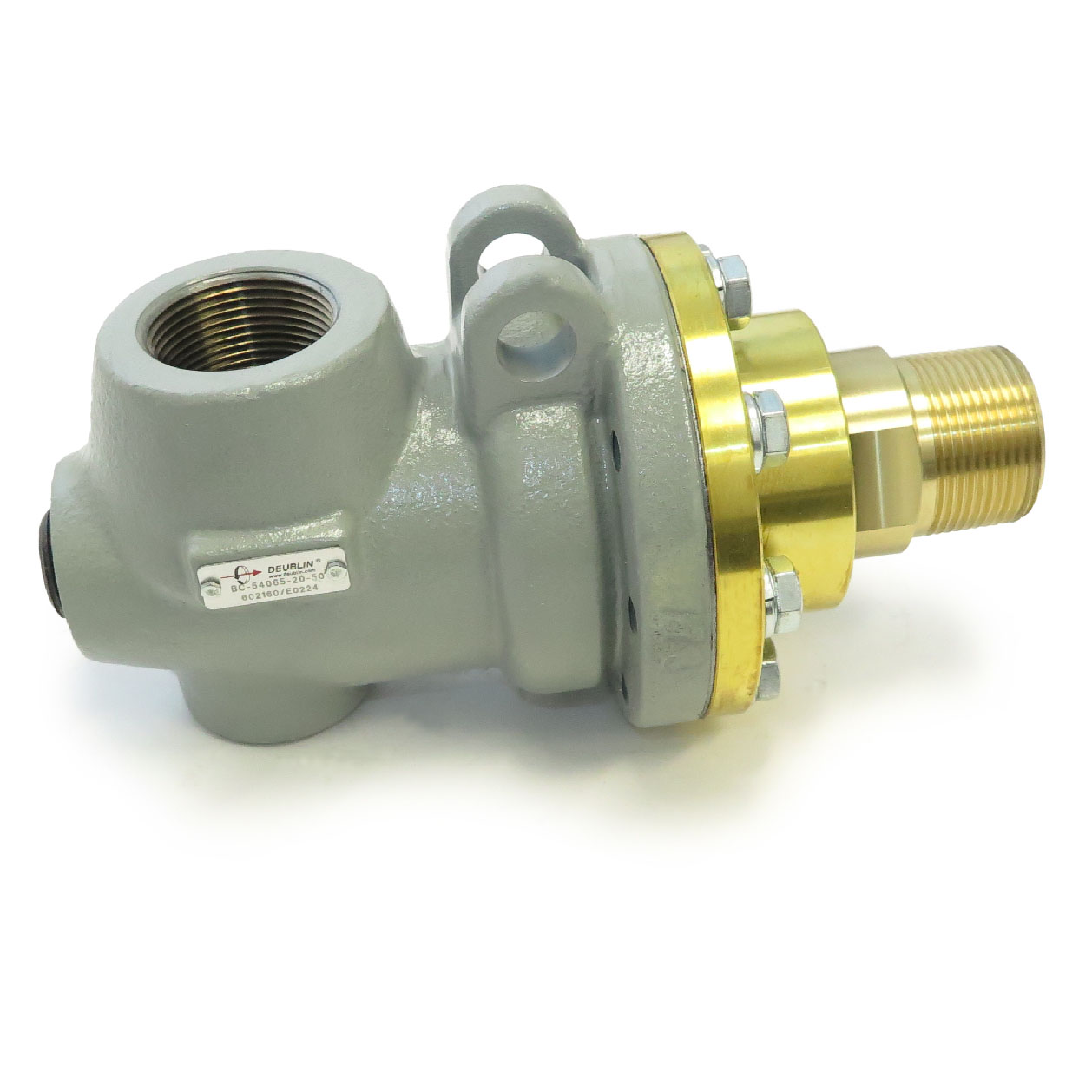

Type C Bronze Pressure Joint, 1-1/4" Duo-flow Fixed Siphon
BC-54065-20-50
- Type "C" and "CF" duoflow with fixed siphon for water, brine and low-pressure steam service.
- Two widely spaced carbon bearings provide greater support to the siphon pipe and hoses.
- High-density carbon seal under compression adds strength and shock resistance for exceptionally long service life.
- External seal wear indicator allows for planned maintenance, reducing expensive downtime.
- All metal wear parts are bronze for excellent corrosion resistance.
- Iron housing, bronze sleeve and end cap, stainless steel spring and spring guides.
- Available in 1/2" through 3" sizes.
Dimensions
A
1-1/4"-11.5 NPT RH1-1/4"-11.5 NPT RH
B
1-1/4"-11.5 NPT1-1/4"-11.5 NPT
C
111 mm4.37 "
D1
218 mm8.583 "
E
50 mm1.969 "
F
25 mm0.984 "
G
31.7 mm1.248 "
H
42.87 mm1.688 "
J
169 mm6.654 "
K
3/4"-14 NPT3/4"-14 NPT
R
184 mm7.244 "
S3
ThreadedThreaded
Operating Specifications
Media
Steam, WaterSteam, Water
Rotor Connection
1-1/4"-11.5 NPT RH 1-1/4"-11.5 NPT RH
Supply Connection
1-1/4"-11.5 NPT 1-1/4"-11.5 NPT
Steam Max. Pressure
8.3 bar120 psi
Steam Max. Temperature
178 °C350 °F
Water Max. Pressure
13.8 bar200 psi
Water Max. Temperature
178 °C350 °F
Documents & Resources
Installation Guide
Installation Guide for Type C and Type G
Interface Drawing
Interface Control drawing for BC-54065-20-50
Service Guide
Service Guide for Type C and Type G pressure joints
