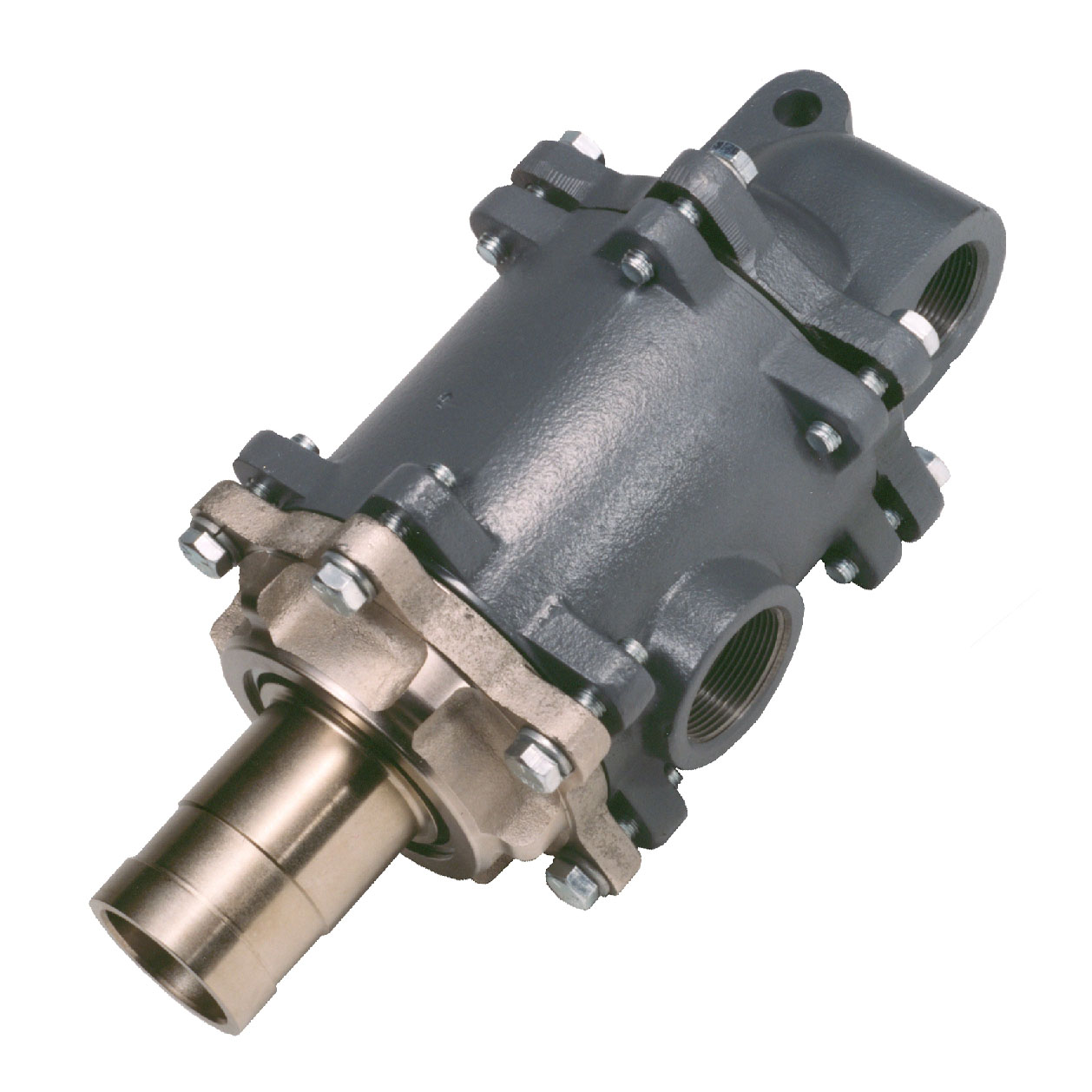

Type GR Pressure Joint, 2-1/2" QR, 1" Siphon
BC-56344-40-62
- Carbon seal under compression handles pressure surges and promotes longer life.
- Sleeves are dual-driven by two keys to give greater resistance to side load and eccentric motion.
- External seal wear indicator for preventive maintenance.
- All wear surfaces are treated for improved corrosion resistance.
- Directly interchangeable with competitive designs.

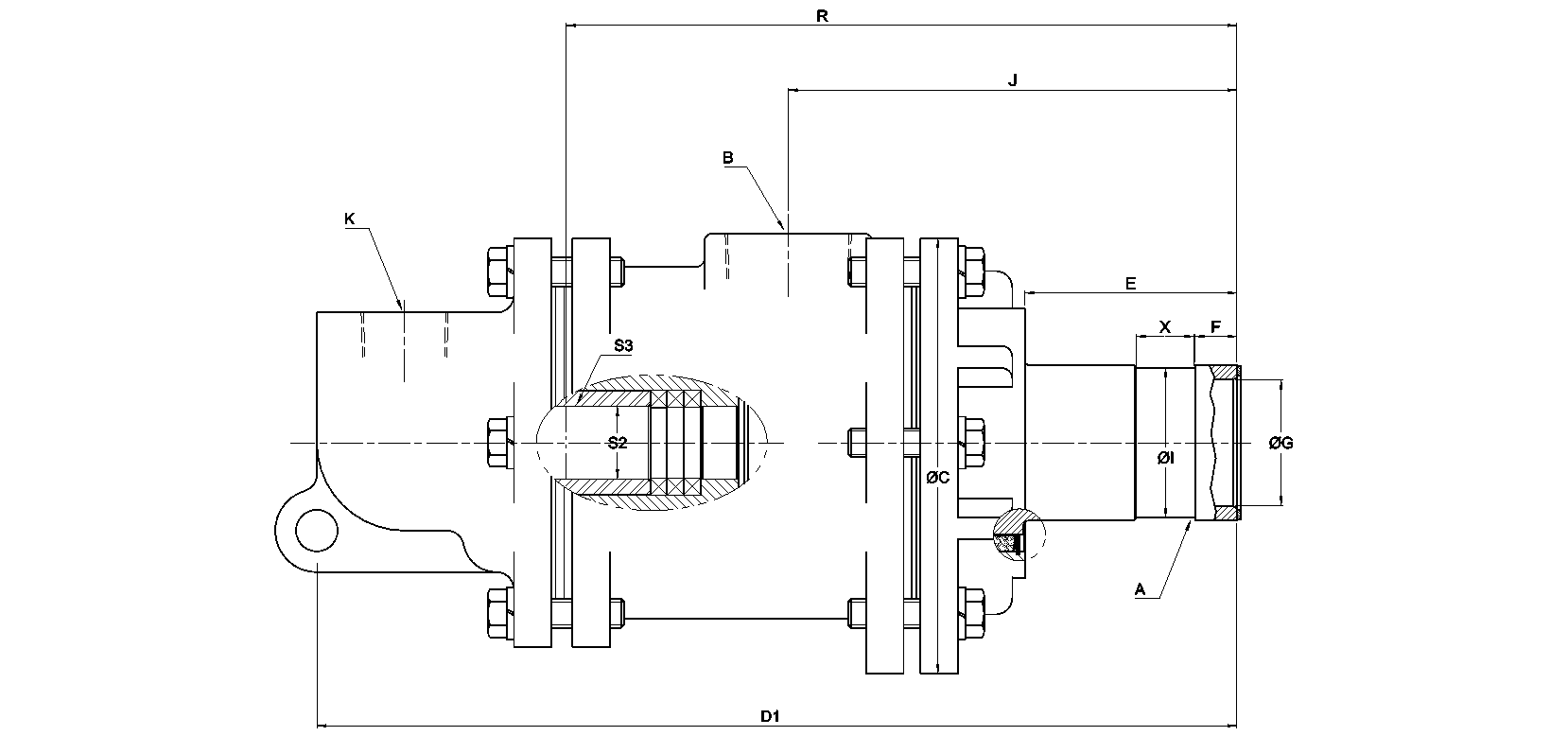

Dimensions
A
Quick ConnectQuick Connect
B
2"-11.5 NPT2"-11.5 NPT
C
179 mm7.047 "
D1
373.4 mm14.701 "
E
81 mm3.189 "
F
19 mm0.748 "
G
60 mm2.362 "
I
72.034 mm2.836 "
J
181 mm7.126 "
K
1"-11.5 NPT1"-11.5 NPT
R
294.7 mm11.602 "
S2
35 mm1.378 "
S3
BrazedBrazed
X
29.6 mm1.165 "
Operating Specifications
Media
SteamSteam
Rotor Connection
Quick Connect Quick Connect
Supply Connection
2"-11.5 NPT 2"-11.5 NPT
Steam Max. Pressure
10 bar150 psi
Steam Max. Temperature
185 °C365 °F
Documents & Resources
Installation Guide
Installation Guide for Type C and Type G
Service Guide
Service Guide for Type C and Type G pressure joints
