Union, CCM duoflow, fits 71 mm bore, G 1"

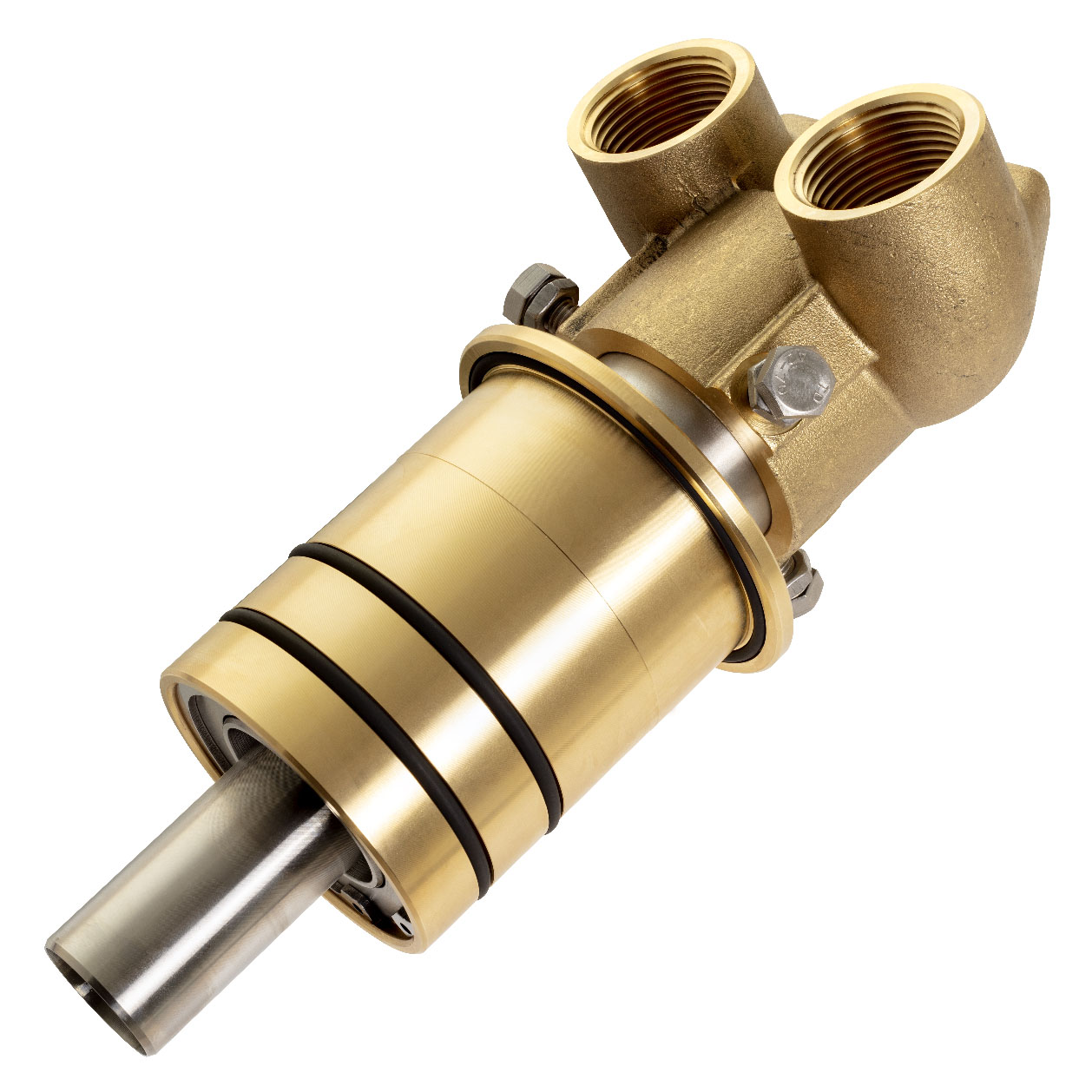

Product photo

2440-001-306254

  • Monoflow and duoflow design
  • In-the-shaft mounted
  • Self-supported rotating union
  • Flanged housing or mounted with retaining plate
  • Balanced mechanical seals
  • Seal combination: Silicon Carbide/Silicon Carbide
  • Brass housing and elbow
  • Stainless steel rotor and supply pipe
  • Engineered sleeve bearing
  • Full-media flow
  • Easily field repairable

Dimensions

A
85.8 mm
B
G 1"-11
C
70.8 mm
D1
185 mm
E
155 mm
F
135 mm
G
25 mm
I
70.8 mm
J
68 mm
K
O
S3
Fixed
X
10.8 mm

Operating Specifications

Consult Deublin if operating pressure and speed both are close to maximum rating
Media
Water
Rotor Connection
85.8 mm
Supply Connection
G 1"-11
Water Max. Flow
110 l/min
Water Max. Pressure
10 bar
Water Max. Temperature
121 °C

Documents & Resources

Installation Guide
Installation Guide for 2400-series CCM unions
Interface Drawing
Interface Control drawing for 2440-001-306254
Operating Manual
Operating Manual for 2400-series CCM unions
Service Guide
Service Guide for 2400-series unions
