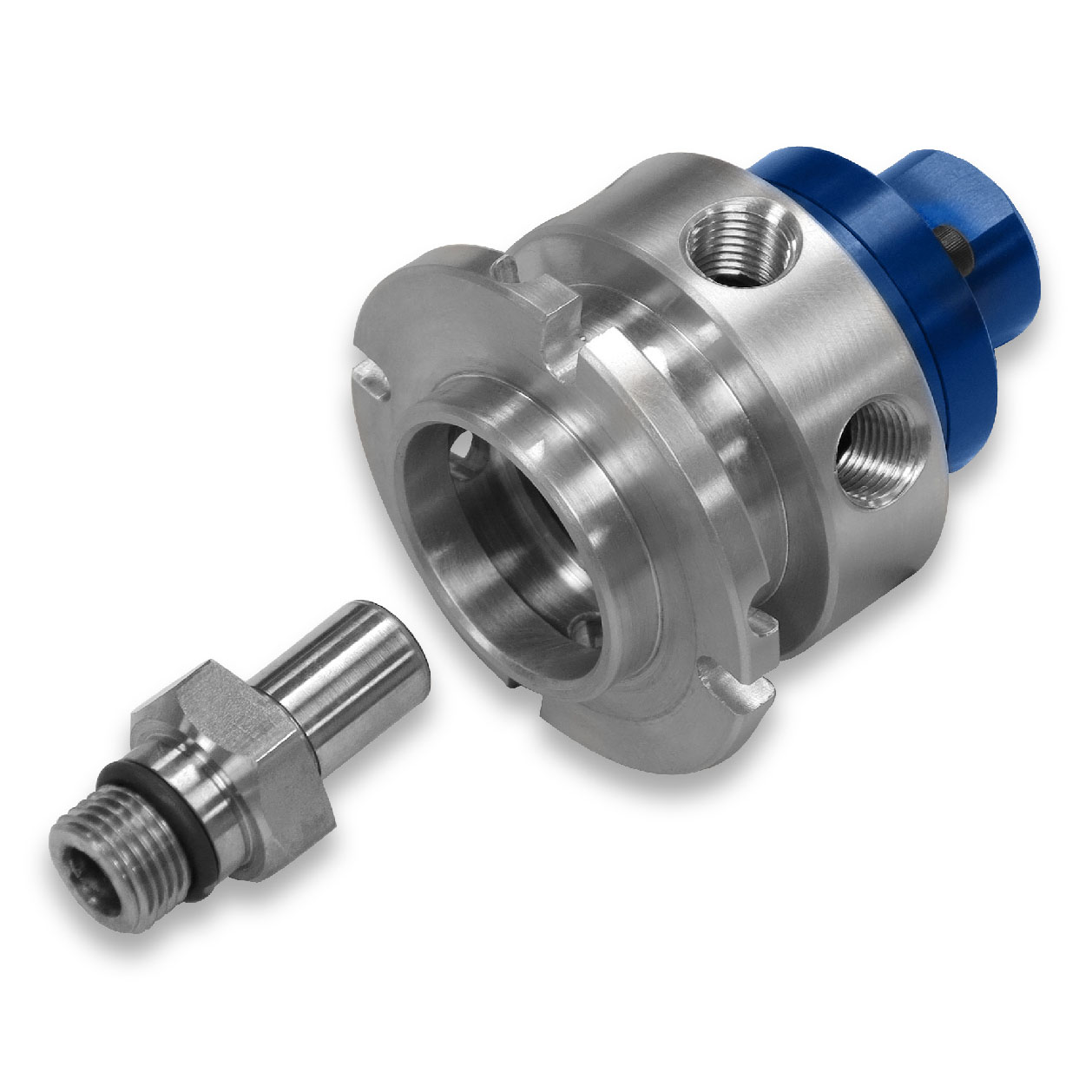

Union, Pop-Off Bearingless, M16x1.5 LH, 18 mm pilot
9210-002-104
- Single passage for coolant or MQL
- Pop-Off™ technology allows unlimited dry running without media pressure
- Pop-off stroke of 0.7-3.0 mm compensates for thermal expansion of spindle during extended operation as well as variations in drawbar position
- Full-flow design has no obstructions to trap swarf or debris
- Balanced mechanical seals made from silicon carbide for long life even under difficult operating conditions
- Anodized aluminum housing resists corrosion
Dimensions
A
M16x1.5 LHM16x1.5 LH
B
3/8"-19 PT3/8"-19 PT
C
59 mm2.323 "
D1
88 mm3.465 "
E
9.3 mm0.366 "
F
16.3 mm0.642 "
G
8.7 mm0.343 "
H
24 mm0.945 "
I
17.993 mm0.708 "
K
1/4"-19 PT1/4"-19 PT
O
0
P
Non-ThreadedNon-Threaded
X
4.7 mm0.185 "
Operating Specifications
Media
Air, CoolantAir, Coolant
Rotor Connection
M16x1.5 LH M16x1.5 LH
Supply Connection
3/8"-19 PT 3/8"-19 PT
Air Max. Flow
2550 l/min90.1 CFM
Air Max. Pressure
10 bar150 psi
Air Max. Temperature
121 °C250 °F
Coolant Max. Flow
82 l/min21.7 GPM
Coolant Max. Pressure
70 bar1015 psi
Coolant Max. Temperature
121 °C250 °F
Documents & Resources
Installation Guide
Installation Guide for 9210-002-104 union
Interface Drawing
Interface Control drawing for 9210-002-104
