Union, CCM duoflow, fits 59 mm bore, G 3/4"

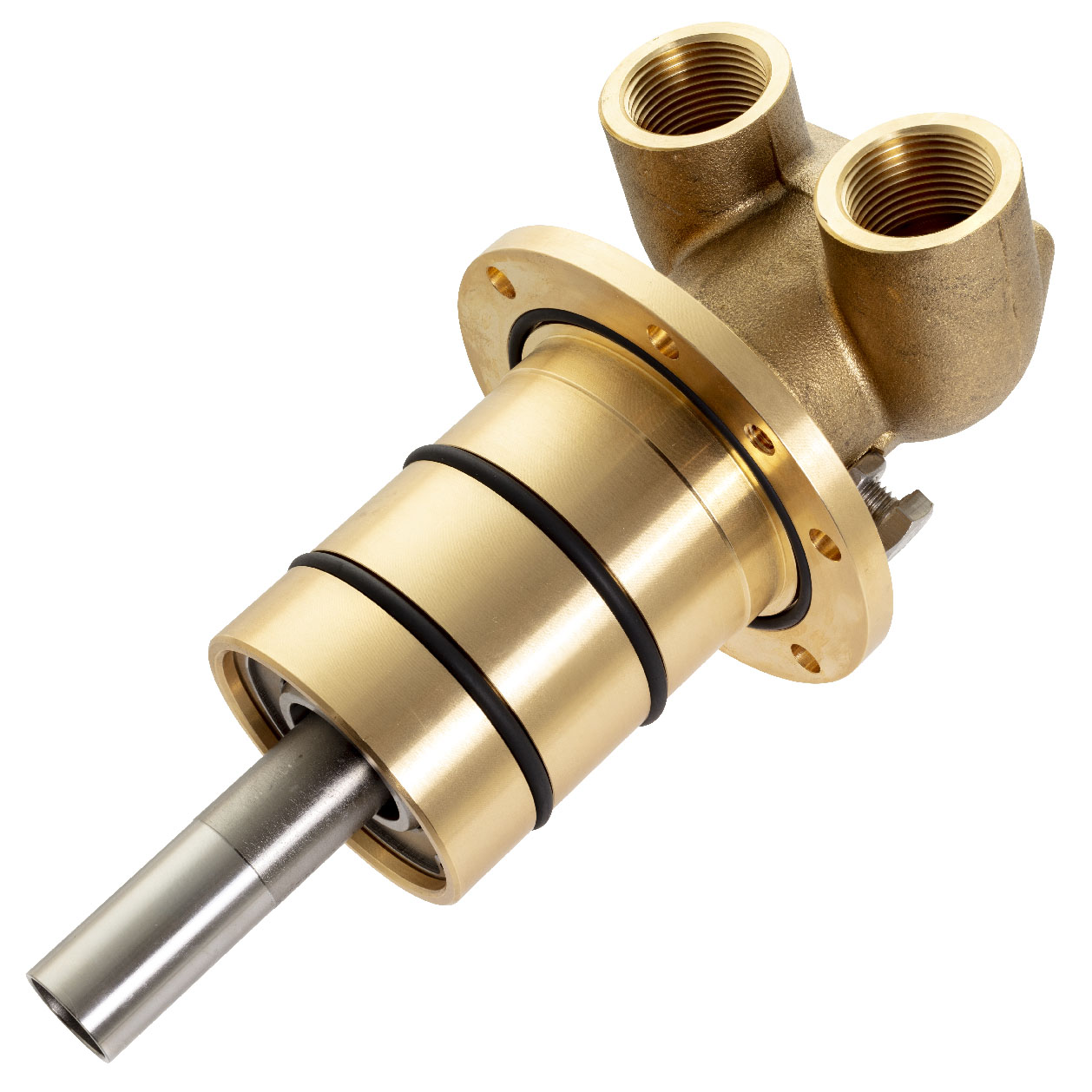

Product photo

2425-003-177494

  • Monoflow and duoflow design
  • In-the-shaft mounted
  • Self-supported rotating union
  • Flanged housing or mounted with retaining plate
  • Balanced mechanical seals
  • Seal combination: Silicon Carbide/Silicon Carbide
  • Brass housing and elbow
  • Stainless steel rotor and supply pipe
  • Engineered sleeve bearing
  • Full-media flow
  • Easily field repairable

Dimensions

Selected dimensions for this product
A
94.78 mm
B
G 3/4"-14
C
58.67 mm
D1
205 mm
E
149 mm
F
135 mm
G
17 mm
I
58.67 mm
J
38 mm
K
G 3/4"-14
R
187 mm
S3
Rotating
X
8.6 mm

Operating Specifications

Consult Deublin if operating pressure and speed both are close to maximum rating
Media
Water
Rotor Connection
94.78 mm
Supply Connection
G 3/4"-14
Water Max. Pressure
10 bar
Water Max. Temperature
121 °C

Documents & Resources

Installation Guide
Installation Guide for 2400-series CCM unions
Interface Drawing
Interface Control drawing for 2425-003-177494
Operating Manual
Operating Manual for 2400-series CCM unions
Service Guide
Service Guide for 2400-series unions
