| Deublin Part Number | Supply Connection | Rotor Connection | Overall Length | Housing Diameter | Maximum Pressure and Media | Maximum Speed | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
|
1101-195-343 | G 3/8"-19 | M16x1.5 LH, 17.993 mm pilot | M16x1.5 LH, 0.708" pilot | 102 mm | 4.016" | 42.85 mm | 1.687" |
103.4 bar Coolant |
1500 PSI Coolant |
15000 RPM |
|
1101-339-259 | 3/8"-18 NPT | M16x1.5 LH, 16.025 mm pilot | M16x1.5 LH, 0.631" pilot | 96 mm | 3.78" | 42.85 mm | 1.687" |
103.4 bar Coolant |
1500 PSI Coolant |
15000 RPM |
|
|
1101-338-259 | 3/8"-18 NPT | M16x1.5 LH, 16.025 mm pilot | M16x1.5 LH, 0.631" pilot | 96 mm | 3.78" | 42.85 mm | 1.687" |
103.4 bar Coolant |
1500 PSI Coolant |
15000 RPM |
|
1101-202-651 | 3/8"-19 PT | M16x1.5 LH, 17.99 mm pilot | M16x1.5 LH, 0.708" pilot | 110 mm | 4.331" | 42.85 mm | 1.687" |
10 bar Air 103.4 bar Coolant |
150 PSI Air 1500 PSI Coolant |
12000 RPM |
|
|
1101-654-646 | 3/8"-18 NPT | M12x1.25 LH, 14 mm pilot | M12x1.25 LH, 0.551" pilot | 95.95 mm | 3.778" | 42.85 mm | 1.687" |
140 bar Water |
2030 PSI Water |
2500 RPM |
|

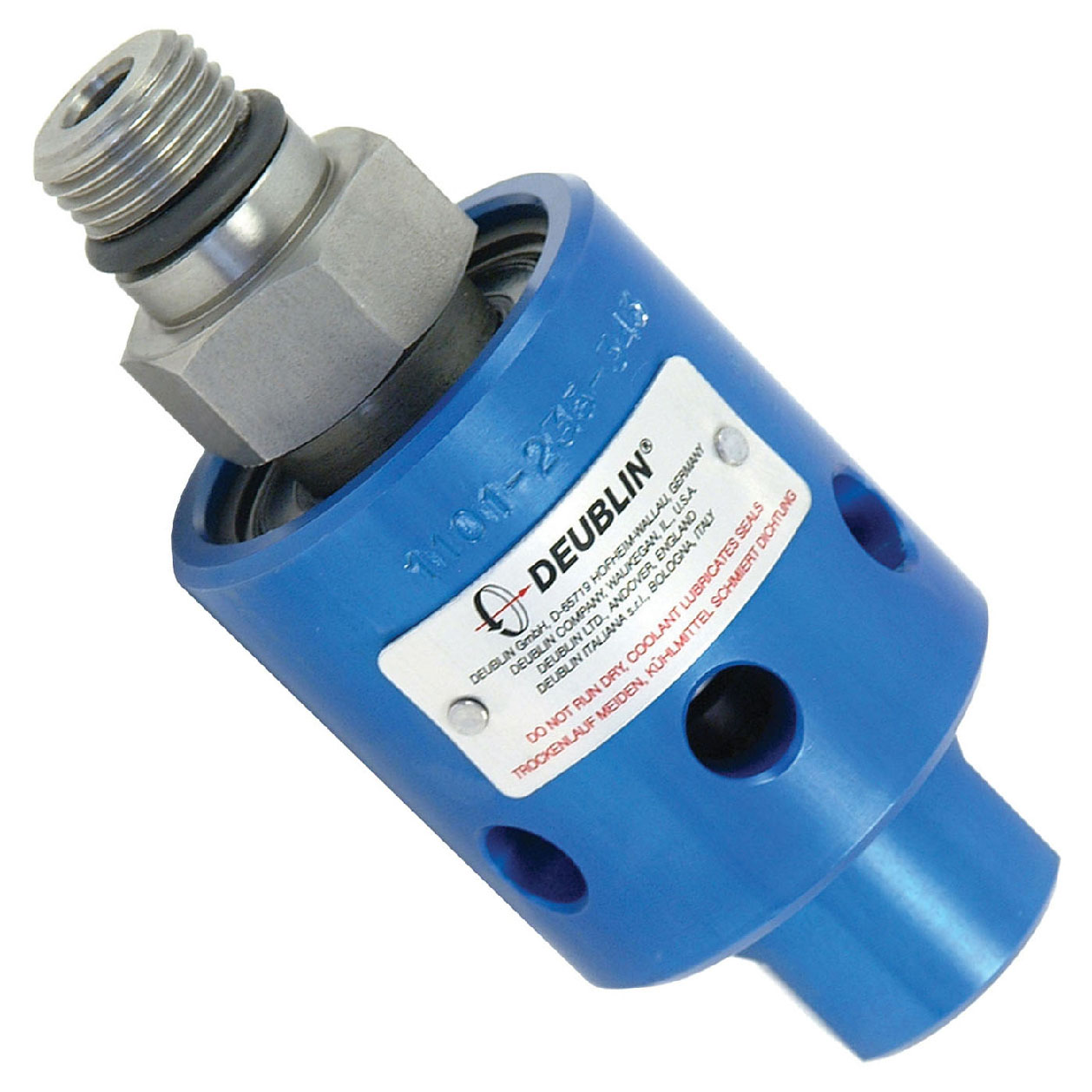

1101-235-343 | 3/8"-18 NPT | M16x1.5 LH, 17.993 mm pilot | M16x1.5 LH, 0.708" pilot | 96 mm | 3.78" | 42.85 mm | 1.687" |
103.4 bar Coolant |
1500 PSI Coolant |
15000 RPM |
|
|
1101-654-646 | M12x1.25 LH, 14 mm pilot | M12x1.25 LH, 0.551" pilot | 42.85 mm | 1.687" |
140 bar Water |
2030 PSI Water |
2500 RPM | |||
|
|
1101-596-343 | 3/8"-18 NPT | M16x1.5 LH, 17.993 mm pilot | M16x1.5 LH, 0.708" pilot | 96.3676 mm | 3.794" | 42.8498 mm | 1.687" |
103.4 bar Coolant |
1500 PSI Coolant |
15000 RPM |
|
|
1101-339-322 | 3/8"-18 NPT | M16x1.5 RH, 16.025 mm pilot | M16x1.5 RH, 0.631" pilot | 96 mm | 3.78" | 42.85 mm | 1.687" |
103.4 bar Coolant |
1500 PSI Coolant |
15000 RPM |
|
|
1101-339-322 | M16x1.5 RH, 16.025 mm pilot | M16x1.5 RH, 0.631" pilot | 42.85 mm | 1.687" |
103.4 bar Coolant |
1500 PSI Coolant |
||||
|

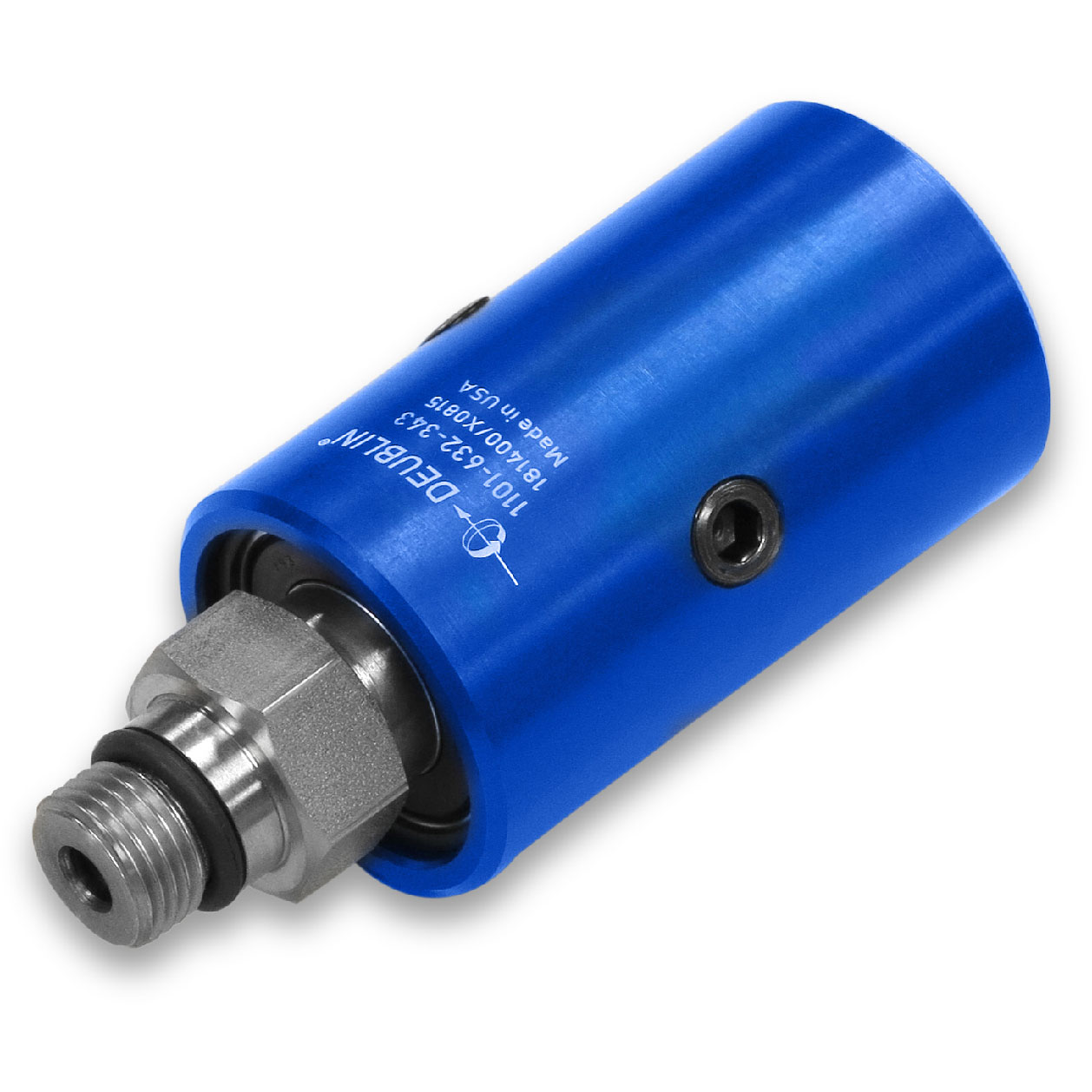

1101-632-343 | 3/8"-19 PT | M16x1.5 LH, 17.993 mm pilot | M16x1.5 LH, 0.708" pilot | 103 mm | 4.055" | 43.6 mm | 1.717" |
103.4 bar Coolant 10 bar MQL |
1500 PSI Coolant 150 PSI MQL |
15000 RPM |
|
|
1101-359-259 | G 3/8"-19 | M16x1.5 LH, 16 mm pilot | M16x1.5 LH, 0.63" pilot | 96 mm | 3.78" | 42.85 mm | 1.687" |
103.4 bar Coolant |
1500 PSI Coolant |
15000 RPM |
|
1101-359-343 | G 3/8"-19 | M16x1.5 LH, 17.994 mm pilot | M16x1.5 LH, 0.708" pilot | 96 mm | 3.78" | 42.85 mm | 1.687" |
103.4 bar Coolant |
1500 PSI Coolant |
15000 RPM |
|

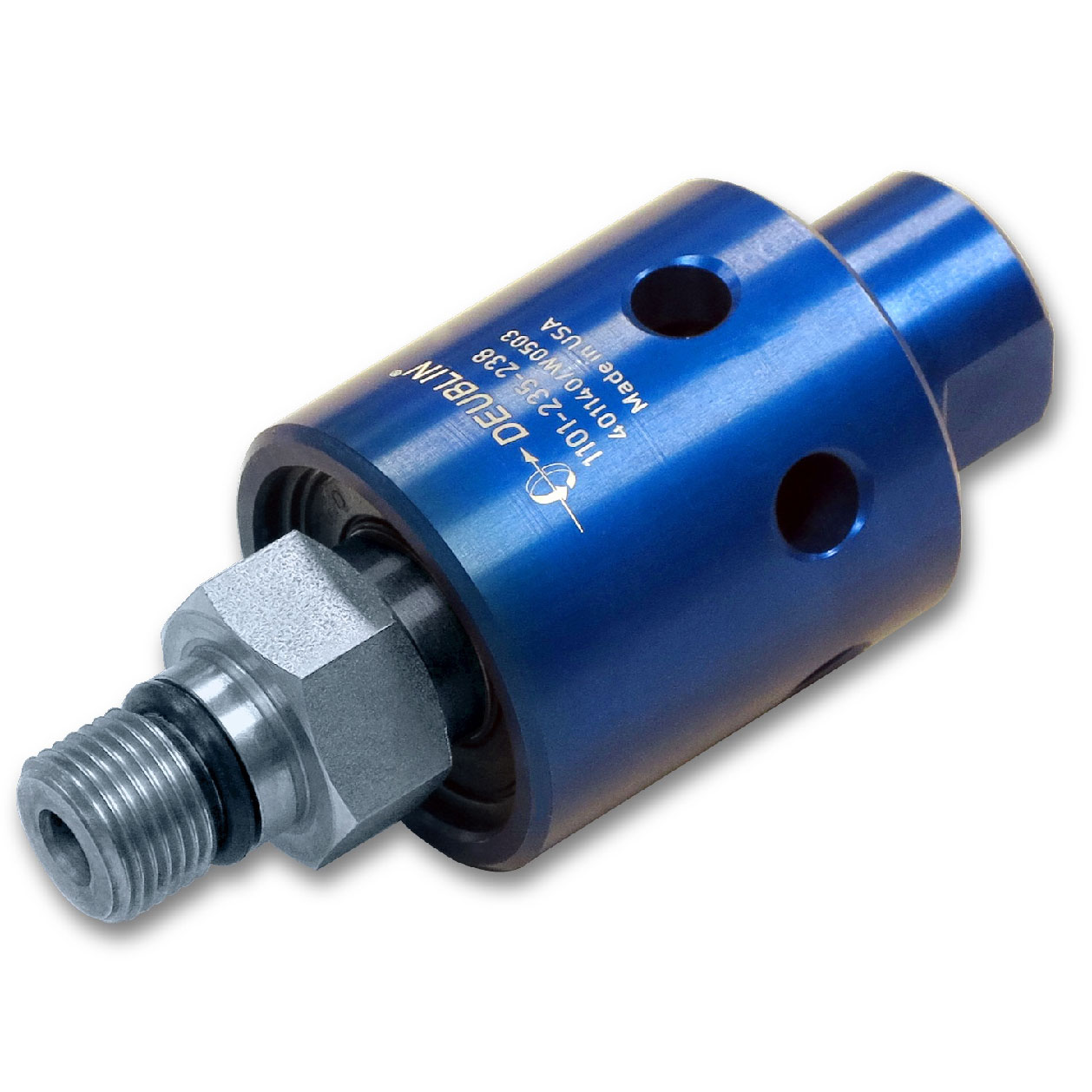

1101-235-238 | 3/8"-18 NPT | 5/8"-18 UNF LH, 16.649 mm pilot | 5/8"-18 UNF LH, 0.655" pilot | 100 mm | 3.937" | 42.85 mm | 1.687" |
103.4 bar Coolant |
1500 PSI Coolant |
15000 RPM |
|

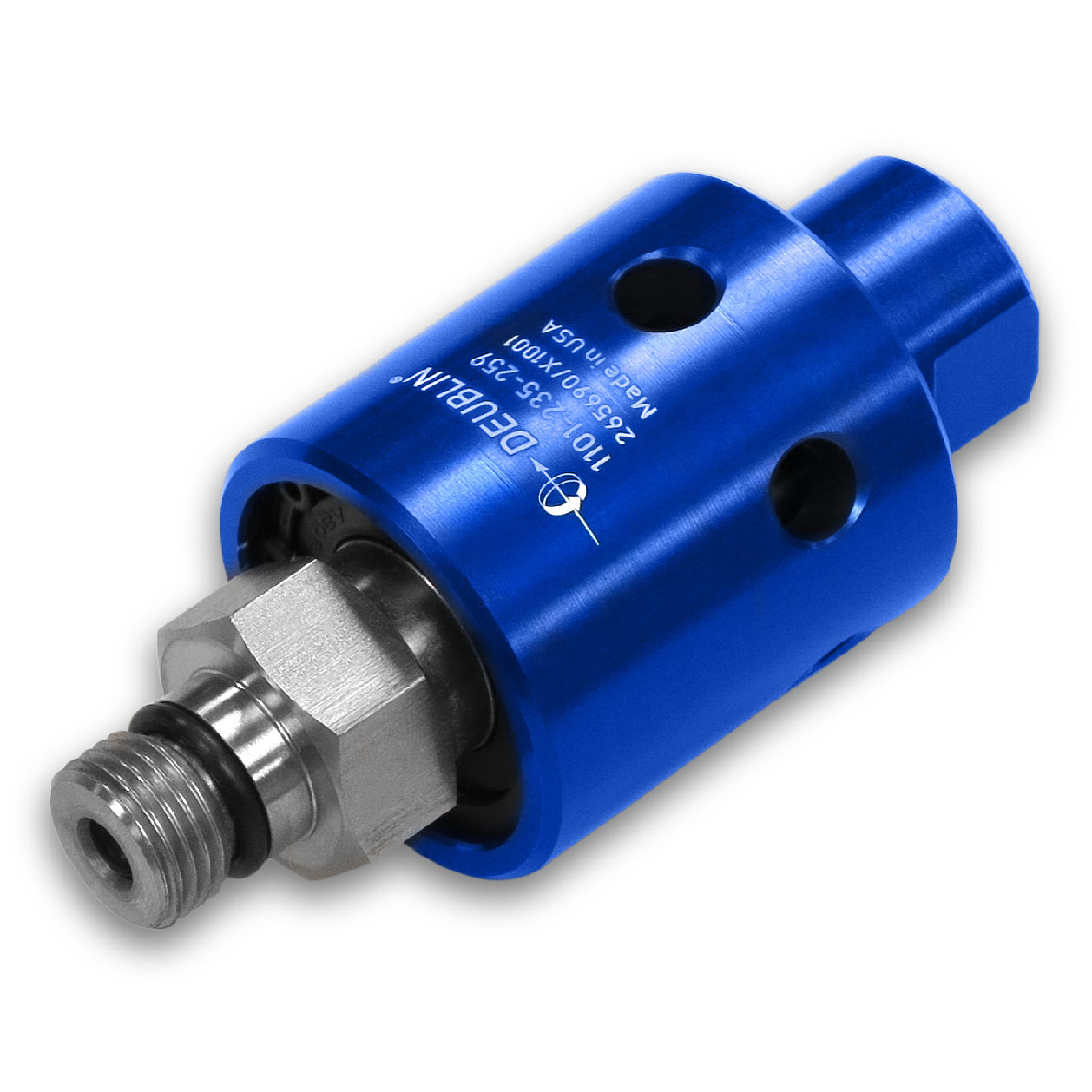

1101-235-259 | 3/8"-18 NPT | M16x1.5 LH, 16.025 mm pilot | M16x1.5 LH, 0.631" pilot | 96 mm | 3.78" | 42.85 mm | 1.687" |
103.4 bar Coolant |
1500 PSI Coolant |
15000 RPM |
|

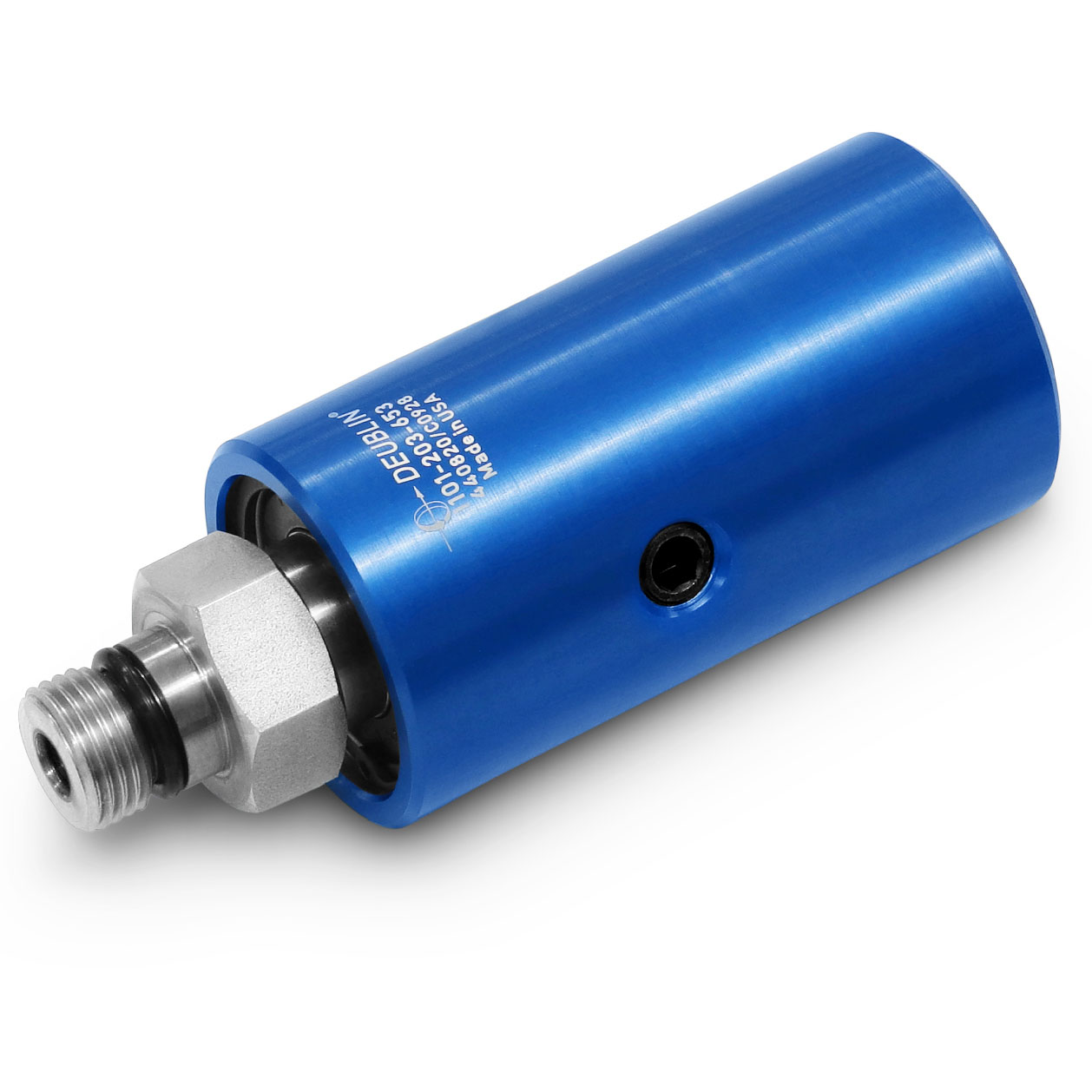

1101-203-653 | 3/8"-19 PT | M16x1.5 LH, 16.025 mm pilot | M16x1.5 LH, 0.631" pilot | 110 mm | 4.331" | 42.85 mm | 1.687" |
10 bar Air 103.4 bar Coolant |
150 PSI Air 1500 PSI Coolant |
12000 RPM |
|
|
1101-200-259 | 3/8"-18 NPT | M16x1.5 LH, 16.025 mm pilot | M16x1.5 LH, 0.631" pilot | 96.2 mm | 3.787" | 42.85 mm | 1.687" |
103.4 bar Coolant |
1500 PSI Coolant |
15000 RPM |
|
|
1101-235-239 | 3/8"-18 NPT | 5/8"-18 UNF RH, 16.649 mm pilot | 5/8"-18 UNF RH, 0.655" pilot | 100 mm | 3.937" | 42.85 mm | 1.687" |
103.4 bar Coolant |
1500 PSI Coolant |
15000 RPM |
