| Deublin Part Number | Supply Connection | Rotor Connection | Overall Length | Housing Diameter | Maximum Pressure and Media | Maximum Speed | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
|

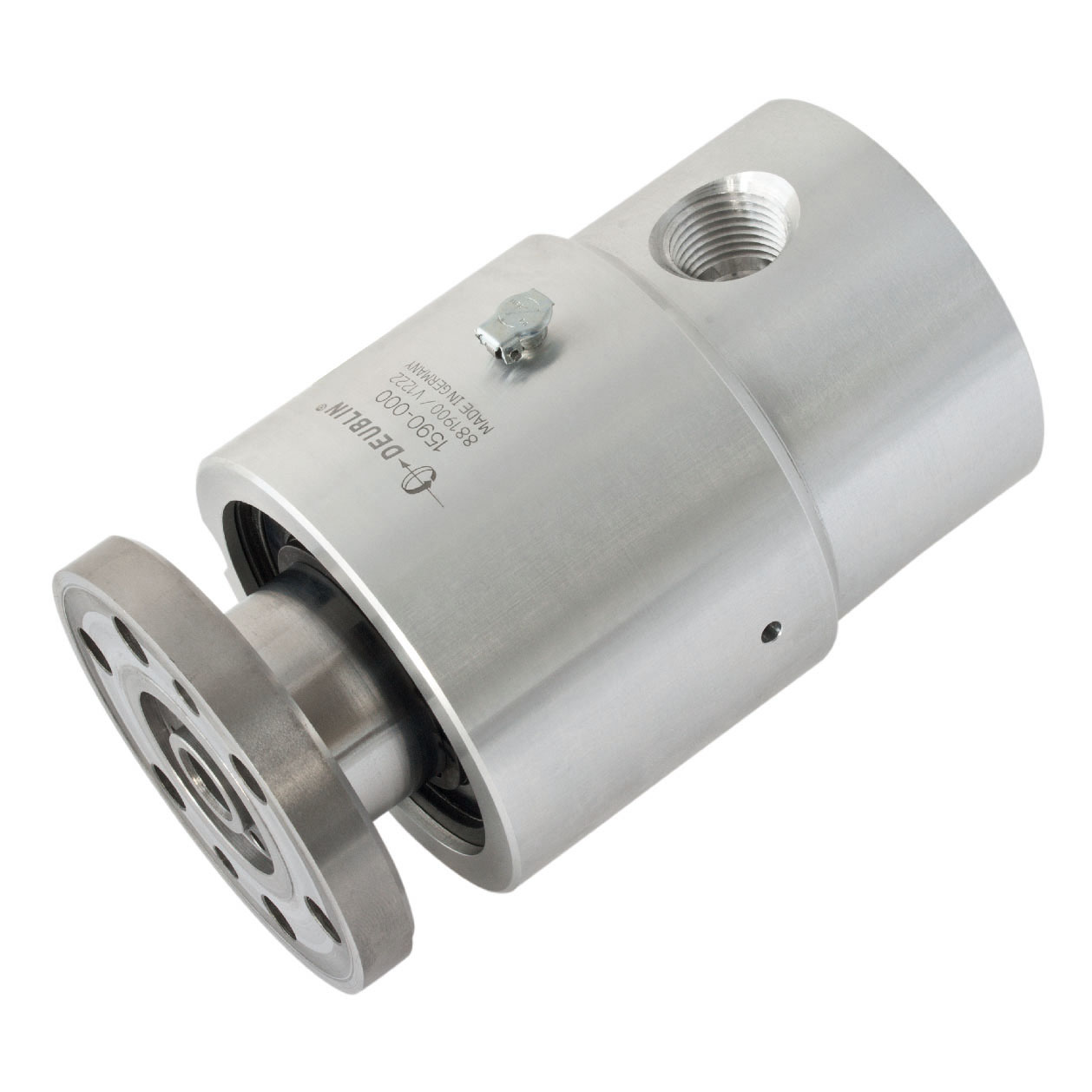

1590-000 | 1/2"-14 NPT | 81 mm Flange, 81 mm pilot | 3.189" Flange, 3.189" pilot | 141.8 mm | 5.583" | 84.2 mm | 3.315" |
10 bar Air -0.95 bar Vacuum |
150 PSI Air -13.75 PSI Vacuum |
1500 RPM |
