Product Selector

Many more designs are available. For assistance, contact Deublin Customer Service at +1-847-689-8660 or cs@deublin.com.

Imperial Metric
Filter By:

17 results out of 20,000+ available products.

Swipe for more
Deublin Part Number Supply Connection Rotor Connection Overall Length Housing Diameter Maximum Pressure and Media Speed
17-086-041 1/4"-18 NPT 3/8"-18 NPT RH 83.3 mm 3.28" 38 mm 1.496"

10 bar Air

207 bar Brake Fluid

-0.95 bar Vacuum

150 PSI Air

3000 PSI Brake Fluid

-13.75 PSI Vacuum

250 RPM
17-025-039 1/4"-18 NPT G 3/8"-19 RH 83.3 mm 3.28" 38 mm 1.496"

10 bar Air

207 bar Hydraulic Oil

-0.95 bar Vacuum

150 PSI Air

3000 PSI Hydraulic Oil

-13.75 PSI Vacuum

250 RPM
17-299-298 1/4"-18 NPT 3/8"-18 NPT RH 83.3 mm 3.28" 38 mm 1.496"

10 bar Air

207 bar Hydraulic Oil

-0.95 bar Vacuum

150 PSI Air

3000 PSI Hydraulic Oil

-13.75 PSI Vacuum

250 RPM
17-050-041 3/8"-18 NPT 3/8"-18 NPT RH 83.3 mm 3.28" 38 mm 1.496"

10 bar Air

207 bar Hydraulic Oil

-0.95 bar Vacuum

150 PSI Air

3000 PSI Hydraulic Oil

-13.75 PSI Vacuum

250 RPM
17-025-023005 1/4"-18 NPT 5/8"-18 UNF RH 88.9 mm 3.5" 38 mm 1.496"

10 bar Air

207 bar Hydraulic Oil

-0.95 bar Vacuum

150 PSI Air

3000 PSI Hydraulic Oil

-13.75 PSI Vacuum

250 RPM
17-025-012 1/4"-18 NPT 5/8"-18 UNF RH 83.3 mm 3.28" 38 mm 1.496"

10 bar Air

207 bar Hydraulic Oil

-0.95 bar Vacuum

150 PSI Air

3000 PSI Hydraulic Oil

-13.75 PSI Vacuum

250 RPM
17-086-023060 1/4"-18 NPT 5/8"-18 UNF RH 88.9 mm 3.5" 38 mm 1.496"

10 bar Air

207 bar Brake Fluid

-0.95 bar Vacuum

150 PSI Air

3000 PSI Brake Fluid

-13.75 PSI Vacuum

250 RPM
17-050-012 3/8"-18 NPT 5/8"-18 UNF RH 83.3 mm 3.28" 38 mm 1.496"

10 bar Air

207 bar Hydraulic Oil

-0.95 bar Vacuum

150 PSI Air

3000 PSI Hydraulic Oil

-13.75 PSI Vacuum

250 RPM
17-068 1/4"-18 NPT tube fitting 1/4"-18 NPT tube fitting 82.5 mm 3.248" 64 mm 2.52"

10 bar Air

207 bar Hydraulic Oil

-0.95 bar Vacuum

150 PSI Air

3000 PSI Hydraulic Oil

-13.75 PSI Vacuum

250 RPM
17-014-001 9/16"-20 UNF 7/8"-14 UNF RH 101.6 mm 4" 50.8 mm 2"

10 bar Air

207 bar Hydraulic Oil

-0.95 bar Vacuum

150 PSI Air

3000 PSI Hydraulic Oil

-13.75 PSI Vacuum

250 RPM
17-025-046 1/4"-18 NPT M16x2 RH 63.3 mm 2.492" 38 mm 1.496"

10 bar Air

207 bar Hydraulic Oil

-0.95 bar Vacuum

150 PSI Air

3000 PSI Hydraulic Oil

-13.75 PSI Vacuum

250 RPM
17-025-139 1/4"-18 NPT 3/4"-14 NPT RH 89.7 mm 3.531" 38 mm 1.496"

10 bar Air

207 bar Hydraulic Oil

-0.95 bar Vacuum

150 PSI Air

3000 PSI Hydraulic Oil

-13.75 PSI Vacuum

250 RPM
17-062 1/4"-18 NPT tube fitting 37-degree SAE RH 82.5 mm 3.248" 64 mm 2.52"

10 bar Air

207 bar Hydraulic Oil

-0.95 bar Vacuum

150 PSI Air

3000 PSI Hydraulic Oil

-13.75 PSI Vacuum

250 RPM
17-025-021 1/4"-18 NPT 1/4"-18 NPT RH 83.3 mm 3.28" 38 mm 1.496"

10 bar Air

207 bar Hydraulic Oil

-0.95 bar Vacuum

150 PSI Air

3000 PSI Hydraulic Oil

-13.75 PSI Vacuum

250 RPM
17-058-056 3/8"-18 NPT 3/8"-18 NPT RH 88 mm 3.465" 38 mm 1.496"

10 bar Air

207 bar Hydraulic Oil

-0.95 bar Vacuum

150 PSI Air

3000 PSI Hydraulic Oil

-13.75 PSI Vacuum

250 RPM
17-025-041 1/4"-18 NPT 3/8"-18 NPT RH 83.3 mm 3.28" 38 mm 1.496"

10 bar Air

207 bar Hydraulic Oil

-0.95 bar Vacuum

150 PSI Air

3000 PSI Hydraulic Oil

-13.75 PSI Vacuum

250 RPM

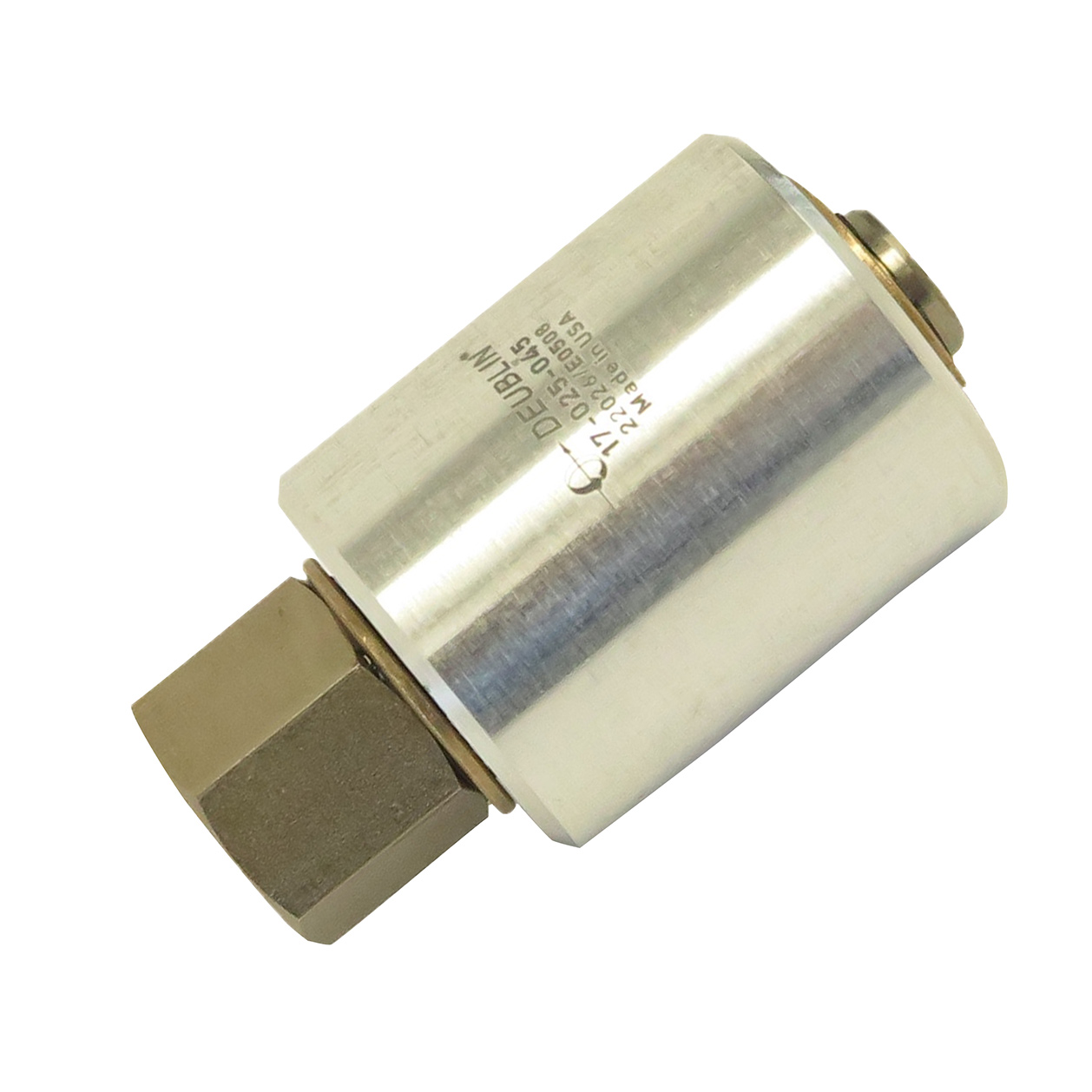

17-025-045 1/4"-18 NPT 3/8"-18 NPT RH 75.4 mm 2.969" 38 mm 1.496"

10 bar Air

207 bar Hydraulic Oil

-0.95 bar Vacuum

150 PSI Air

3000 PSI Hydraulic Oil

-13.75 PSI Vacuum

250 RPM
Page 1 of 1
