| Deublin Part Number | Supply Connection | Rotor Connection | Overall Length | Housing Diameter | Maximum Pressure and Media | Maximum Speed | ||||
|---|---|---|---|---|---|---|---|---|---|---|
|

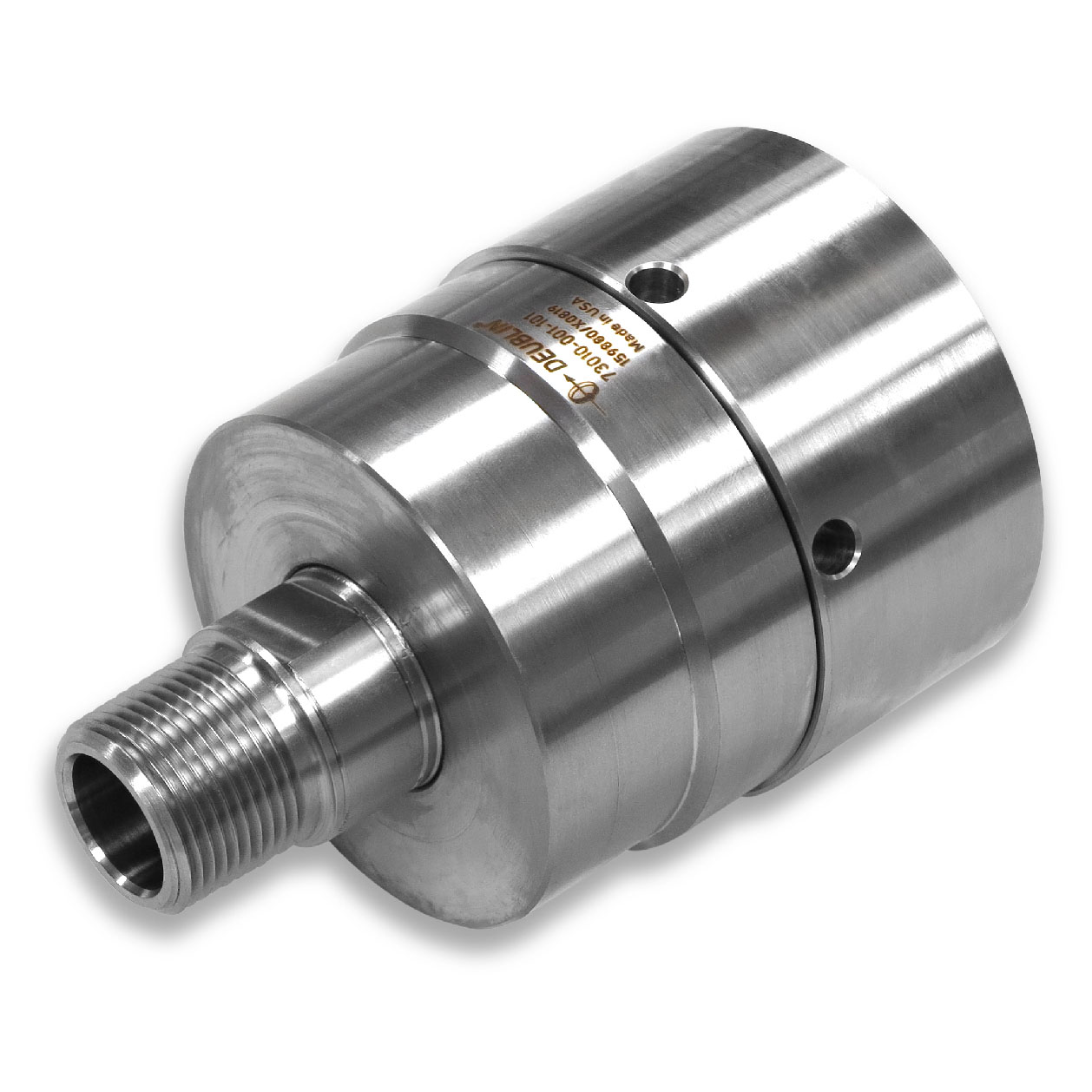

73010-001-101 | 1"-11.5 NPT | 1"-11.5 NPT RH | 150 mm | 5.906" | 98.4 mm | 3.874" |
140 bar Drilling Mud |
2030 PSI Drilling Mud |
300 RPM |
|
73010-001-109 | 1"-11.5 NPT | 15/16"-12 UN LH | 140.2 mm | 5.52" | 88.9 mm | 3.5" |
103.4 bar Drilling Mud |
1500 PSI Drilling Mud |
250 RPM |
|

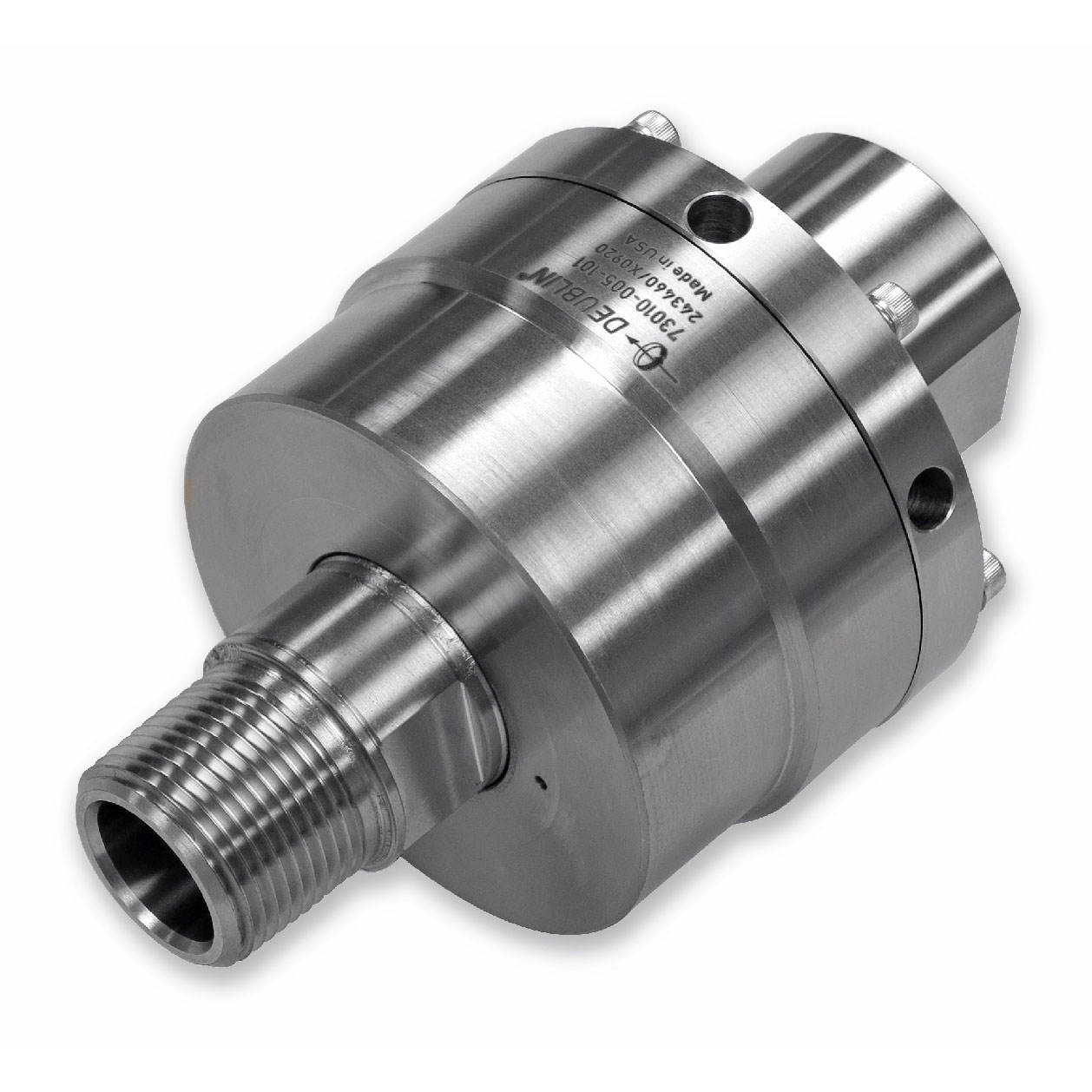

73010-005-101 | 1"-11.5 NPT | 1"-11.5 NPT RH | 150 mm | 5.906" | 89 mm | 3.504" |
103.4 bar Drilling Mud |
1500 PSI Drilling Mud |
250 RPM |
