| Deublin Part Number | Supply Connection | Rotor Connection | Overall Length | Housing Diameter | Maximum Pressure and Media | Maximum Speed | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
|
1005-020-049 | 1/8"-27 NPT | G 1/4"-19 RH | 71 mm | 2.795" | 28.372 mm | 1.117" |
10 bar Air 69 bar Hydraulic Oil -0.95 bar Vacuum |
150 PSI Air 1000 PSI Hydraulic Oil -13.75 PSI Vacuum |
3500 RPM | |
|
|
1005-057-039 | 1/8"-27 NPT | 3/8"-24 UNF LH | 71.5 mm | 2.815" | 28.372 mm | 1.117" |
103.4 bar Grease 103.4 bar Hydraulic Oil |
1500 PSI Grease 1500 PSI Hydraulic Oil |
3500 RPM | |
|
|
1005-020-049 | G 1/4"-19 RH |
10 bar Air 69 bar Hydraulic Oil -0.95 bar Vacuum |
150 PSI Air 1000 PSI Hydraulic Oil -13.75 PSI Vacuum |
3500 RPM | ||||||
|
|
1005-057-039 | 3/8"-24 UNF LH | 3500 RPM | ||||||||
|
|
1005-057-049 | 1/8"-27 NPT | G 1/4"-19 RH | 71 mm | 2.795" | 28.372 mm | 1.117" |
103.4 bar Grease 103.4 bar Hydraulic Oil |
1500 PSI Grease 1500 PSI Hydraulic Oil |
3500 RPM | |
|
|
1005-165-037 | 1/8"-27 NPT | M10x1 RH | 71.4 mm | 2.811" | 28.372 mm | 1.117" |
10 bar Air 69 bar Hydraulic Oil -0.95 bar Vacuum |
150 PSI Air 1000 PSI Hydraulic Oil -13.75 PSI Vacuum |
3500 RPM | |
|
|
1005-057-049 | 1/8"-27 NPT | G 1/4"-19 RH | 71 mm | 2.795" | ||||||
|
|
1005-020-241 | 1/8"-27 NPT | G 1/8"-28 LH | 71 mm | 2.795" | 28.372 mm | 1.117" |
10 bar Air 69 bar Hydraulic Oil -0.95 bar Vacuum |
150 PSI Air 1000 PSI Hydraulic Oil -13.75 PSI Vacuum |
3500 RPM | |
|
|
1005-060-038 | 1/8"-27 NPT | 1/8"-27 NPT RH | 71 mm | 2.795" | 28.372 mm | 1.117" |
10 bar Air 69 bar Hydraulic Oil -0.95 bar Vacuum |
150 PSI Air 1000 PSI Hydraulic Oil -13.75 PSI Vacuum |
3500 RPM | |
|
|
1005-683 | 5 mm | 0.197" | 1/8"-27 NPT RH | 61.5 mm | 2.421" | 33.53 mm | 1.32" |
69 bar Hydraulic Oil |
1000 PSI Hydraulic Oil |
3500 RPM |
|
|
1005-656-001 | 3.18 mm | 0.125" | 1/8"-27 Radial Female NPT RH | 74 mm | 2.913" | 28.37 mm | 1.117" |
69 bar Hydraulic Oil |
1000 PSI Hydraulic Oil |
3500 RPM |
|
|
1005-095-045 | 1/8"-27 NPT | M10x1 RH, 11 mm pilot | M10x1 RH, 0.433" pilot | 71 mm | 2.795" | 28.372 mm | 1.117" |
10 bar Air 69 bar Hydraulic Oil -0.95 bar Vacuum |
150 PSI Air 1000 PSI Hydraulic Oil -13.75 PSI Vacuum |
3500 RPM |
|
|
1005-000-019 | 0.125" | 3.18 mm | 3/8"-24 UNF RH | 69.9 mm | 2.752" | 28.372 mm | 1.117" |
10 bar Air 69 bar Hydraulic Oil -0.95 bar Vacuum |
150 PSI Air 1000 PSI Hydraulic Oil -13.75 PSI Vacuum |
3500 RPM |
|
|
1005-000-019 | 3/8"-24 UNF RH | 28.372 mm | 1.117" |
10 bar Air 69 bar Hydraulic Oil -0.95 bar Vacuum |
150 PSI Air 1000 PSI Hydraulic Oil -13.75 PSI Vacuum |
3500 RPM | ||||
|
1005-000-037 | 3.18 mm | 0.125" | M10x1 RH | 70 mm | 2.756" | 28.372 mm | 1.117" |
10 bar Air 69 bar Hydraulic Oil -0.95 bar Vacuum |
150 PSI Air 1000 PSI Hydraulic Oil -13.75 PSI Vacuum |
3500 RPM |
|

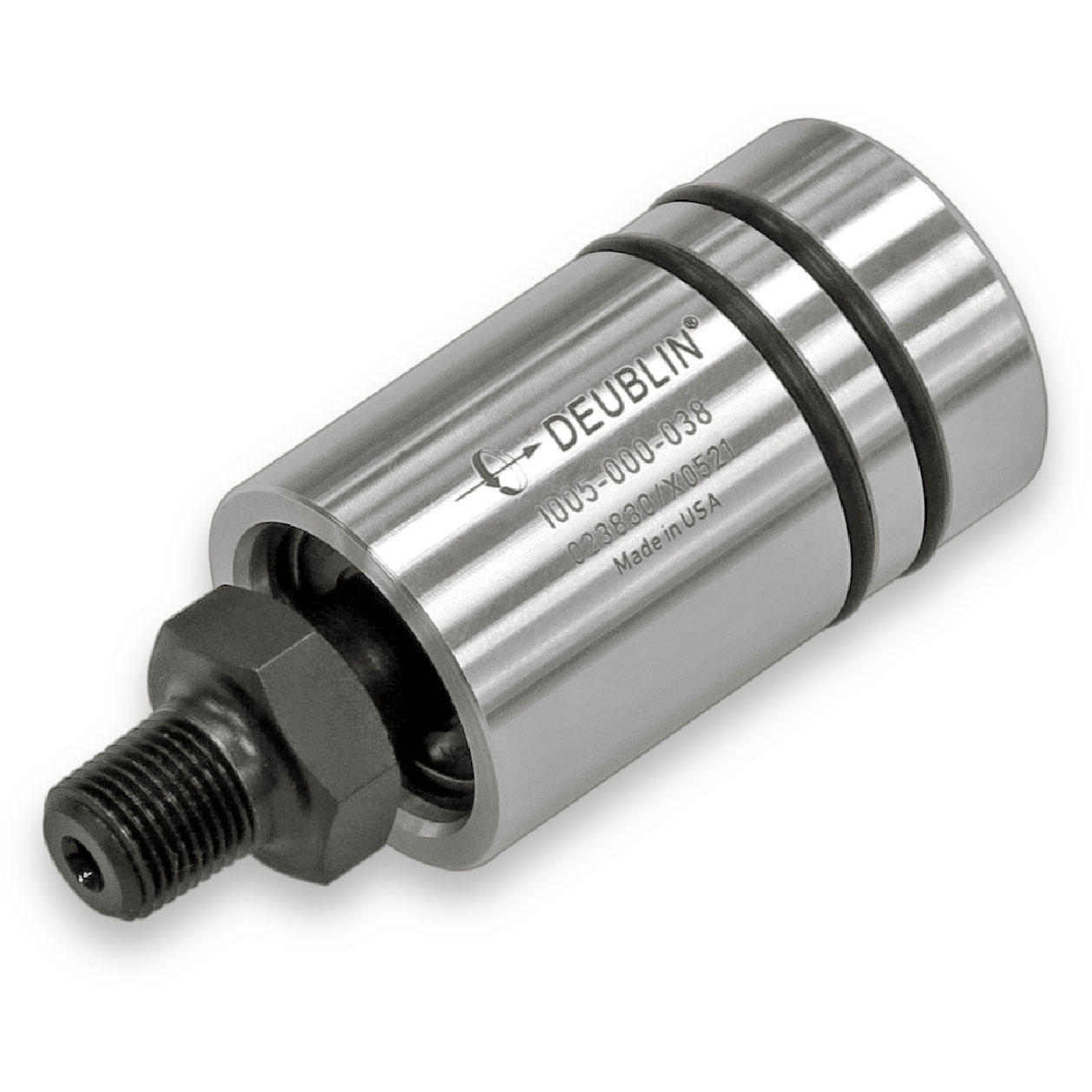

1005-000-038 | 0.125" | 3.18 mm | 1/8"-27 NPT RH | 70 mm | 2.756" | 28.372 mm | 1.117" |
10 bar Air 69 bar Hydraulic Oil -0.95 bar Vacuum |
150 PSI Air 1000 PSI Hydraulic Oil -13.75 PSI Vacuum |
3500 RPM |
|
|
1005-165-061 | 1/8"-27 NPT | 5/8"-18 UNF RH, 16.649 mm pilot | 5/8"-18 UNF RH, 0.655" pilot | 81 mm | 3.189" | 28.372 mm | 1.117" |
10 bar Air 69 bar Hydraulic Oil -0.95 bar Vacuum |
150 PSI Air 1000 PSI Hydraulic Oil -13.75 PSI Vacuum |
3500 RPM |
|
|
1005-057-019 | 1/8"-27 NPT | 3/8"-24 UNF RH | 71 mm | 2.795" | 28.372 mm | 1.117" |
103.4 bar Grease 103.4 bar Hydraulic Oil |
1500 PSI Grease 1500 PSI Hydraulic Oil |
3500 RPM | |
|
1005-108-001 | 0.125" | 3.18 mm | 1/8"-27 Radial Female NPT RH | 74 mm | 2.913" | 28.372 mm | 1.117" |
69 bar Hydraulic Oil |
1000 PSI Hydraulic Oil |
3500 RPM |
|
|
1005-108-038 | 0.125" | 3.18 mm | 1/8"-27 NPT RH | 70 mm | 2.756" | 28.372 mm | 1.117" |
69 bar Hydraulic Oil |
1000 PSI Hydraulic Oil |
1500 RPM |
