| Deublin Part Number | Supply Connection | Rotor Connection | Overall Length | Housing Diameter | Maximum Pressure and Media | Maximum Speed | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
|

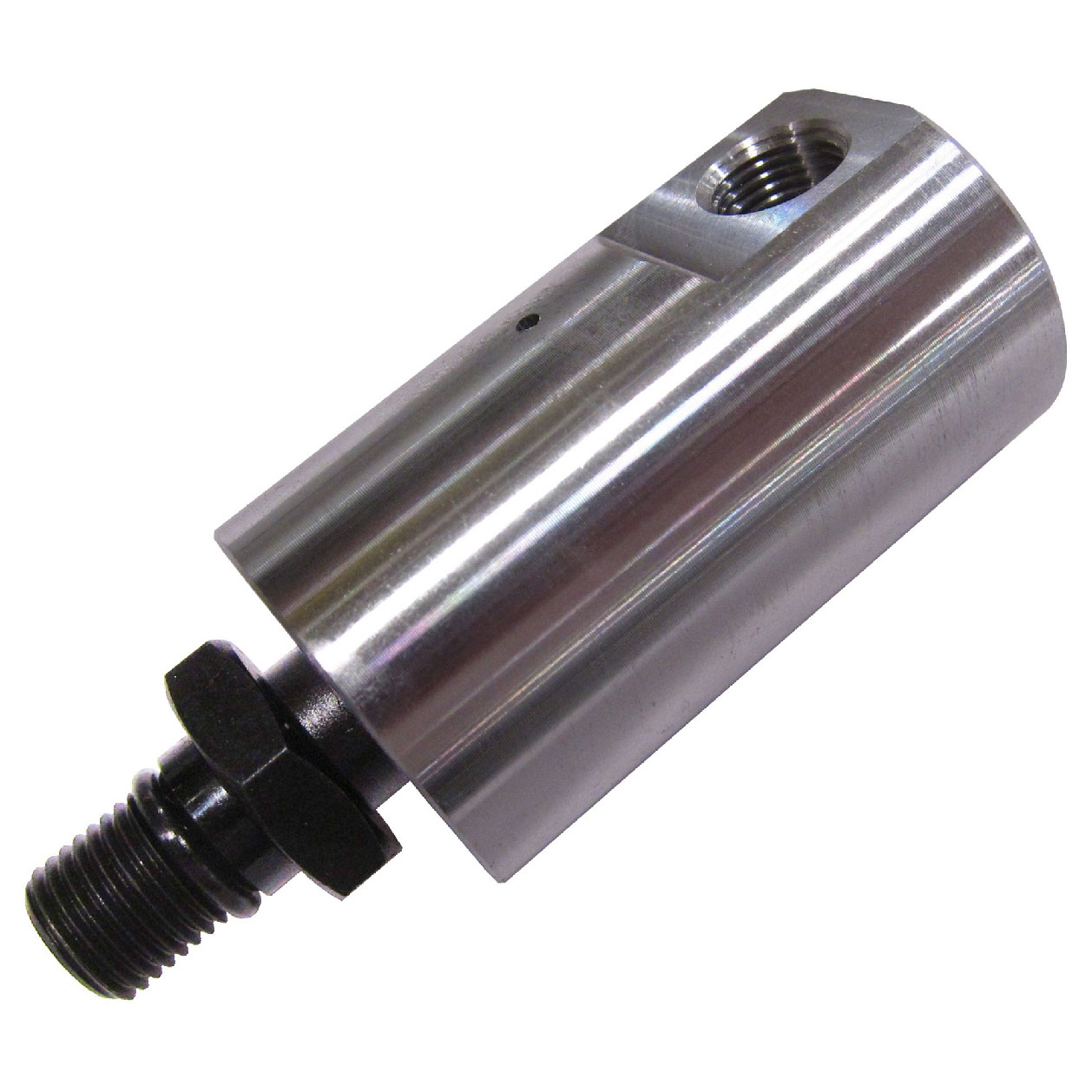

1005-483-330 | G 1/8"-28 | M10x1 LH, 11 mm pilot | M10x1 LH, 0.433" pilot | 71 mm | 2.795" | 28.5 mm | 1.122" |
10 bar Air 69 bar Hydraulic Oil -0.95 bar Vacuum |
150 PSI Air 1000 PSI Hydraulic Oil -13.75 PSI Vacuum |
3500 RPM |
|

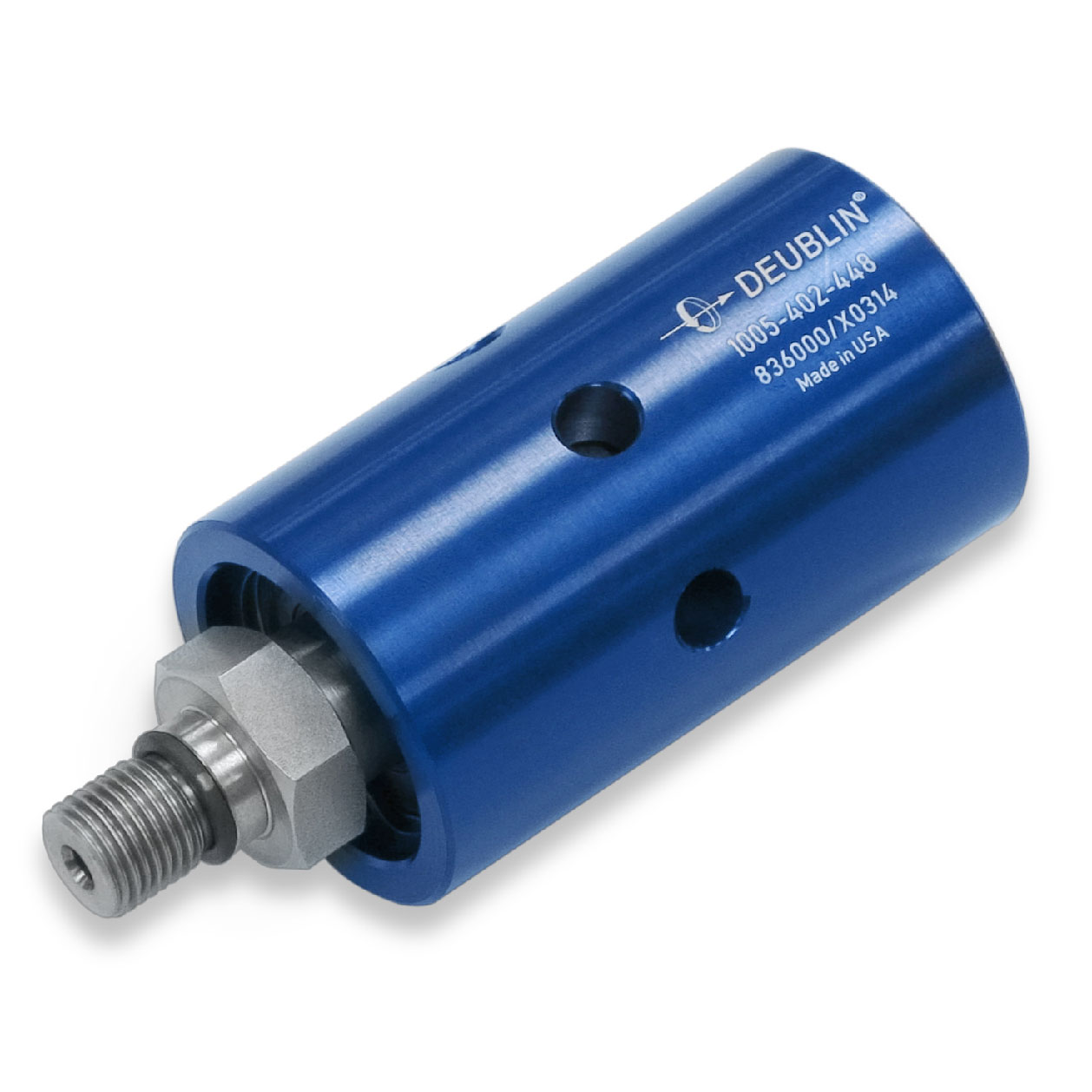

1005-402-448 | 1/8"-27 NPT | M10x1 LH, 10.994 mm pilot | M10x1 LH, 0.433" pilot | 80 mm | 3.15" | 34 mm | 1.339" |
103.4 bar Coolant |
1500 PSI Coolant |
12000 RPM |
|
1005-402-401 | 1/8"-27 NPT | M10x1 RH, 11 mm pilot | M10x1 RH, 0.433" pilot | 80 mm | 3.15" | 34 mm | 1.339" |
103.4 bar Coolant |
1500 PSI Coolant |
15000 RPM |
|
1005-605-454 | G 1/8"-28 | M10x1 RH, 11 mm pilot | M10x1 RH, 0.433" pilot | 71 mm | 2.795" | 29.5 mm | 1.161" |
10 bar Air 69 bar Hydraulic Oil -0.95 bar Vacuum |
150 PSI Air 1000 PSI Hydraulic Oil -13.75 PSI Vacuum |
3500 RPM |
|
1005-560-568 | 1/8"-27 NPT | M10x1 RH | 71.5 mm | 2.815" | 28.4 mm | 1.118" |
69 bar Coolant 69 bar Water |
1000 PSI Coolant 1000 PSI Water |
3500 RPM | |
|
|
1005-560-561 | 1/8"-27 NPT | 1/8"-27 NPT RH | 71.4 mm | 2.811" | 28.3 mm | 1.114" |
69 bar Coolant 69 bar Water |
1000 PSI Coolant 1000 PSI Water |
1500 RPM | |
|
|
1005-560-561 | 1/8"-27 NPT RH | 28.3 mm | 1.114" |
69 bar Coolant 69 bar Water |
1000 PSI Coolant 1000 PSI Water |
1500 RPM |
