| Deublin Part Number | Supply Connection | Rotor Connection | Overall Length | Housing Diameter | Maximum Pressure and Media | Maximum Speed | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1151-032-192 | 28.6 mm | 1.126" | M16x1.5 LH, 17.993 mm pilot | M16x1.5 LH, 0.708" pilot | 77.8 mm | 3.063" | 53.7 mm | 2.114" |
140 bar Coolant 10 bar MQL |
2030 PSI Coolant 150 PSI MQL |
40000 RPM |
|
1151-030-137 | 0.786" | 19.96 mm | M12x1.25 LH, 13 mm pilot | M12x1.25 LH, 0.512" pilot | 62 mm | 2.441" | 40.2 mm | 1.583" |
10 bar MQL 140 bar Coolant |
150 PSI MQL 2030 PSI Coolant |
25000 RPM |
|

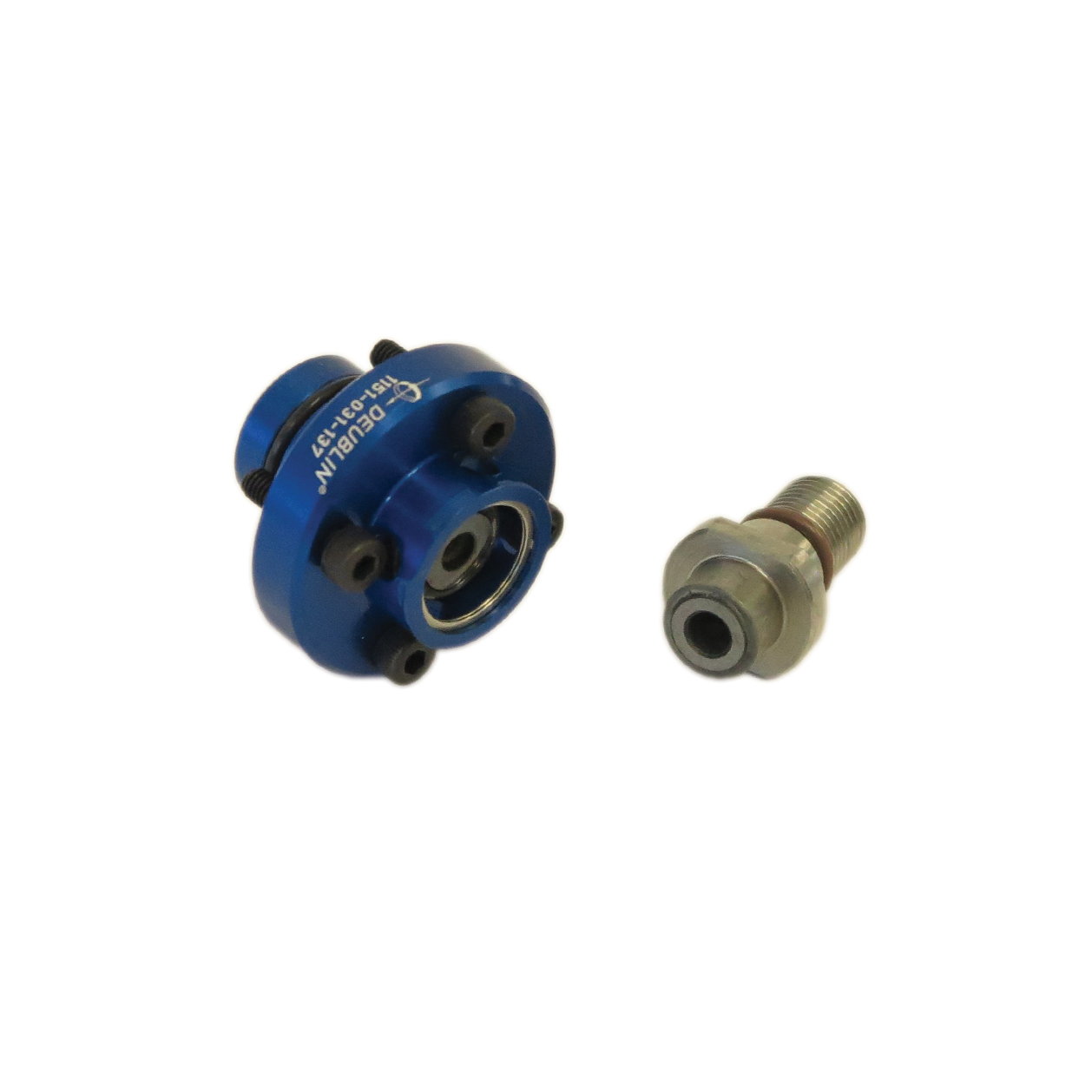

1151-031-137 | 0.786" | 19.96 mm | M12x1.25 LH, 13 mm pilot | M12x1.25 LH, 0.512" pilot | 62 mm | 2.441" | 40.2 mm | 1.583" |
10 bar MQL 140 bar Coolant |
150 PSI MQL 2030 PSI Coolant |
25000 RPM |
|
|
1151-031-137 | M12x1.25 LH, 13 mm pilot | M12x1.25 LH, 0.512" pilot | 62 mm | 2.441" | |||||||
|
1151-002-140 | 16.368 mm | 0.644" | M12x1.25 LH, 13 mm pilot | M12x1.25 LH, 0.512" pilot | 56-63 mm | 2.20-2.48" | 31 mm | 1.22" |
140 bar Coolant 10 bar MQL |
2030 PSI Coolant 150 PSI MQL |
50000 RPM |
|

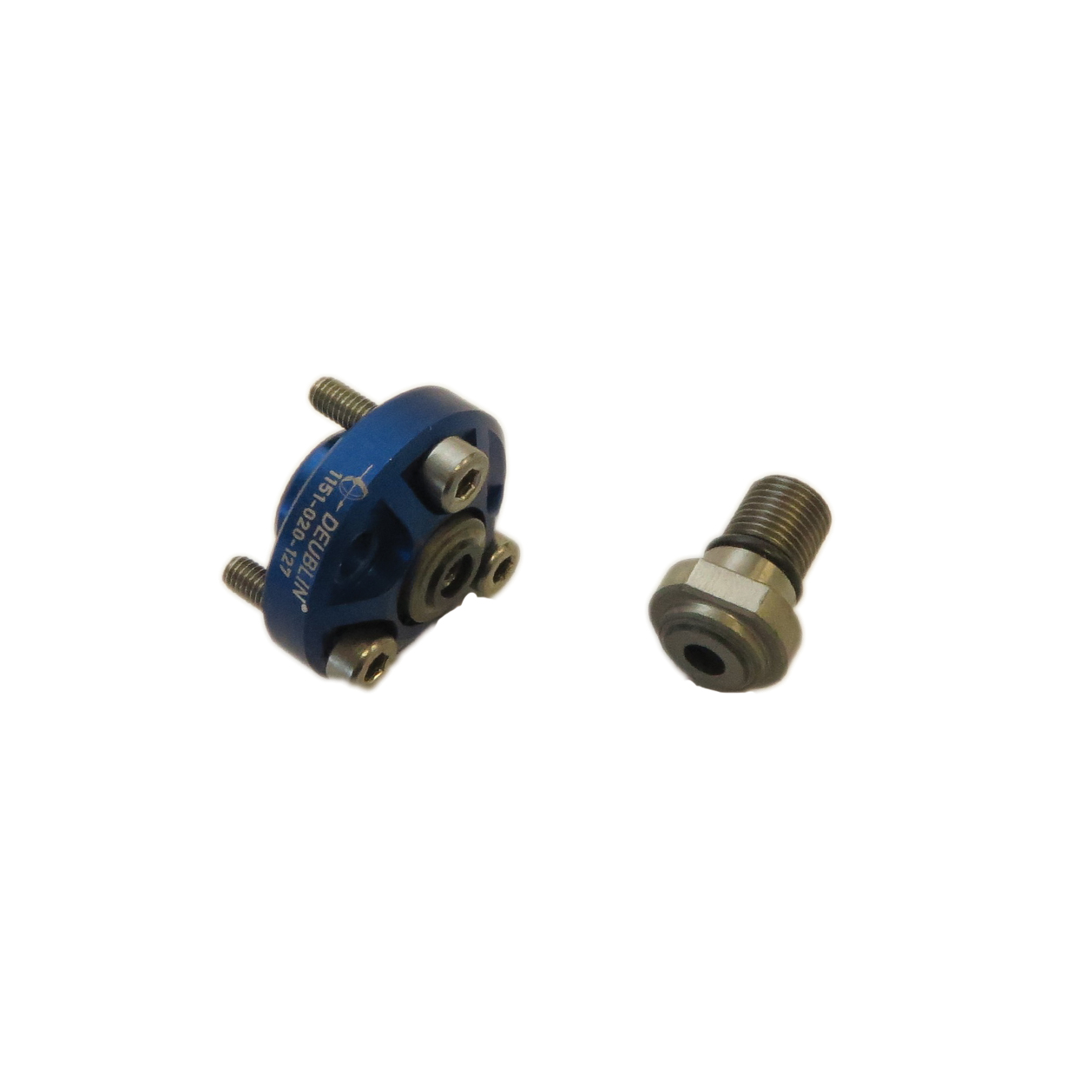

1151-020-127 | 0.644" | 16.368 mm | M10x1 LH, 11 mm pilot | M10x1 LH, 0.433" pilot | 42 mm | 1.654" | 31.8 mm | 1.252" |
140 bar Coolant 10 bar MQL |
2030 PSI Coolant 150 PSI MQL |
50000 RPM |
|
|
1151-002-140 | M12x1.25 LH, 13 mm pilot | M12x1.25 LH, 0.512" pilot | 56-63 mm | 2.20-2.48" |
