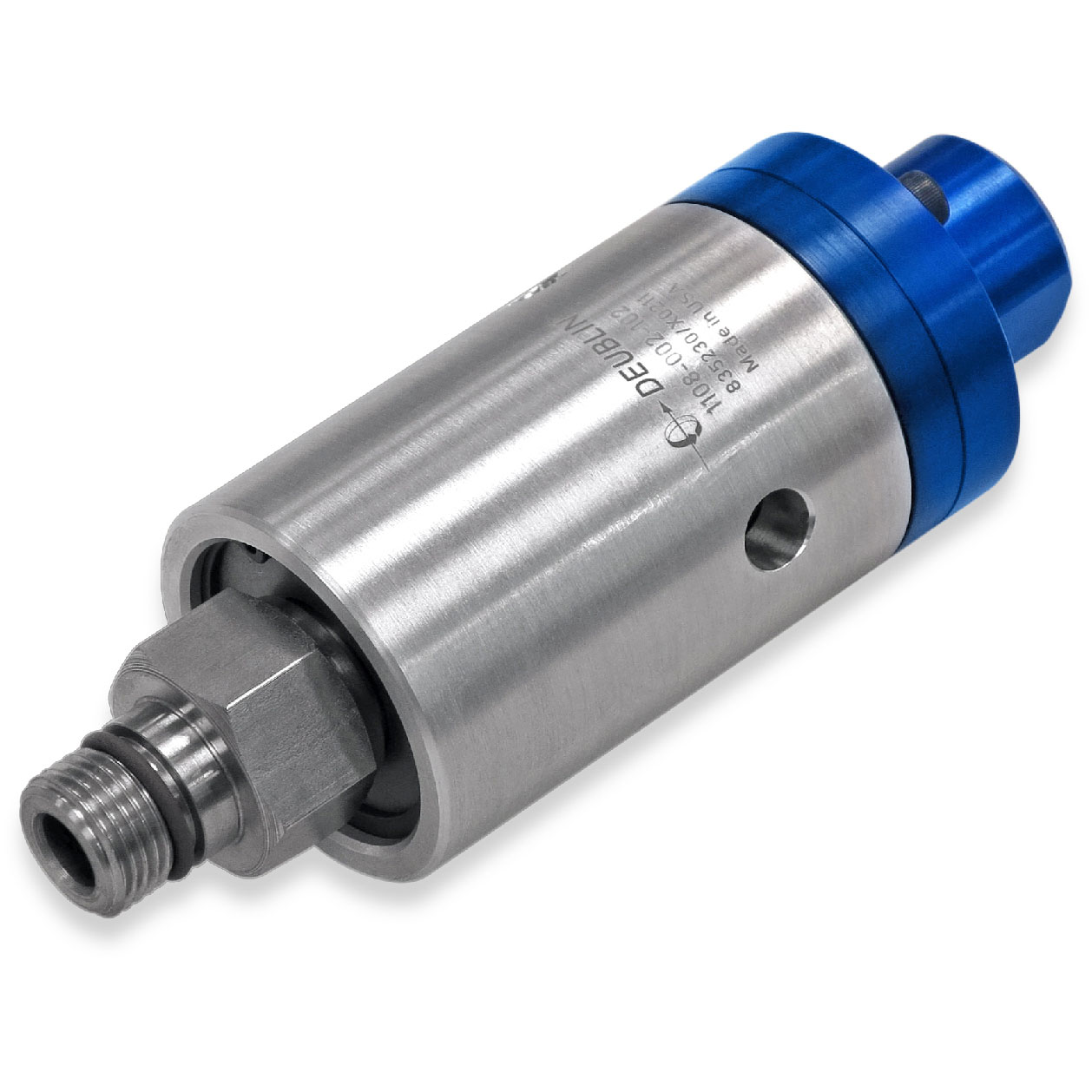

1108-002-102
- Single passage for coolant or MQL
- Closed seals for transfer line and similar applications
- Full-flow design has no obstructions to trap swarf or debris
- Bearing-supported with threaded rotor for easy installation
- Dual angular contact ball bearings
- Labyrinth system and large vents to protect ball bearings
- Balanced mechanical seals made from silicon carbide for long life even under difficult operating conditions
- Anodized aluminum housing resists corrosion
Imperial
Metric
Dimensions
A
5/8"-18 UNF LH
B
3/8"-18 NPT
C
44 mm
C
1.732"
D1
5.197"
D1
132 mm
E
1.339"
E
34 mm
F
19 mm
F
0.748"
G
0.343"
G
8.7 mm
H
0.945"
H
24 mm
I
0.655"
I
16.649 mm
J
113 mm
J
4.449"
L
0.874"
L
22.2 mm
P
Non-Threaded
X
0.189"
X
4.8 mm
Operating Specifications
Media
MQL, Coolant
Rotor Connection
5/8"-18 UNF LH, 16.649 mm pilot
Rotor Connection
5/8"-18 UNF LH, 0.655" pilot
Housing Connection
3/8"-18 NPT
Coolant
Max. Flow
21.6 GPM
Coolant
Max. Flow
81.8 l/min
Coolant
Max. Pressure
103.4 bar
Coolant
Max. Pressure
1500 psi
Coolant
Max. Temperature
71 °C
Coolant
Max. Temperature
160 °F
MQL
Max. Flow
21.5 CFM
MQL
Max. Flow
608 l/min
MQL
Max. Pressure
10 bar
MQL
Max. Pressure
150 psi
MQL
Max. Temperature
71 °C
MQL
Max. Temperature
160 °F
