1108-093-568
- Single passage for coolant or MQL
- Closed seals for transfer line and similar applications
- Full-flow design has no obstructions to trap swarf or debris
- Bearing-supported with threaded rotor for easy installation
- Dual angular contact ball bearings
- Labyrinth system and large vents to protect ball bearings
- Balanced mechanical seals made from silicon carbide for long life even under difficult operating conditions
- Anodized aluminum housing resists corrosion
Imperial
Metric

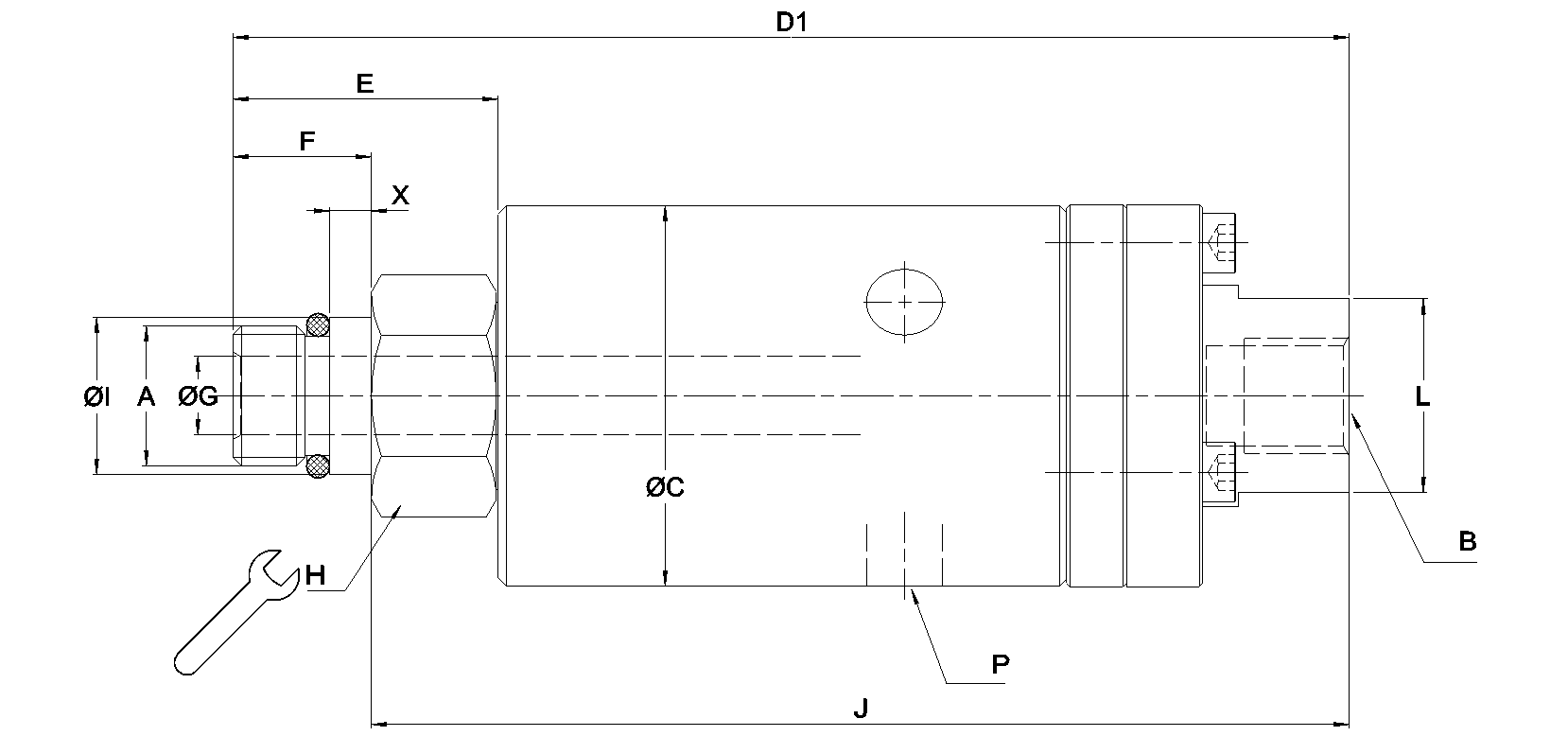

Dimensions
A
5/8"-18 UNF LH
B
1/4"-18 NPT
C
1.723"
C
43.76 mm
D1
5.157"
D1
131 mm
E
1.323"
E
33.6 mm
F
0.75"
F
19.05 mm
G
0.062"
G
1.57 mm
H
0.945"
H
24 mm
I
16.647 mm
I
0.655"
J
3.843"
J
97.6 mm
L
22.23 mm
L
0.875"
P
Non-Threaded
X
0.189"
X
4.8 mm

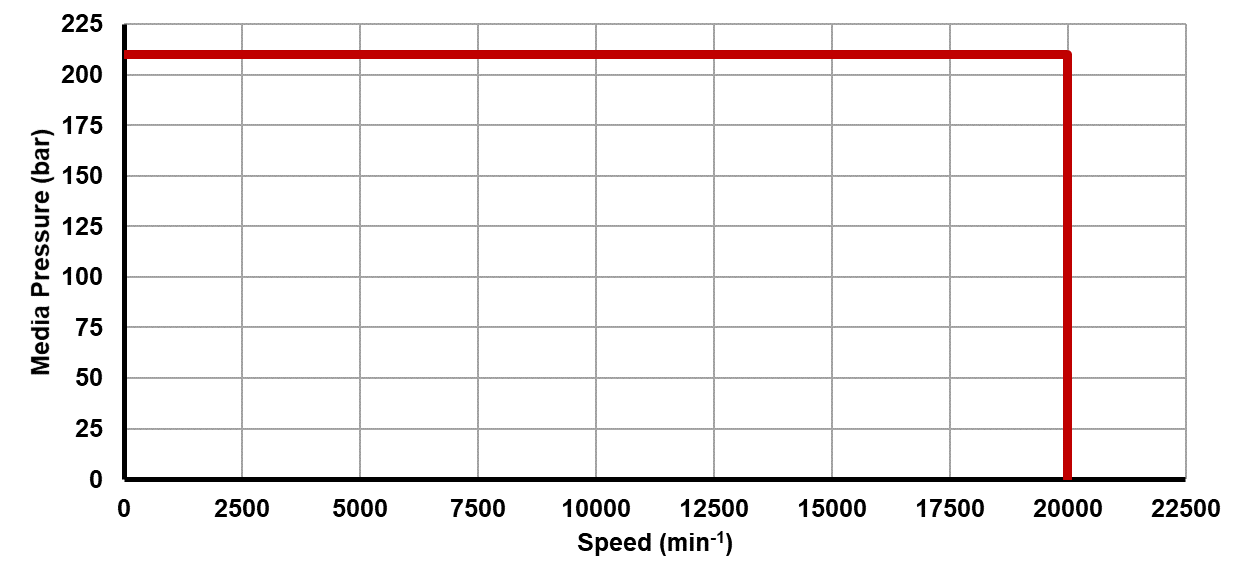

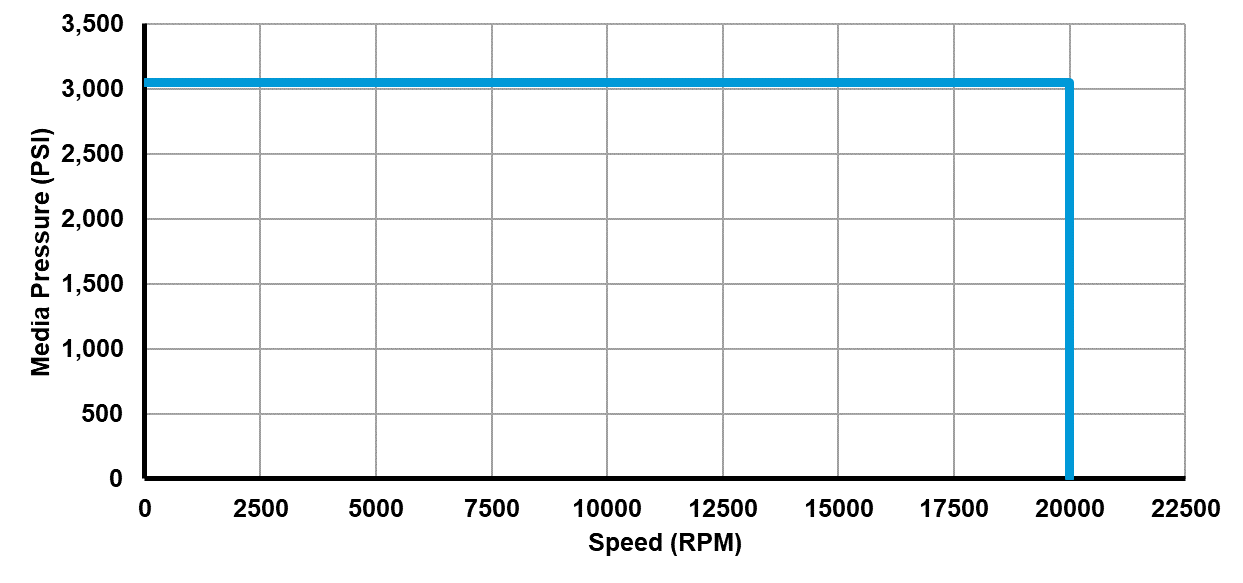

Operating Specifications
Media
MQL, Cutting Oil, Coolant
Rotor Connection
5/8"-18 UNF LH, 16.647 mm pilot
Rotor Connection
5/8"-18 UNF LH, 0.655" pilot
Housing Connection
1/4"-18 NPT
Coolant
Max. Flow
0.7 GPM
Coolant
Max. Flow
2.7 l/min
Coolant
Max. Pressure
207 bar
Coolant
Max. Pressure
3000 psi
Coolant
Max. Temperature
71 °C
Coolant
Max. Temperature
160 °F
Cutting Oil
Max. Flow
0.7 GPM
Cutting Oil
Max. Flow
2.7 l/min
Cutting Oil
Max. Pressure
207 bar
Cutting Oil
Max. Pressure
3000 psi
Cutting Oil
Max. Temperature
71 °C
Cutting Oil
Max. Temperature
160 °F
MQL
Max. Flow
2.4 CFM
MQL
Max. Flow
68 l/min
MQL
Max. Pressure
10 bar
MQL
Max. Pressure
150 psi
MQL
Max. Temperature
71 °C
MQL
Max. Temperature
160 °F
