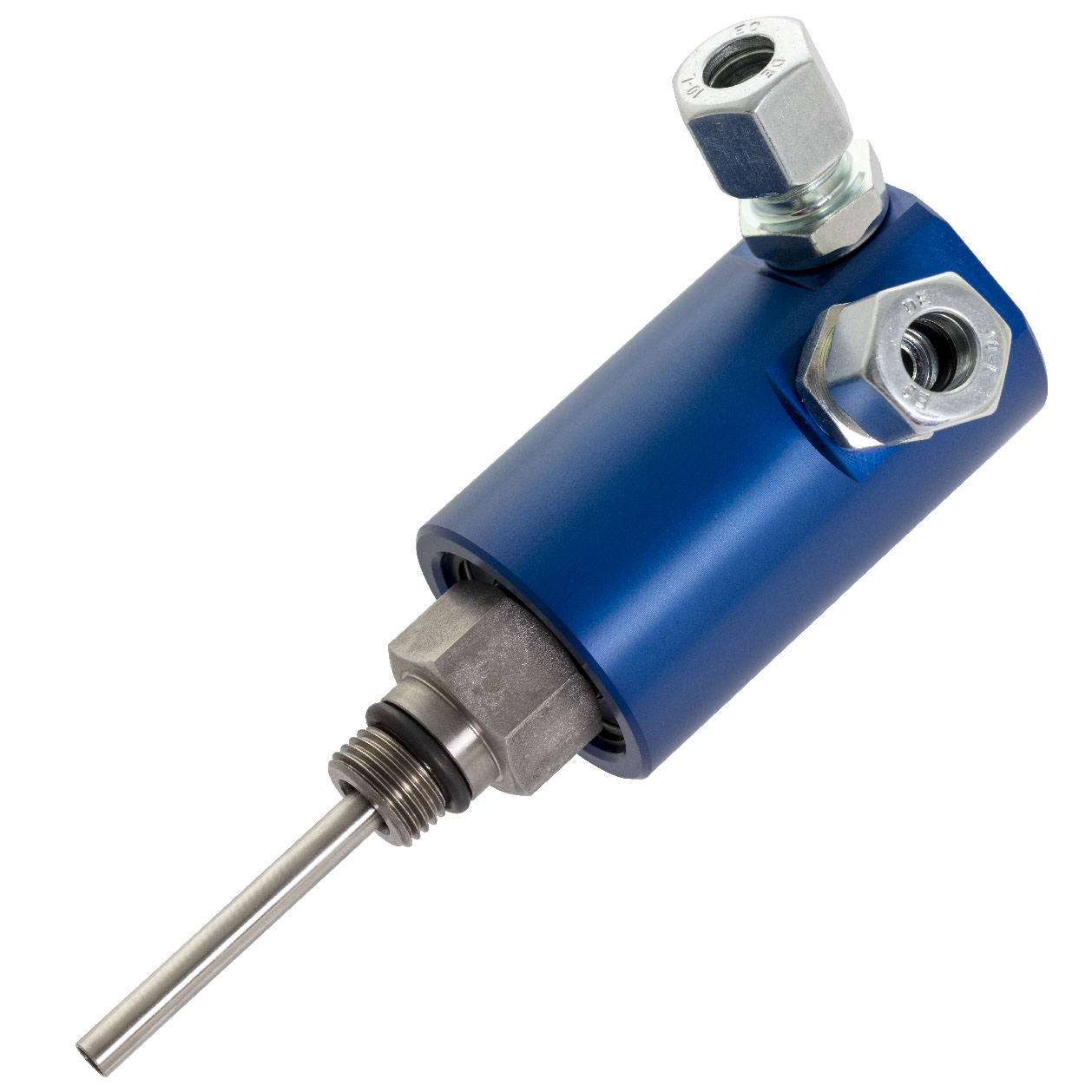

1116-656-578658
- Single passage for coolant or MQL
- Closed seals for transfer line and similar applications
- Full-flow design has no obstructions to trap swarf or debris
- Bearing-supported with threaded rotor for easy installation
- Deep groove radial ball bearings for smooth operation
- Labyrinth system and large vents to protect ball bearings
- Balanced mechanical seals made from silicon carbide for long life even under difficult operating conditions
- Anodized aluminum housing and stainless steel rotor resist corrosion
Imperial
Metric

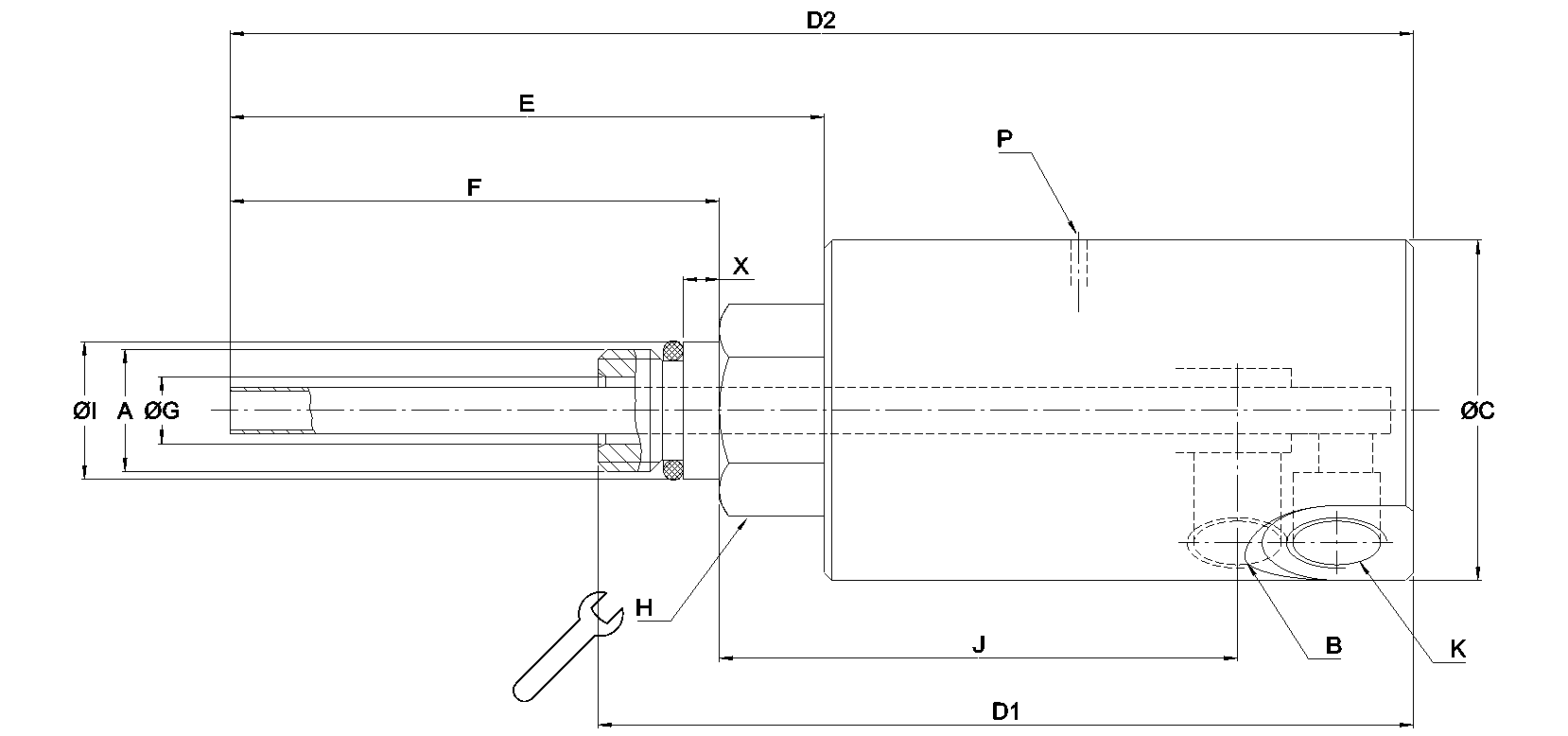

Dimensions

A
M16x1.5 RH
B
G 1/4"-19
C
44.5 mm
C
1.752"
D1
4.197"
D1
106.6 mm
D2
155 mm
D2
6.102"
E
3.031"
E
77 mm
F
2.52"
F
64 mm
G
0.343"
G
8.7 mm
H
24 mm
H
0.945"
I
0.708"
I
17.993 mm
J
68 mm
J
2.677"
K
G 1/4"-19
P
Non-Threaded
X
0.197"
X
5 mm
Operating Specifications
Media
MQL, Coolant
Rotor Connection
M16x1.5 RH, 17.993 mm pilot
Rotor Connection
M16x1.5 RH, 0.708" pilot
Housing Connection
G 1/4"-19
Coolant
Max. Flow
21.6 GPM
Coolant
Max. Flow
81.8 l/min
Coolant
Max. Pressure
69 bar
Coolant
Max. Pressure
1000 psi
Coolant
Max. Temperature
71 °C
Coolant
Max. Temperature
160 °F
MQL
Max. Flow
72.1 CFM
MQL
Max. Flow
2040 l/min
MQL
Max. Pressure
10 bar
MQL
Max. Pressure
150 psi
MQL
Max. Temperature
71 °C
MQL
Max. Temperature
160 °F
