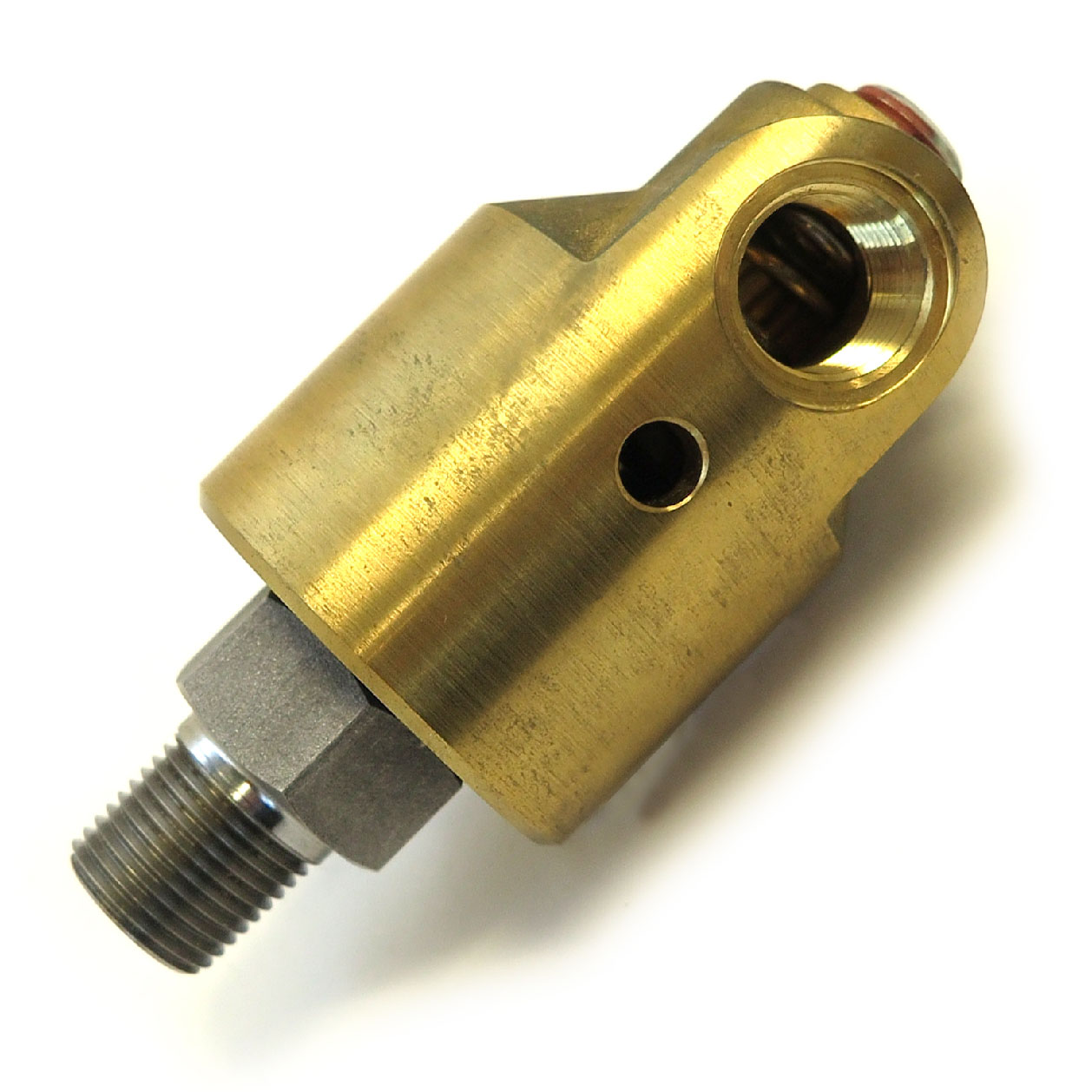

157-000-001
- Monoflow and duoflow design
- Self-supported rotating union
- Radial housing connection
- Balanced mechanical seals
- Keyed rotor seal
- Easy and quick replacement of sealing components
- Ball bearings lubricated for life
- E.L.S. (Extended Life Service) seal combination for poor water quality
- 3 vent holes
- Forged brass housing and stainless steel rotor
- Special options include threaded vent holes
Imperial
Metric
Dimensions
A
1/2"-14 NPT RH
B
1/2"-14 NPT
C
2.252"
C
57.2 mm
D1
4.803"
D1
122 mm
E
1.48"
E
37.6 mm
F
0.874"
F
22.2 mm
G
13 mm
G
0.512"
H
1.126"
H
28.6 mm
J
89.5 mm
J
3.524"
K
3/8"-18 NPT
P
Non-Threaded
Operating Specifications
Media
Water, Steam, Hot Oil, Water
Rotor Connection
1/2"-14 NPT RH
Housing Connection
1/2"-14 NPT
Water
Max. Flow
7.1 GPM
Water
Max. Flow
26.9 l/min
Water
Pressure
10 bar
Water
Pressure
150 psi
Water
Temperature
93 °C
Water
Temperature
195 °F
Hot Oil
Max. Flow
7.1 GPM
Hot Oil
Max. Flow
26.9 l/min
Hot Oil
Pressure
100 psi
Hot Oil
Pressure
6.9 bar
Hot Oil
Temperature
250 °F
Hot Oil
Temperature
121 °C
Steam
Max. Flow
29.6 GPM
Steam
Max. Flow
112.2 l/min
Steam
Pressure
15 psi
Steam
Pressure
1 bar
Steam
Temperature
250 °F
Steam
Temperature
121 °C
Water
Max. Flow
7.1 GPM
Water
Max. Flow
26.9 l/min
Water
Pressure
750 psi
Water
Pressure
51.7 bar
Water
Temperature
250 °F
Water
Temperature
121 °C
