9210-002-104
- Single passage for coolant or MQL
- Pop-Off™ technology allows unlimited dry running without media pressure
- Pop-off stroke of 0.7-3.0 mm compensates for thermal expansion of spindle during extended operation as well as variations in drawbar position
- Full-flow design has no obstructions to trap swarf or debris
- Balanced mechanical seals made from silicon carbide for long life even under difficult operating conditions
- Anodized aluminum housing resists corrosion
Already have an account? Sign in
Imperial
Metric
Dimensions
A
M16x1.5 LH
B
3/8"-19 PT
C
2.323"
C
59 mm
D1
88 mm
D1
3.465"
E
9.3 mm
E
0.366"
F
16.3 mm
F
0.642"
G
0.343"
G
8.7 mm
H
24 mm
H
0.945"
I
17.993 mm
I
0.708"
K
1/4"-19 PT
O
0
P
Non-Threaded
X
0.185"
X
4.7 mm

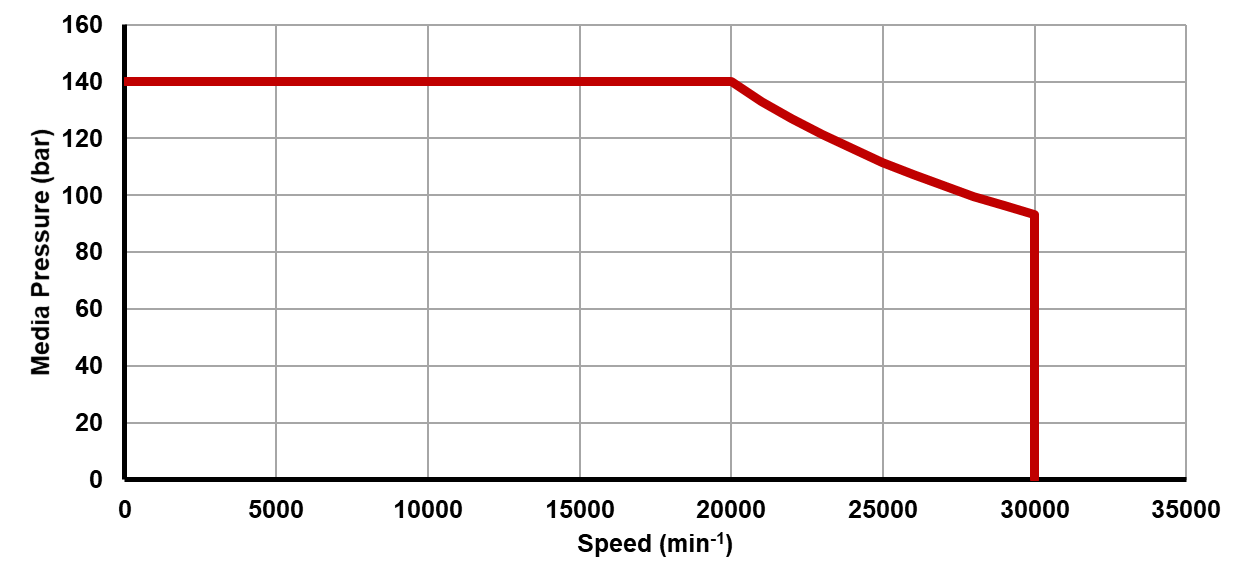

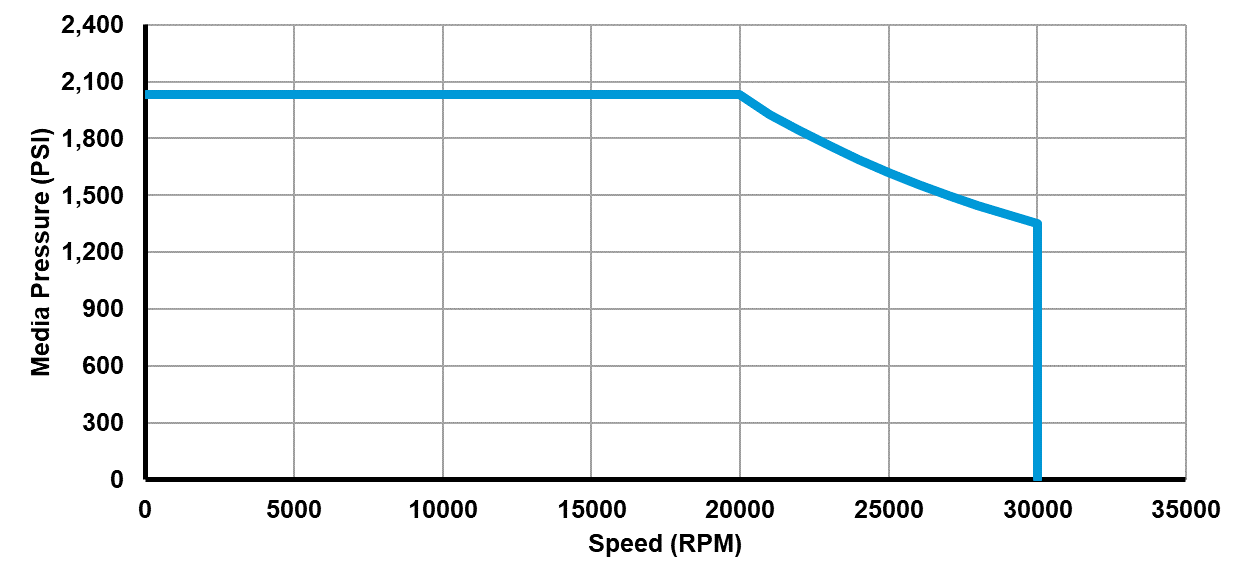

Operating Specifications
Media
Coolant, Air
Rotor Connection
M16x1.5 LH, 17.993 mm pilot
Rotor Connection
M16x1.5 LH, 0.708" pilot
Housing Connection
3/8"-19 PT
Air
Max. Flow
90.1 CFM
Air
Max. Flow
2550 l/min
Air
Max. Pressure
10 bar
Air
Max. Pressure
150 psi
Air
Max. Temperature
121 °C
Air
Max. Temperature
250 °F
Coolant
Max. Flow
21.7 GPM
Coolant
Max. Flow
82 l/min
Coolant
Max. Pressure
70 bar
Coolant
Max. Pressure
1015 psi
Coolant
Max. Temperature
121 °C
Coolant
Max. Temperature
250 °F
