Features.ProductSeries.SwipeForMore
| Features.ProductSeries.DeublinPartNumberDisplay | Features.ProductSeries.SupplyConnectionDisplay | Features.ProductSeries.RotorConnectionDisplay | Features.ProductSeries.OverallLengthDisplay | Features.ProductSeries.HousignDiameterDisplay | Features.ProductSeries.MaxPressureDisplay | Features.ProductSeries.MaxSpeedDisplay | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
|
1005-483-330 | G 1/8"-28 | M10x1 LH, 11 mm pilot | M10x1 LH, 0.433" pilot | 71 mm | 2.795" | 28.5 mm | 1.122" |
10 bar Aire 69 bar Aceite Hidráulico -0.95 bar Vacío |
150 PSI Aire 1000 PSI Aceite Hidráulico -13.75 PSI Vacío |
3500 RPM |
|
1005-402-448 | 1/8"-27 NPT | M10x1 LH, 10.994 mm pilot | M10x1 LH, 0.433" pilot | 80 mm | 3.15" | 34 mm | 1.339" |
103.4 bar Taladrina |
1500 PSI Taladrina |
12000 RPM |
|
1005-402-401 | 1/8"-27 NPT | M10x1 RH, 11 mm pilot | M10x1 RH, 0.433" pilot | 80 mm | 3.15" | 34 mm | 1.339" |
103.4 bar Taladrina |
1500 PSI Taladrina |
15000 RPM |
|
|
1005-483-330 | G 1/8"-28 | M10x1 LH, 11 mm pilot | M10x1 LH, 0.433" pilot | 71 mm | 2.795" | 28.5 mm | 1.122" |
10 bar Aire 69 bar Aceite Hidráulico -0.95 bar Vacío |
150 PSI Aire 1000 PSI Aceite Hidráulico -13.75 PSI Vacío |
3500 RPM |
|
|

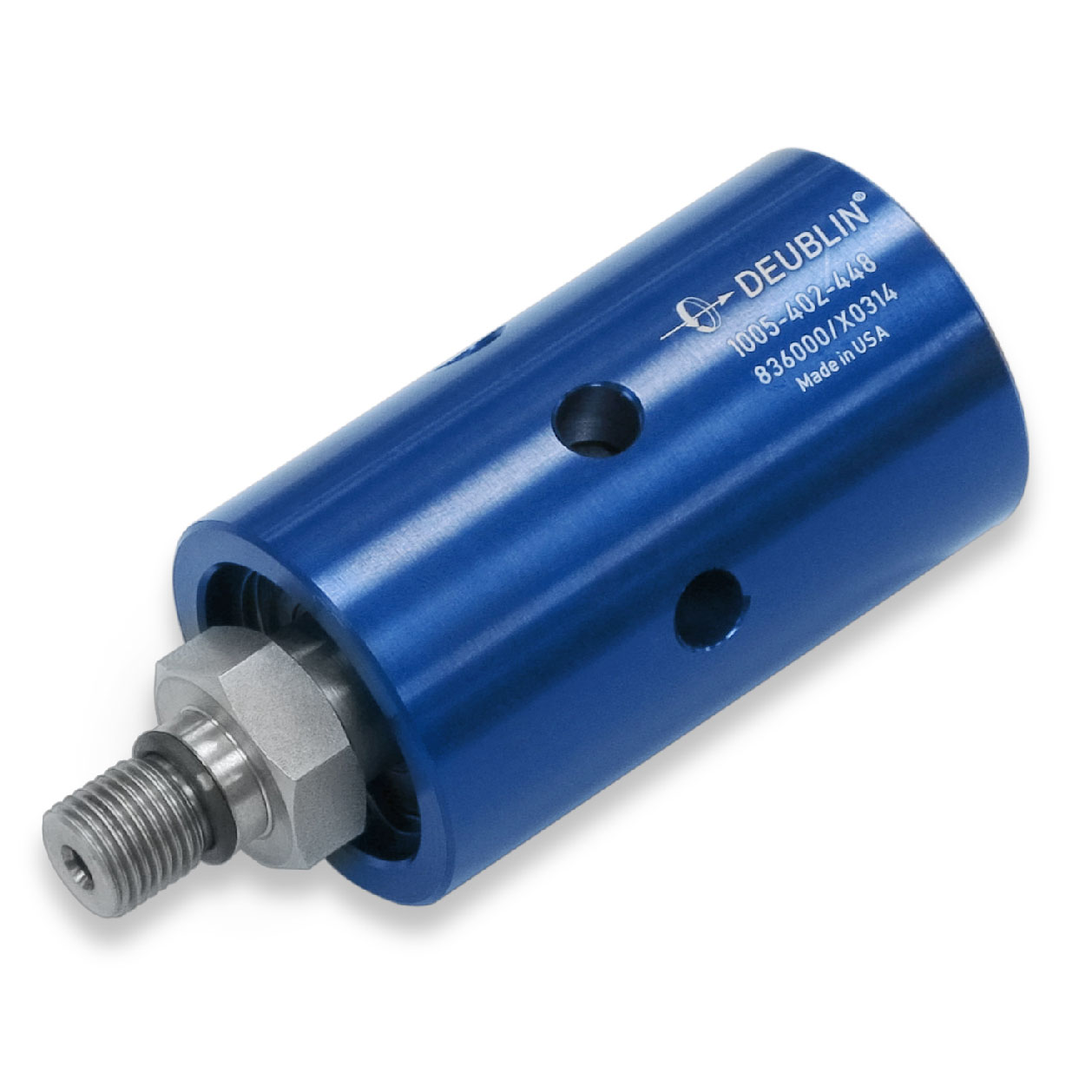

1005-402-448 | 1/8"-27 NPT | M10x1 LH, 10.994 mm pilot | M10x1 LH, 0.433" pilot | 80 mm | 3.15" | 34 mm | 1.339" |
103.4 bar Taladrina |
1500 PSI Taladrina |
12000 RPM |
|
|
1005-402-401 | 1/8"-27 NPT | M10x1 RH, 11 mm pilot | M10x1 RH, 0.433" pilot | 80 mm | 3.15" | 34 mm | 1.339" |
103.4 bar Taladrina |
1500 PSI Taladrina |
15000 RPM |
|
1005-560-568 | 1/8"-27 NPT | M10x1 RH | 71.5 mm | 2.815" | 28.4 mm | 1.118" |
69 bar Taladrina 69 bar Agua |
1000 PSI Taladrina 1000 PSI Agua |
3500 RPM | |
|
|
1005-560-561 | 1/8"-27 NPT | 1/8"-27 NPT RH | 71.4 mm | 2.811" | 28.3 mm | 1.114" |
69 bar Taladrina 69 bar Agua |
1000 PSI Taladrina 1000 PSI Agua |
1500 RPM | |
|
1005-605-454 | G 1/8"-28 | M10x1 RH, 11 mm pilot | M10x1 RH, 0.433" pilot | 71 mm | 2.795" | 29.5 mm | 1.161" |
10 bar Aire 69 bar Aceite Hidráulico -0.95 bar Vacío |
150 PSI Aire 1000 PSI Aceite Hidráulico -13.75 PSI Vacío |
3500 RPM |
|
|
1005-560-561 | 1/8"-27 NPT | 1/8"-27 NPT RH | 71.4 mm | 2.811" | 28.3 mm | 1.114" |
69 bar Taladrina 69 bar Agua |
1000 PSI Taladrina 1000 PSI Agua |
1500 RPM | |
|
|
1005-605-454 | G 1/8"-28 | M10x1 RH, 11 mm pilot | M10x1 RH, 0.433" pilot | 71 mm | 2.795" | 29.5 mm | 1.161" |
10 bar Aire 69 bar Aceite Hidráulico -0.95 bar Vacío |
150 PSI Aire 1000 PSI Aceite Hidráulico -13.75 PSI Vacío |
3500 RPM |
|
|
1005-560-568 | 1/8"-27 NPT | M10x1 RH | 71.5 mm | 2.815" | 28.4 mm | 1.118" |
69 bar Taladrina 69 bar Agua |
1000 PSI Taladrina 1000 PSI Agua |
3500 RPM |
